Cost basis labels: published-rate usage value, subscription value and metered usage kept apart by vivekchand · Pull Request #5975 · vivekchand/clawmetry

vivekchand · 2026-09-14T06:06:36Z

Factory requirement (REQ-OBS-CEA-025, written before the code): https://factory.8090.ai/project/b415065f-ab2f-4f53-8864-0c009fd098cb/requirements/950d4687-45cc-45a8-9d58-0c0d82fd5d9b
Child of Cost and Efficiency Analytics. Seven criteria are mirrored into docs/acceptance_criteria.json, and each is cited by a test.

Merge order: branched off main, not stacked. #5959 (price book, #5936) is a conceptual dependency only. This PR defines the "contract rate" label and the evidence it needs (a rate version), and nothing produces that label yet. The two PRs share no files except CHANGELOG.md, docs/acceptance_criteria.json and docs/ac_coverage_baseline.json, which are additive; on a conflict, keep both sides and regenerate the baseline. No new HTTP route, so no cloud_route_policy entry or cloud PR is needed.

Review fixes (`79c7121`)

The review found AC-OBS-CEA-025.1 marked met while two live screens still printed unlabelled costs.

Usage tab session cost chart and table. loadUsage() kept cbd.top10 and dropped the provenance. The top10[].cost_usd entry now travels with the rows. The canvas bars get a caption ("Bar values and the Cost column: published rates"), and the Cost column heading gets the badge. An unknown cost reads "not available", not $0.0000.
Flow brain panel per-call list. Each call now carries a numeric cost_usd: null when the call had tokens but no price, so it reads "not available". The list is labelled once, under calls[].cost_usd, with a "Cost per call: published rates" heading. The colour thresholds are now checked largest first, so red is reachable.
AC-OBS-CEA-025.1 narrowed in the Factory requirement (tracked edit) and in the mirror, to exactly the figures that carry a label:
- Overview spend tile.
- Usage period cards, Cost Breakdown table and coverage banner.
- Both Top Sessions by Cost tables and the session cost chart.
- Brain cost card and per-call list.
- Snapshot cost slice.
The Usage tab's other cost cards and the Overview hero chip are now an explicit non-goal and are listed under Remaining. They are no longer claimed.

Why

Users ask whether a cost figure is an estimate or a bill, and the dashboard could not say.

Labels describe arithmetic, not money. Nearly every figure is recorded tokens priced at a provider's published rate, or the runtime's own per-call cost, which runtimes also compute from published rates. The shared badge said "derived". That is true of the arithmetic but says nothing about whether the number was invoiced.
Zero-bill claims. With a subscription detected, the Usage tab said "Your actual out-of-pocket spend is $0" and "$0 billed to you". The info icons said "actual incremental cost is $0". The Overview hero said "free on your plan". ClawMetry cannot see a plan fee, included allowance or overage, so each of those is a claim about a bill it has never seen.
Unlabelled figures. The Flow brain panel's cost was a pre-formatted string with no basis.

What

Vocabulary. clawmetry/cost_basis.py (new, short module) adds a financial basis that rides beside the existing provenance basis inside the same entry. The provenance wire shape is unchanged: consumers that ignore the new fields keep working.

The bases:
- published_rate: usage value at published rates. This covers a runtime-reported cost too, whose source is named in rate_source.
- contract: expected contract spend. It needs a recorded rate_version.
- allocated_actual: allocated actual spend. It needs a recorded ledger_ref.
- unknown.
A bill-shaped label without its evidence becomes an unknown entry with the reason. stamp() then nulls the figure, so an unevidenced "actual spend" cannot reach a screen as a number. Nothing produces contract or allocated_actual today.
Billing route is subscription, metered or unknown.
- Subscription-covered value is labelled "value, not an extra bill".
- The remainder is metered only when a metered runtime was actually detected, otherwise "not detected".
- plan_fee_usd is None, labelled unknown, never 0.0.

Surfaces.

Surface	Change
`/api/usage` (`routes/usage.py`)	Every cost entry carries the financial basis and rate source. The coverage split carries its billing routes, and routing savings are labelled as a published-rate counterfactual.
Hosted snapshot (`clawmetry/sync.py`)	The same labels on `dailyUsage` and on both branches of the spending triple (live, and the stale state fallback).
`/api/sessions/cost-breakdown` (`routes/sessions.py`)	Every figure is labelled, on both the fast and the transcript paths. Rows priced at the blended per-token rate make the session figures `estimated`, with a count.
Usage session cost chart and table (`app.js` `loadUsage` / `renderSessionCostChart`)	The breakdown's basis is kept: a caption above the canvas bars, a badge on the Cost column, and "not available" for an unknown cost.
Flow brain panel (`routes/components.py`)	New numeric `today_cost_usd` with provenance, next to the legacy string. Calls that carried tokens but no price make the total a labelled floor. If nothing could be priced it is "not available", not $0.00. The per-call list carries `cost_usd` under a `calls[].cost_usd` entry, rendered as "Cost per call: published rates".
Badge (`clawmetry/static/js/provenance.js`)	Shows the financial words ("published rates"). It takes keyboard focus, and its `aria-label` carries the explanation. On `:focus-visible` one fixed tip on `<body>` shows the same text a mouse user gets from the title tooltip.
Usage banner, cards, info icon (`clawmetry/static/js/app.js`)	Included-in-plan value is shown apart from metered usage, or usage whose route was not detected. Each card has its basis badge. No $0-bill wording.
Overview	Info-icon and hero copy fixed: the hero says "included in your plan, not an extra bill" instead of "free on your plan".
Inventory	The subscription chip tooltip no longer says "Usage adds $0 extra".
`dashboard.css`	Financial-basis badge casing and the focus tip.

Verification

Regression guard, red before green. tests/test_cost_basis_labels.py has 18 tests.

How it tests: it walks the real payload builders, and it runs the shipped renderBillingCoverageBanner, _planLabel, renderSessionCostChart, loadBrainData and cmProv.badge out of app.js and provenance.js under node.
Red, original 15: copied onto origin/main at 658342f238 with only the new vocabulary module added, 12 of the 15 fail. The 3 that pass test the vocabulary alone.
Red, review-fix 3: the three tests added for the review fail on the previous head b2b438f5e6, checked in a separate detached worktree:
- test_the_usage_session_cost_chart_and_table_show_their_basis
- test_the_flow_brain_call_list_cost_is_labelled
- test_the_flow_brain_call_list_renders_its_basis
Green: all 18 pass on this branch. 61 pass together with test_provenance.py and test_provenance_render_coverage.py.

A guard that never ran now runs. tests/test_provenance.py and tests/test_provenance_render_coverage.py were named in no workflow, and main is at 66 unbadged renders against their ceiling of 63. This PR:

wires both into the MOAT verifier job, with the new file;
converts dead fallbacks, reaching 62;
lowers UNBADGED_CEILING to 62, which is downward only.

docs/ci_test_coverage_baseline.json tightened (unlisted 920 to 917).

Other gates: check_ac_coverage.py --check OK at 124/194 on the rebased branch. gen_module_map.py --check OK. check_py39_annotations.py OK. node --check passes on both JS files.

Real dashboard in a browser, first pass. I ran this branch's dashboard.py with a scratch HOME (a Claude Max OAuth marker, so a subscription is detected), a scratch seeded DuckDB and a random port, and drove it with Chrome DevTools.

Overview tile: reads $0.59 with a published rates badge.
- With keyboard focus, the explanation sits 6px below the badge, fully in the viewport, not clipped.
- The page contains no "free on your plan", "billed to you" or "out-of-pocket".
Usage banner: "Usage included in Claude Max 20x. The figures below are usage value at published rates ... this value is not an extra bill. ... ClawMetry cannot see your plan fee, included allowance or overages, so none of them are counted here."
Usage cards: "about $0.59 · published rates".
Flow brain panel: the cost card reads "$0.13 published rates".
Mixed and undetected banners are covered by the node-run tests rather than the browser, because a scratch HOME cannot fake a metered runtime and a subscription at once without editing the detector.

Real dashboard in a browser, review-fix pass. This time the scratch HOME was seeded with today's OpenClaw transcript: one priced call ($0.0042) and one call on a model the runtime did not price. I ran dashboard.py on a random port and checked it in Chrome.

Usage tab: the caption reads "Bar values and the Cost column: published rates". The table header reads "Session Tokens Cost published rates Model Date", and the row reads sess-live-1 2K $0.0042.
Flow brain panel: the list is headed "Cost per call: published rates", with rows $0.0042 and $0.0006 (the second is ClawMetry's price-table fallback). The badge has tabindex=0, and its tip gives the formula, the window ("one assistant call"), the rate source and the source.
Over HTTP: /api/component/brain returns calls[].cost_usd with cost_basis=published_rate, and /api/sessions/cost-breakdown returns top10[].cost_usd labelled "published rates".

Remaining (not in this PR; #5937 stays open)

Other Usage tab cost cards. Each is served by its own endpoint, none of which carries a financial basis yet, so none shows a basis:
- Where the money goes
- Cost Forecast
- Cache Re-read Tax
- cache hit rate card
- Cost By Plugin / Skill
- Cost Comparison
- Spend Optimization
- Skill Cost Leaderboard
- Cost by Team
These are a non-goal in REQ-OBS-CEA-025, and the render ratchet keeps their count from growing.
Overview hero chip. It shows a cost with no basis and an unclear window, and it now carries the "included in your plan, not an extra bill" suffix. Its figure also differed from the tile's today figure in the first browser pass ($12.58 vs $0.59). That predates this PR and was not investigated.
Sessions tab transcript chips. The per-turn and per-tool cost chips come from _buildReplayEvent over several local and hosted transcript sources, so labelling them needs a transcript payload change on both sides. The Sessions-list chips in loadSessions() write to #sessions-list, which no template renders, so they were left untouched rather than claimed.
Contract spend and actual spend. Needs the price book (Price book contract: negotiated rates, Azure OpenAI deployment aliases, effective dates #5959 / Pricing: custom price book for negotiated rates + Azure OpenAI deployment aliases #5936) plus a valuation engine, and an invoice or ledger ingest. The labels and their evidence rule exist; no figure uses them.
Hand-check against every source, and a cache and window-boundary audit. The refinement asks for cache tokens not counted twice, and for late usage kept consistent across local, snapshot and hosted views. Not done here.
Budgets (Attribution: project + user tags and per-project budgets (burn vs budget) #5941) and the Cost Optimizer (Cost Optimizer: 33s spinner on cold load, debug label and unlabelled figures #5934) choosing a basis. They render through the same formatter and inherit the labels; their thresholds are unchanged.
Hosted dashboard. It renders the OSS app.js, so the corrected copy and the snapshot's labels reach it with the next pin. The hosted Usage interceptor's billingCoverage carries no provenance, so the split figures render without a badge there. The same applies to hosted brain and cost-breakdown payloads that lack the new entries: they keep their legacy strings and invent no label. A cloud-side pass-through is a follow-up.
Badge tab stops (review note, not addressed). Every provenance badge, compact ones included, now takes tabindex=0, which can add many tab stops on dense tables.
Other unbadged money renders. 62 remain in app.js, held by the ratchet.

🤖 Generated with Claude Code

https://claude.ai/code/session_01Jm9d7s4fN55hN3YzQo75o9

8090-software-factory · 2026-09-14T06:08:07Z

✅ Drift Bot (ClawMetry): no drift detected

Drift Bot analyzed the changed files against this project's blueprints and requirements and found no drift.

github-actions · 2026-09-14T06:15:07Z

Visual diff

Comparing c5c84c81a8e0 (head) against the PR base branch.

44 of 70 comparison(s) flagged (>1% pixel diff).

View	Before	After	Diff
desktop overview	before	after	diff · 0.01%

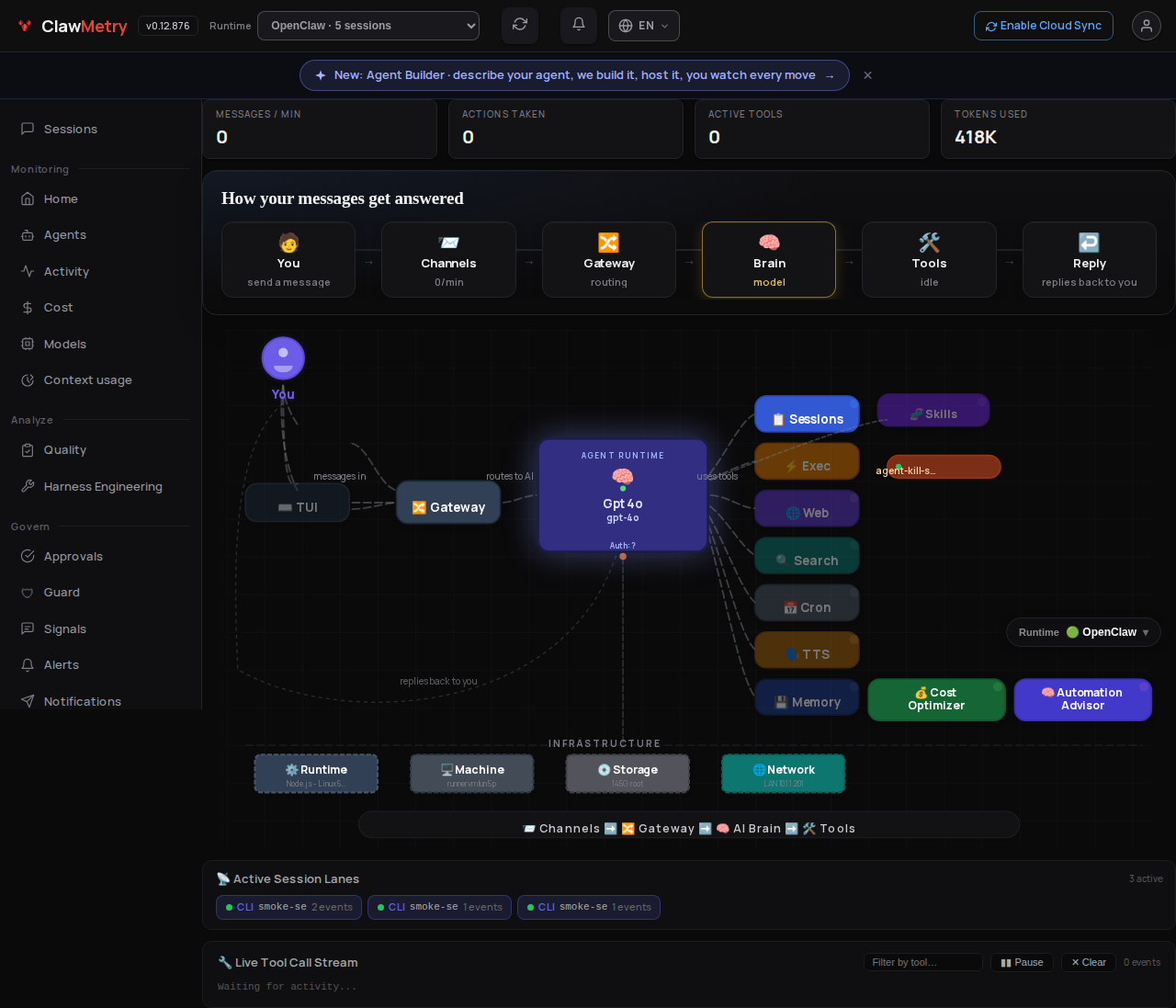

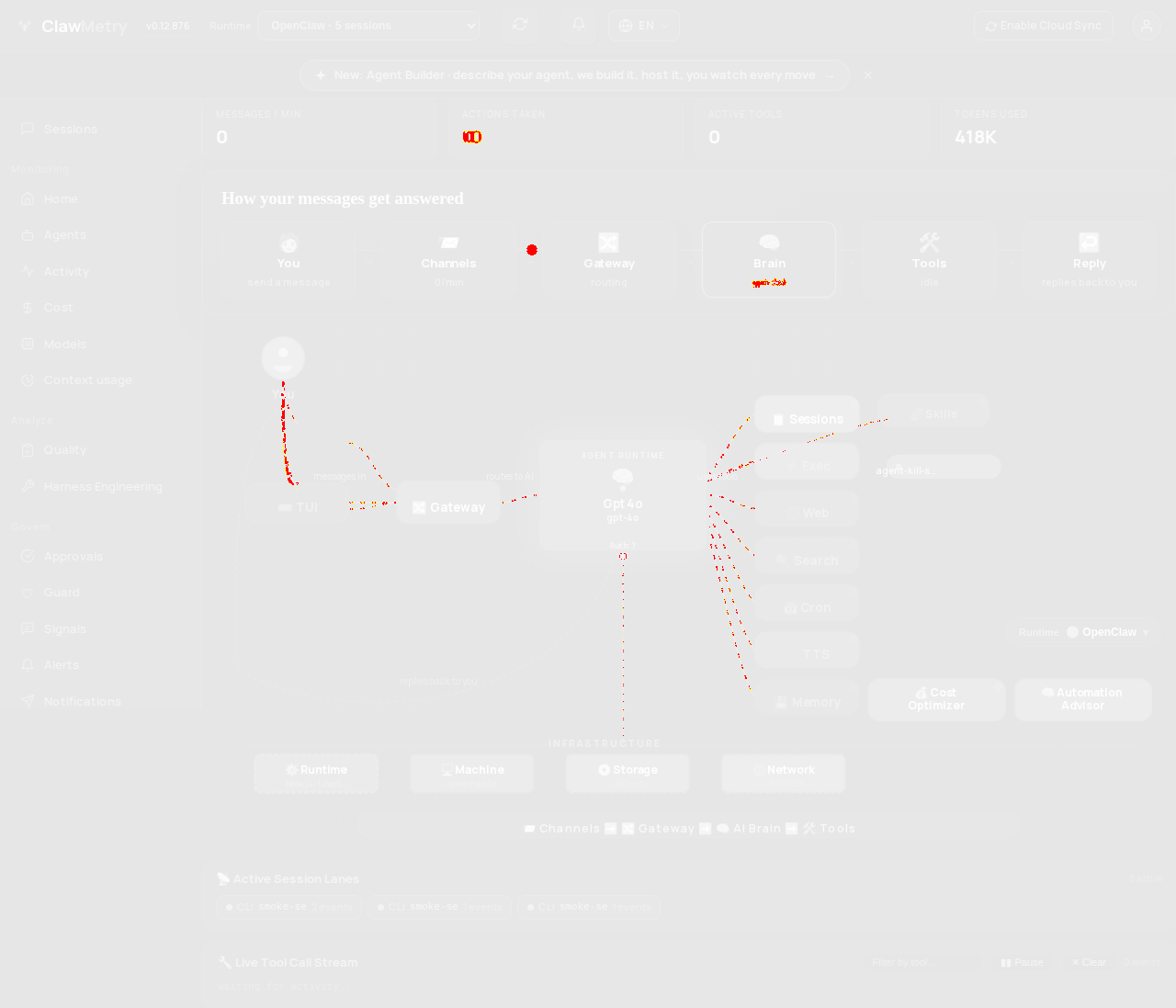

desktop flow	before	after	diff · 0.08%

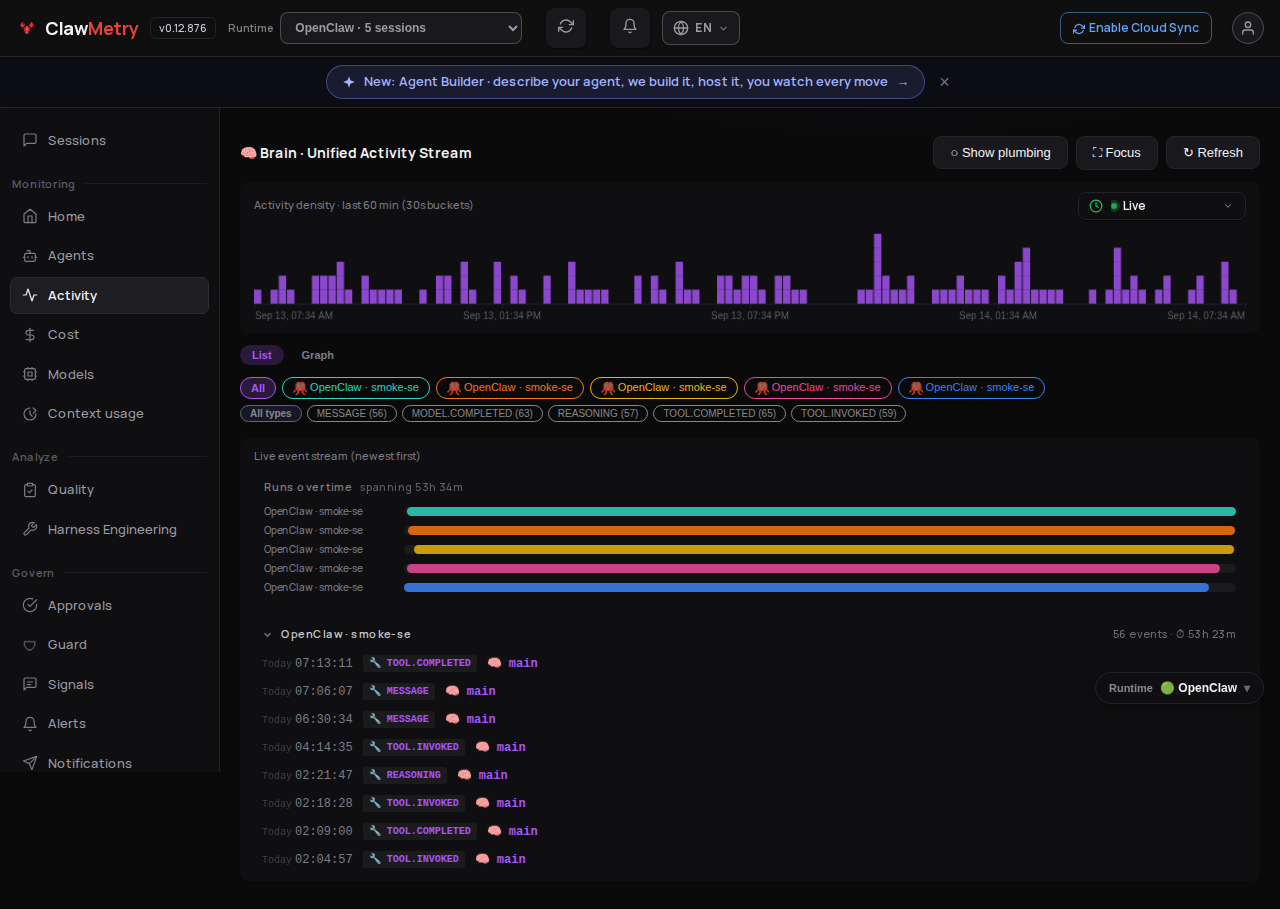

desktop brain ⚠️	before	after	diff · 100.00%
desktop usage ⚠️	before	after	diff · 100.00%
desktop crons	before	after	diff · 0.01%

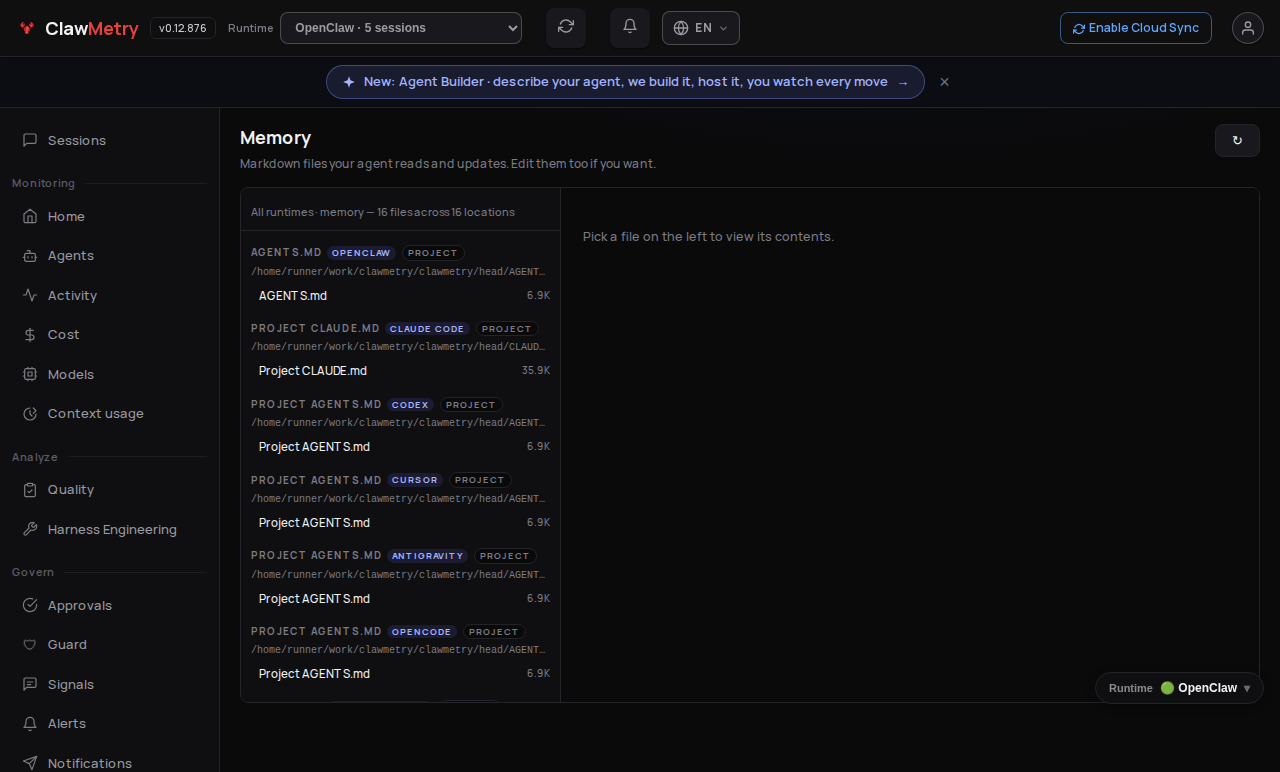

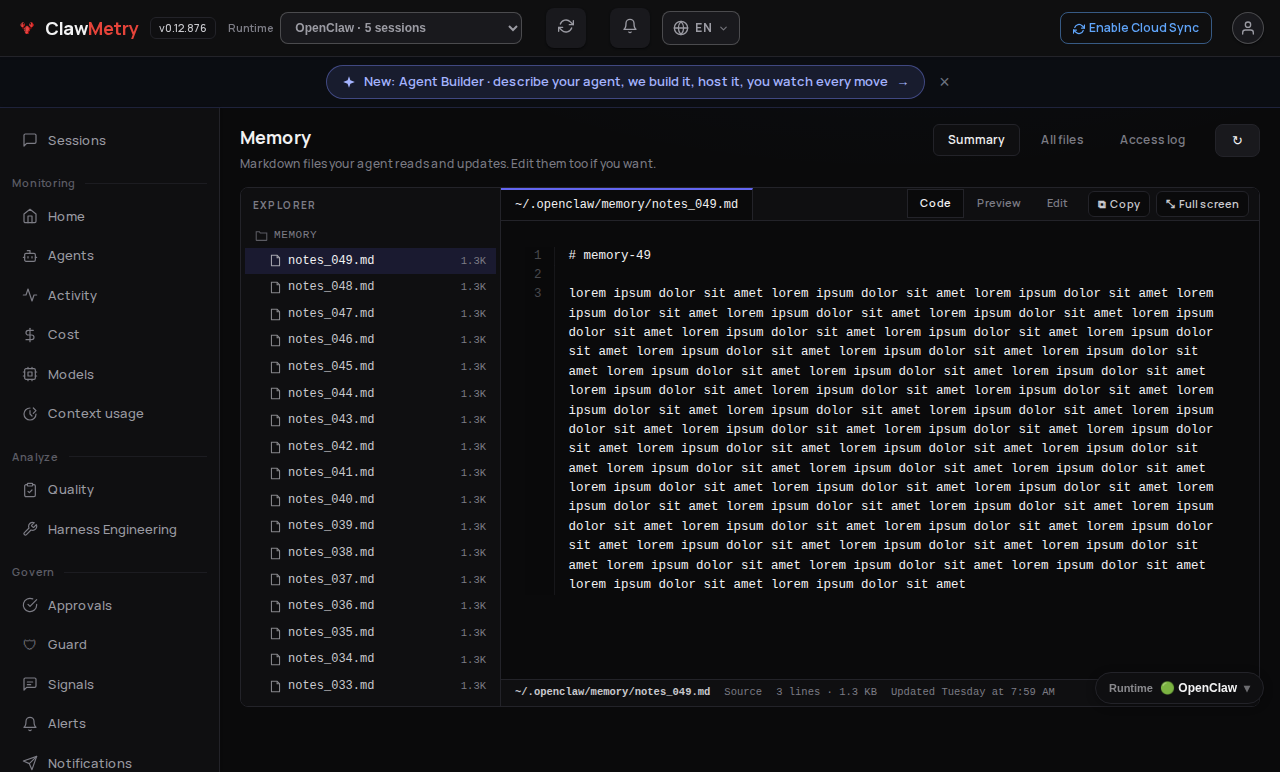

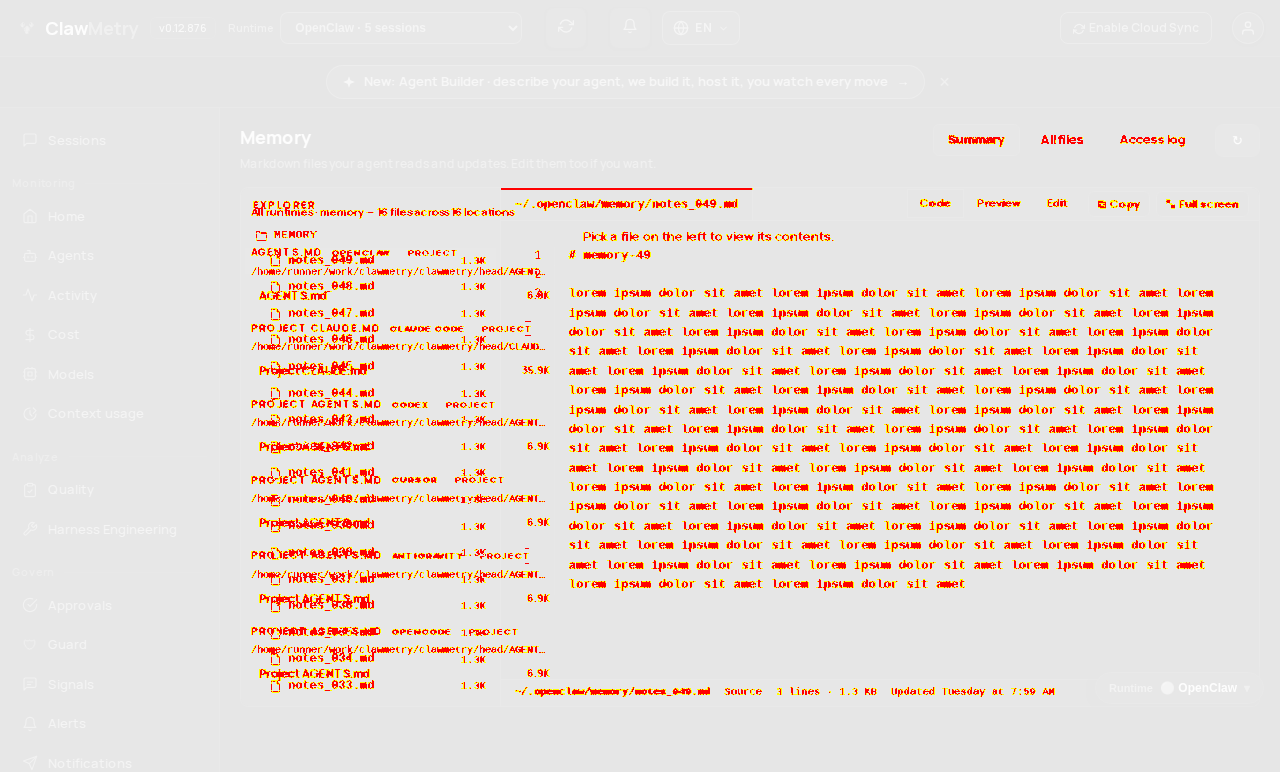

desktop memory ⚠️	before	after	diff · 4.63%
desktop security	before	after	diff · 0.18%
desktop subagents	before	after	diff · 0.02%
desktop transcripts ⚠️	before	after	diff · 100.00%

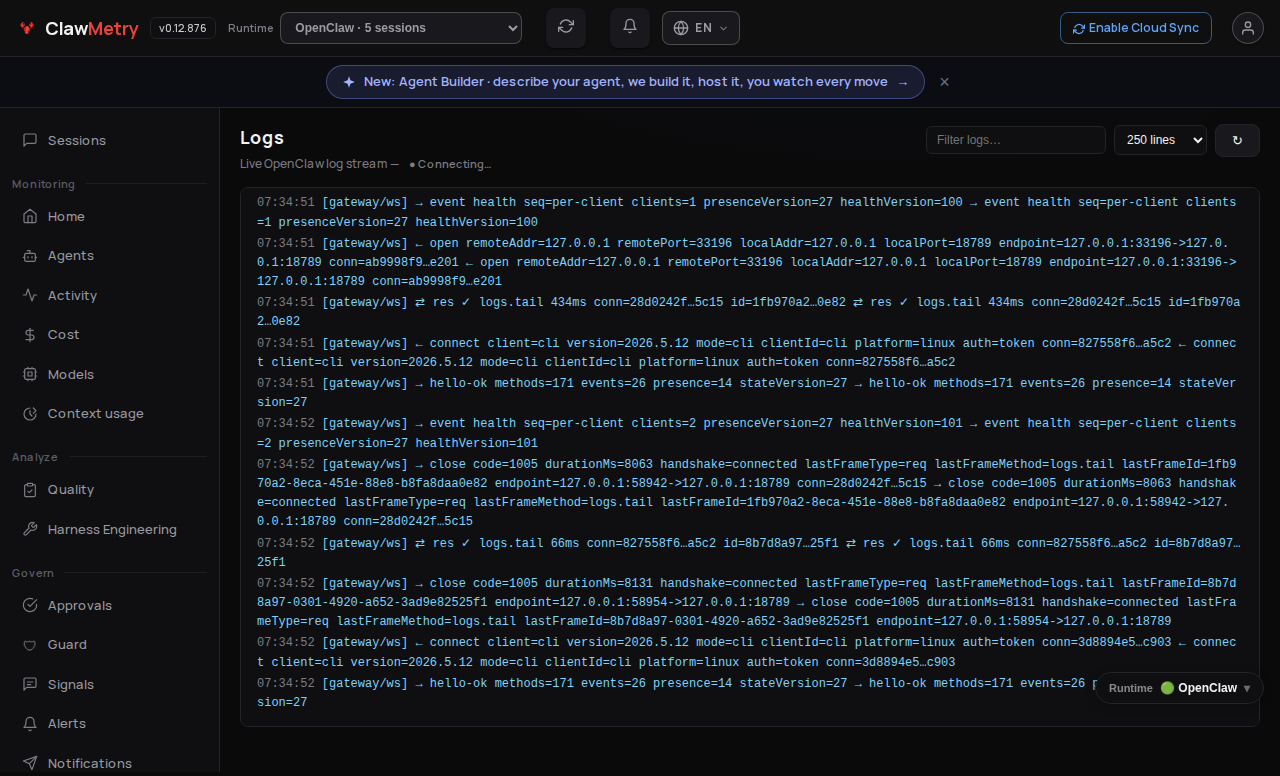

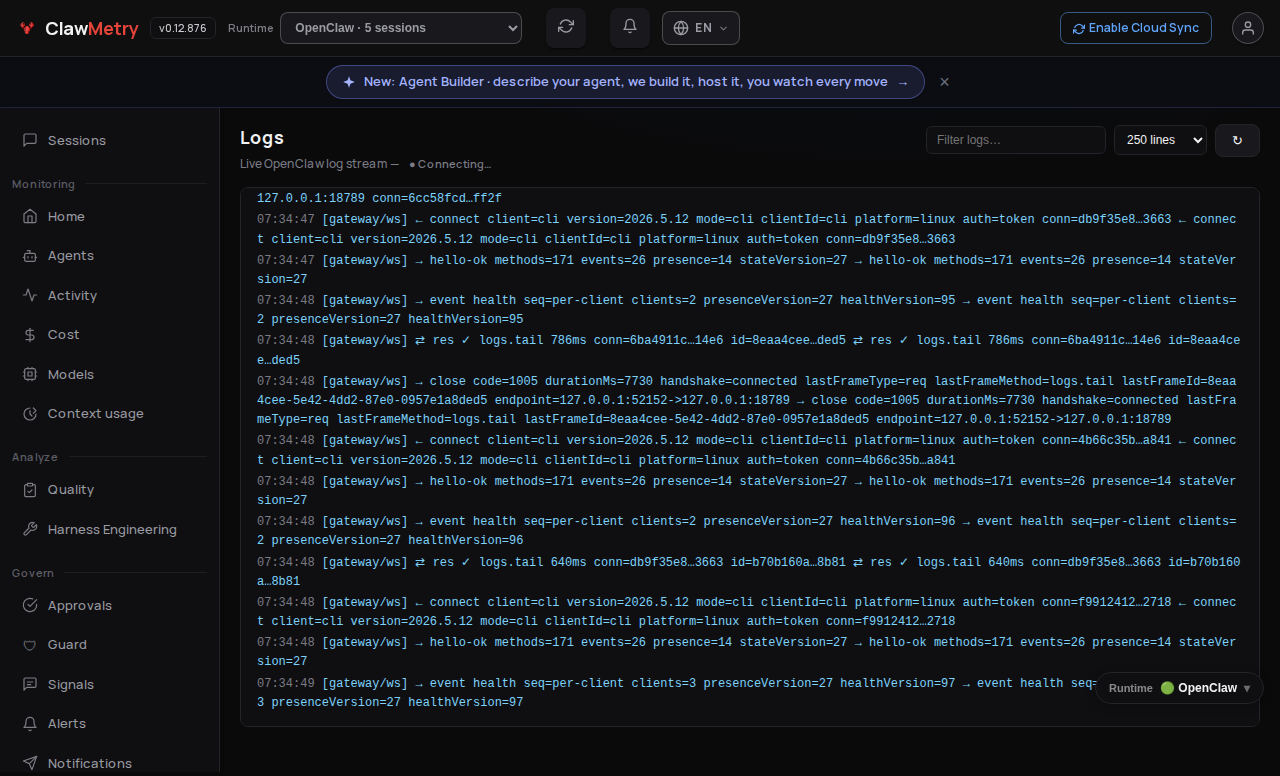

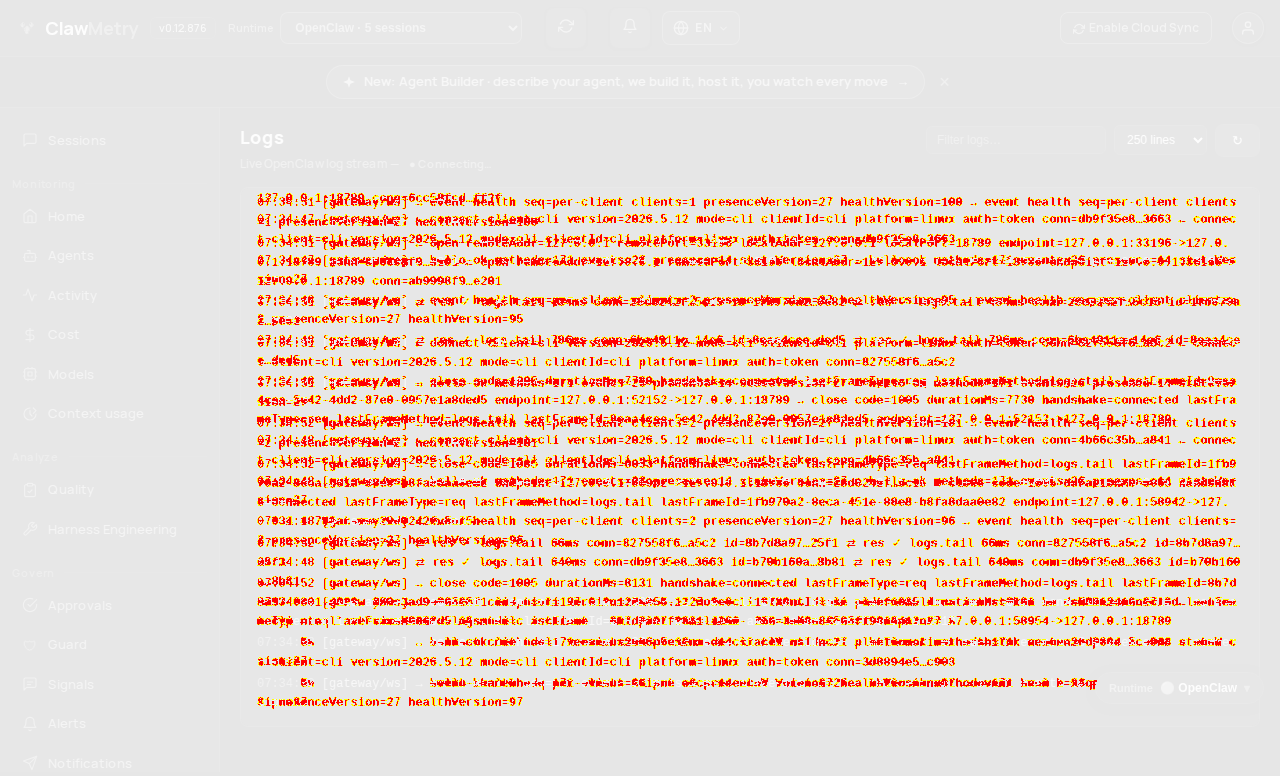

desktop logs ⚠️	before	after	diff · 7.28%
desktop skills	before	after	diff · 0.01%

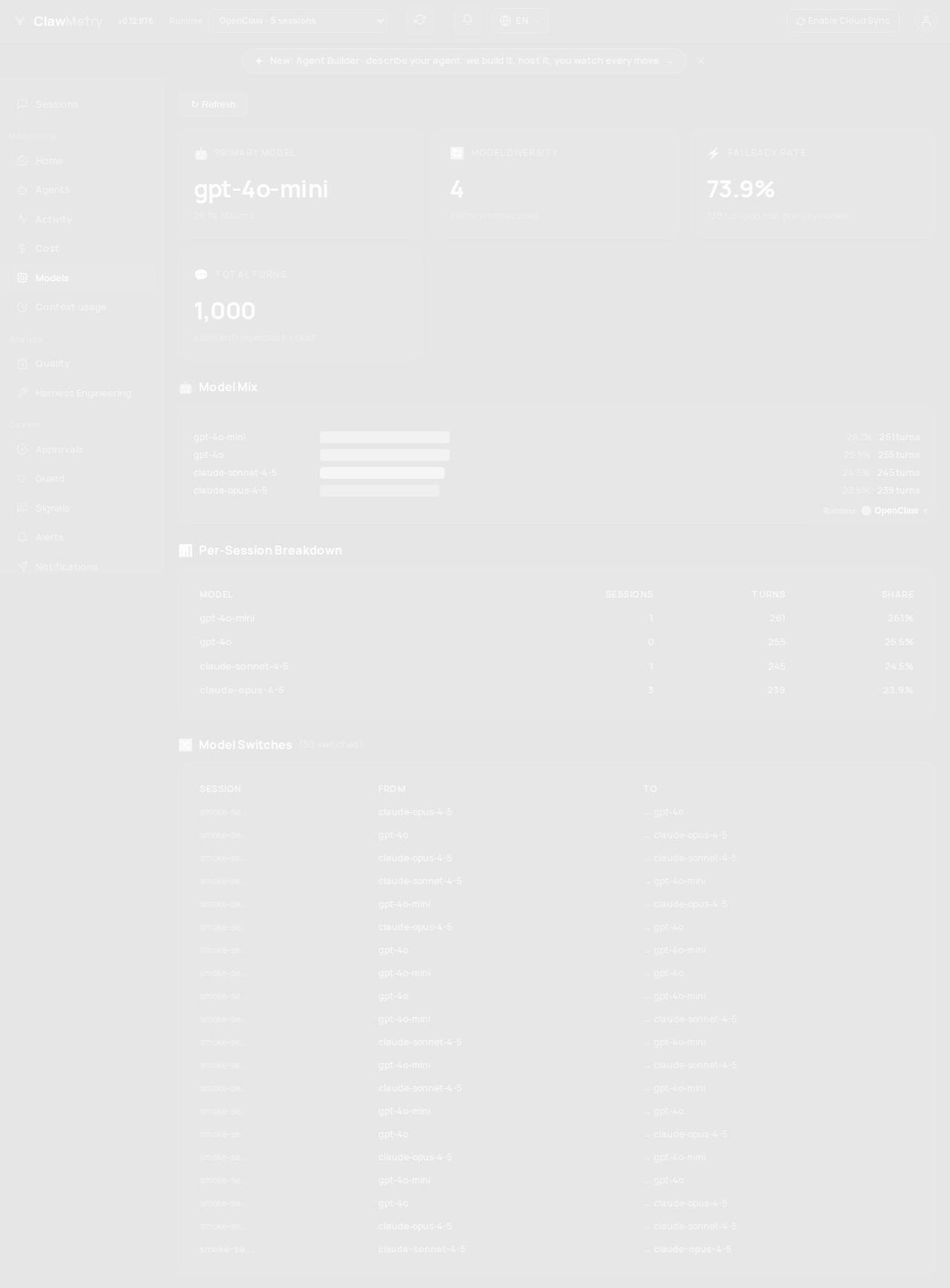

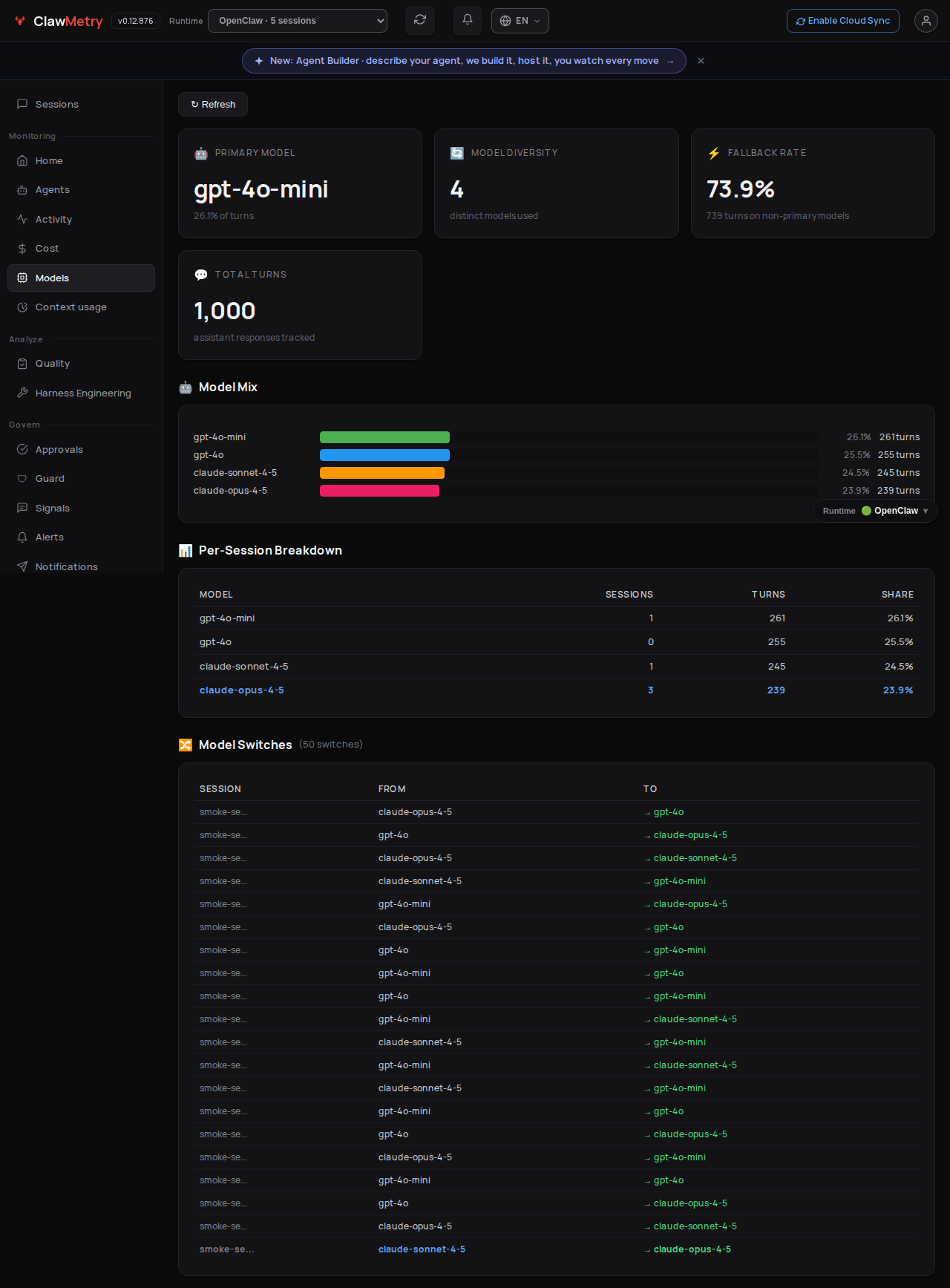

desktop models	before	after	diff · 0.00%

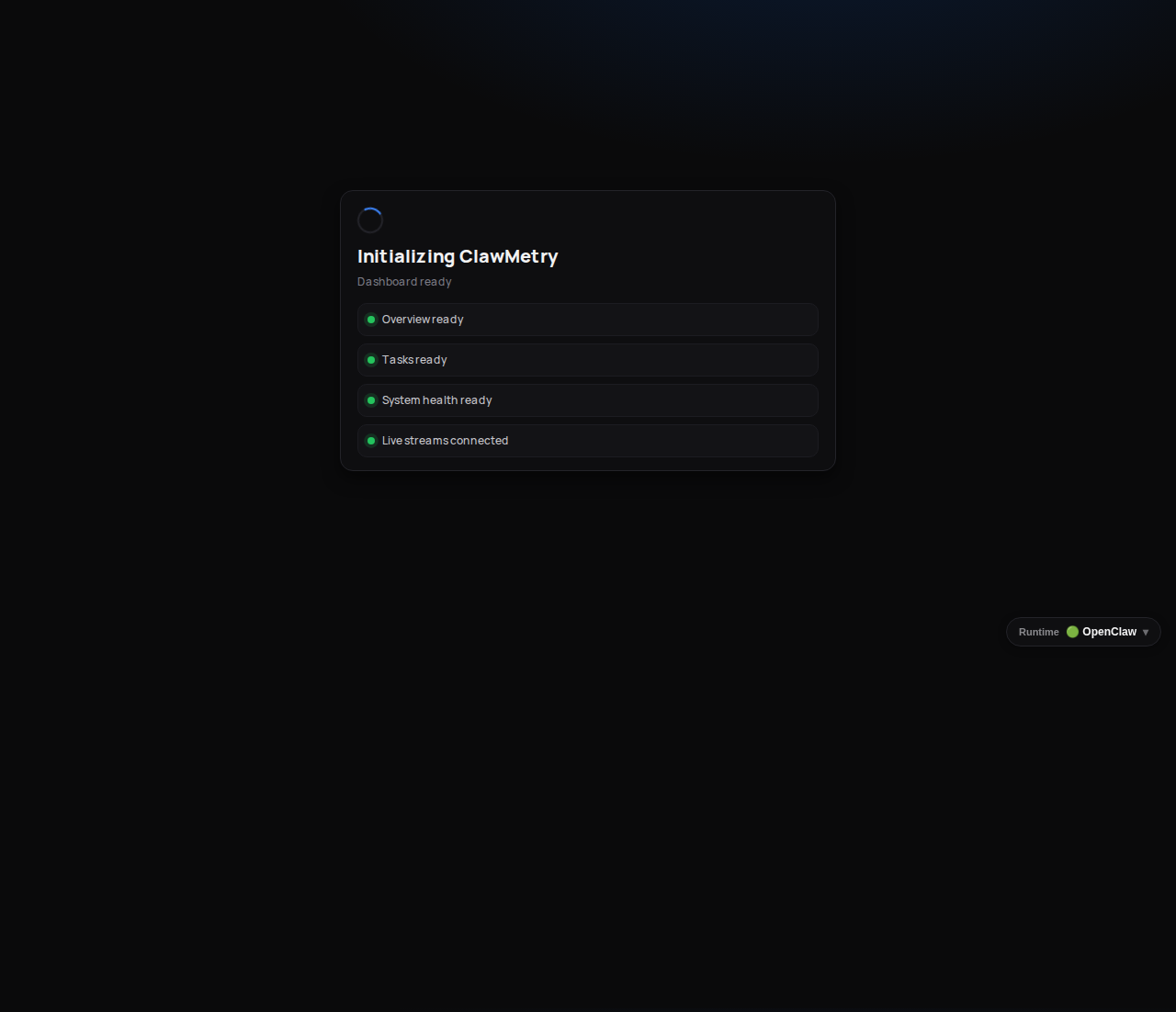

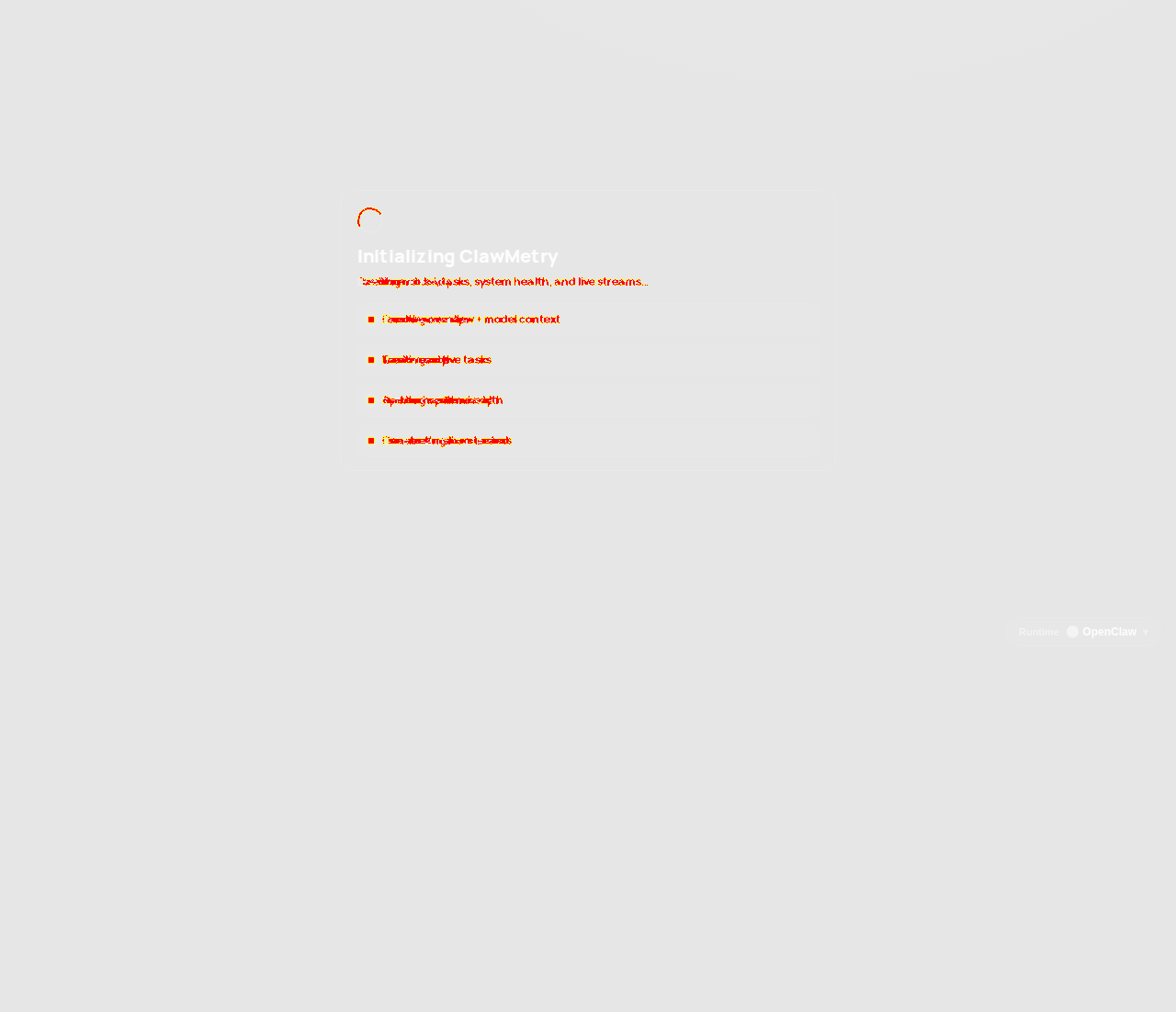

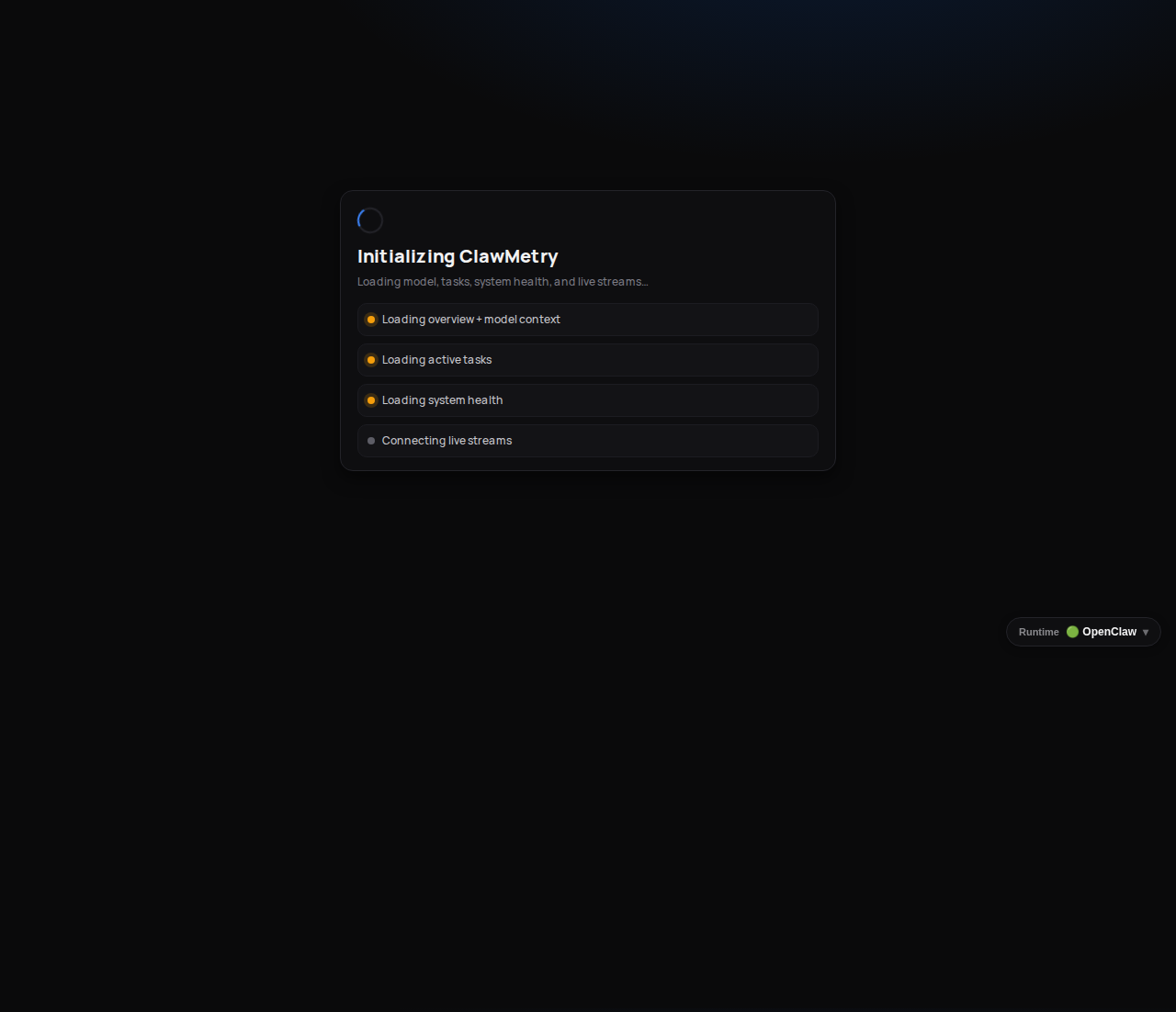

desktop approvals	before	after	diff · 0.26%

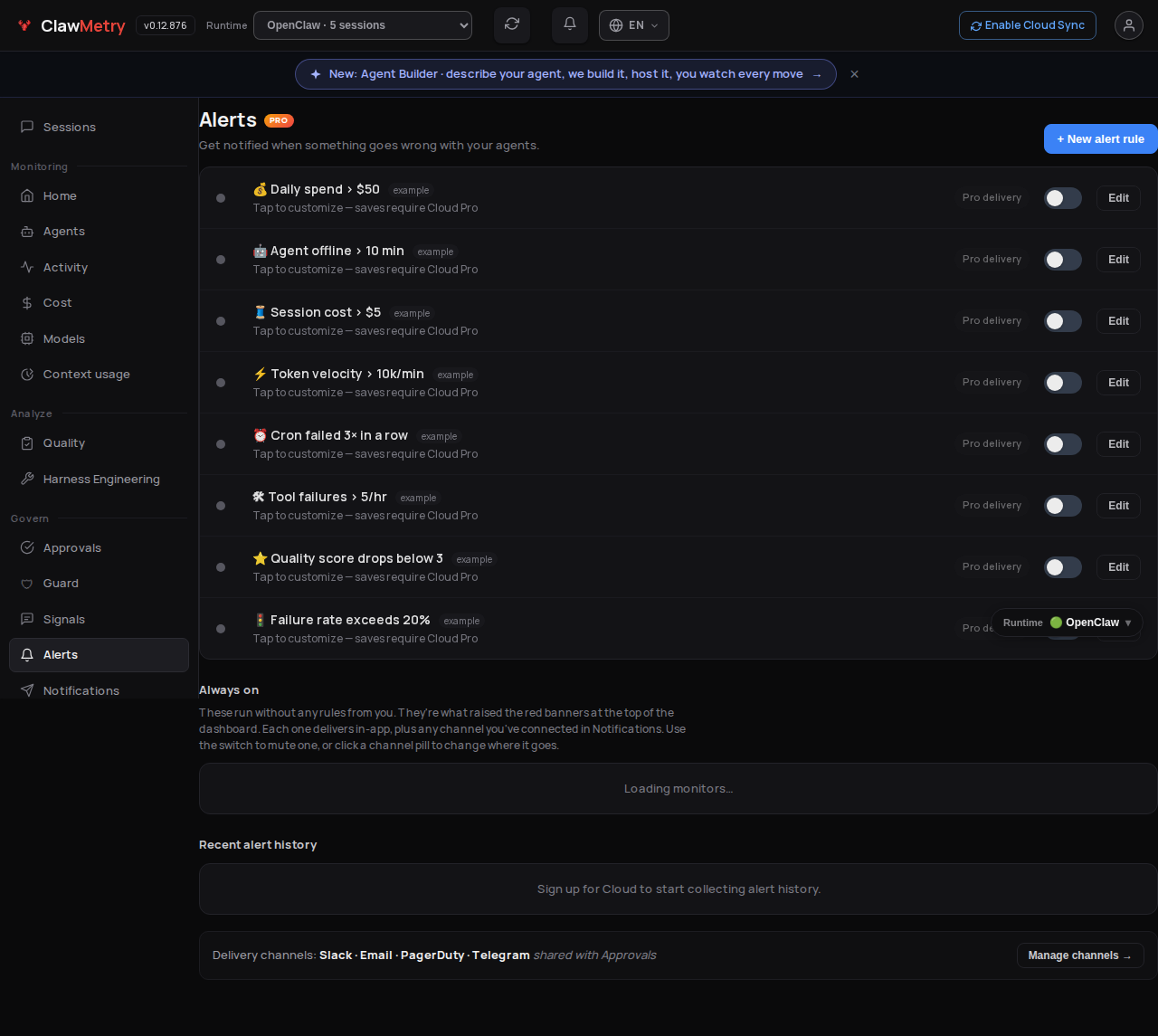

desktop alerts ⚠️	before	after	diff · 100.00%

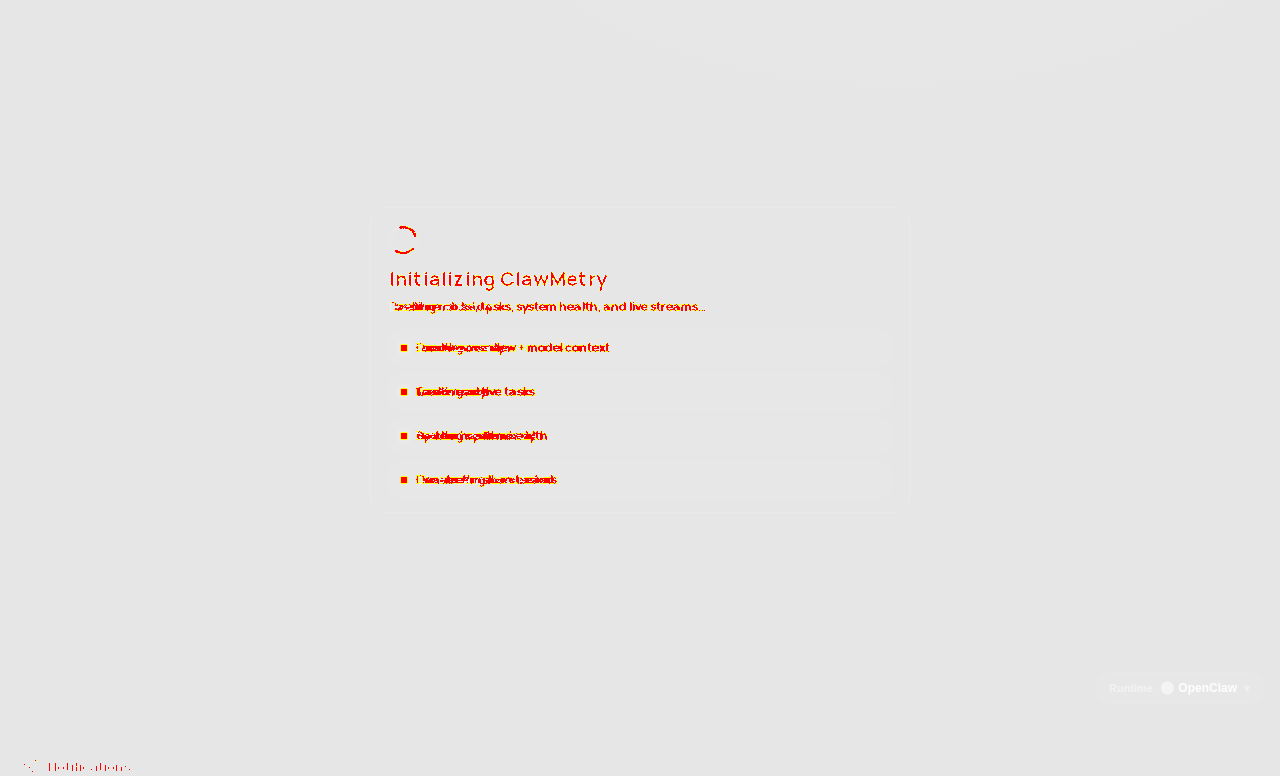

desktop notifications	before	after	diff · 0.47%
desktop limits ⚠️	before	after	diff · 100.00%

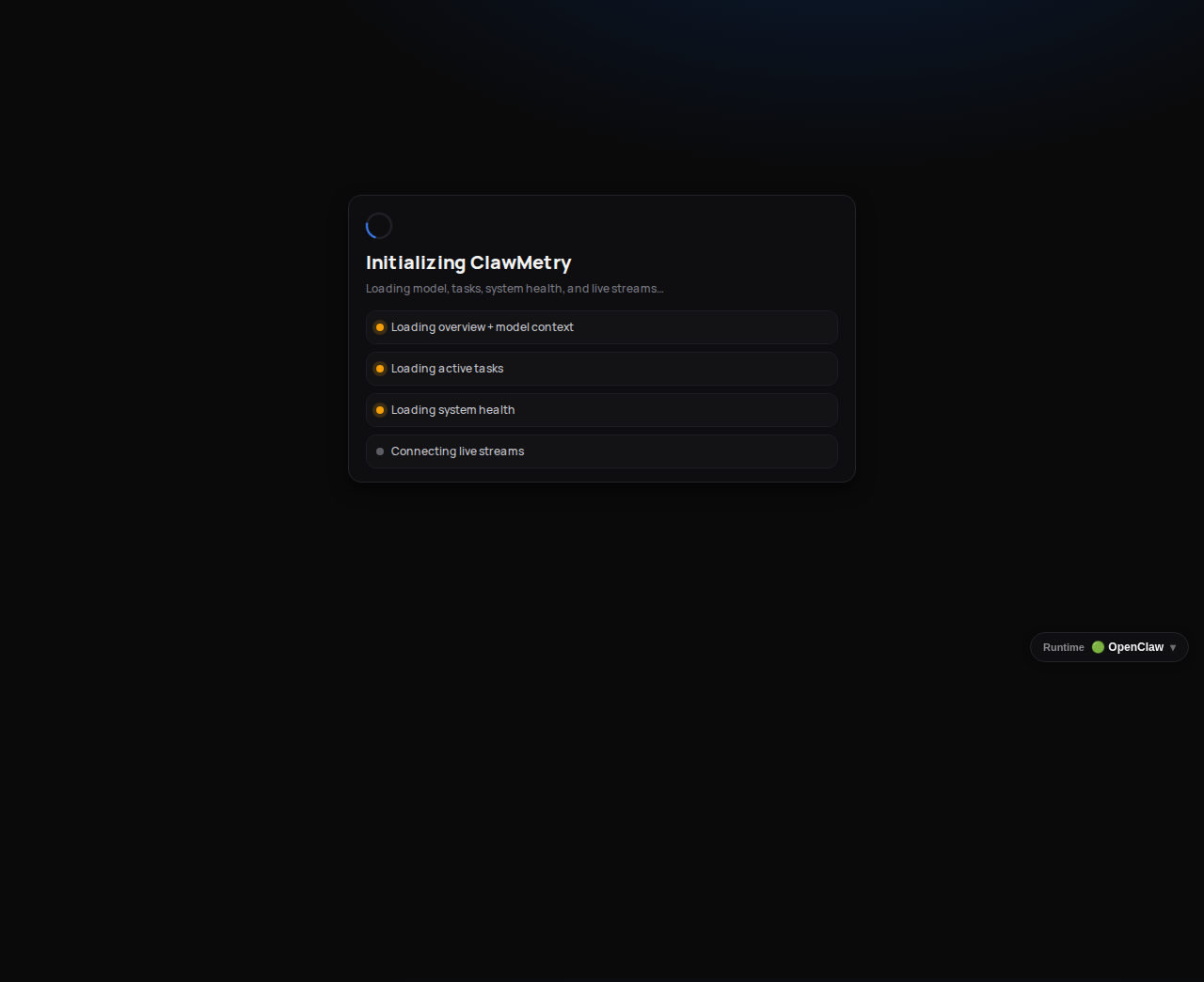

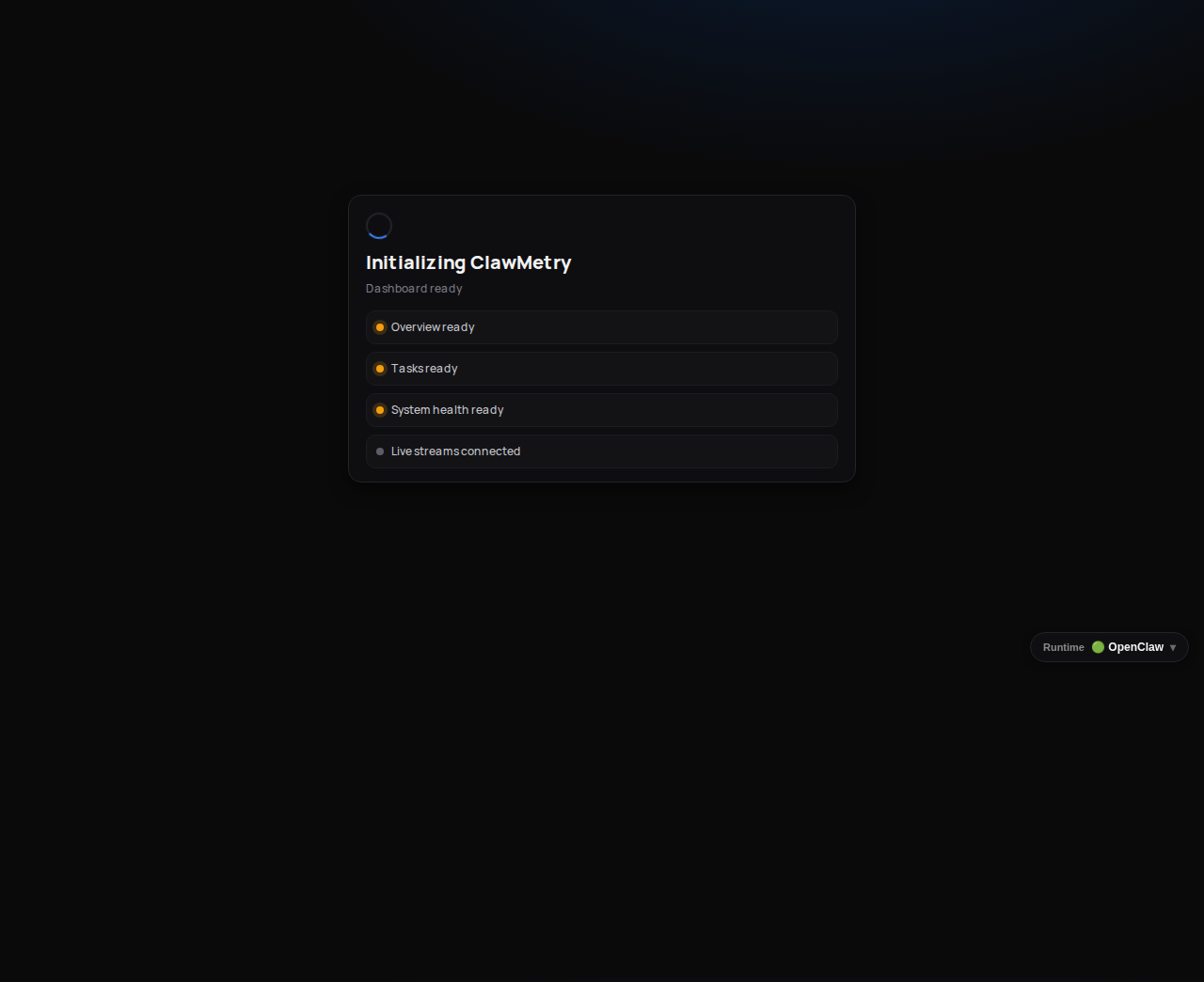

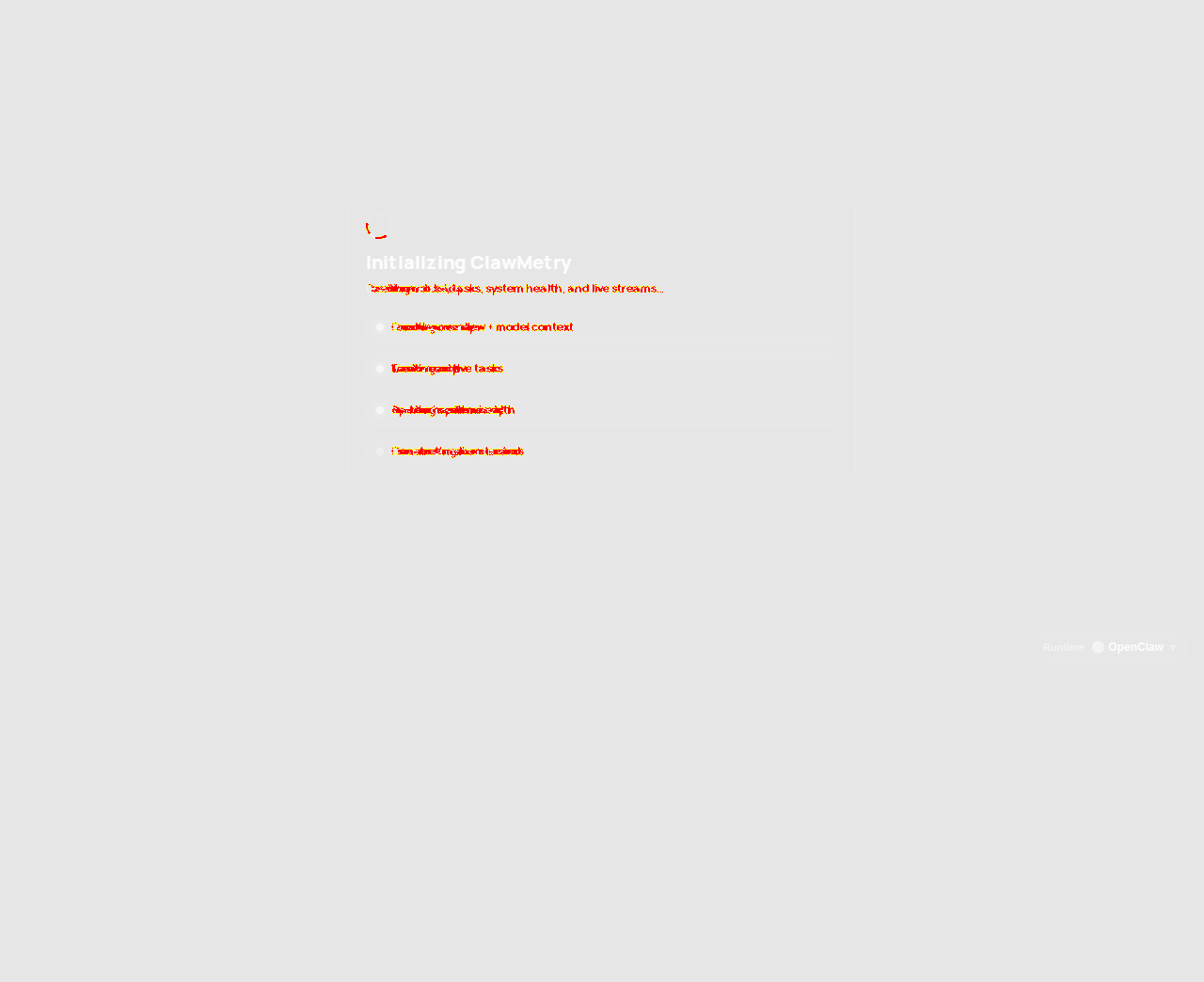

desktop history	before	after	diff · 0.27%

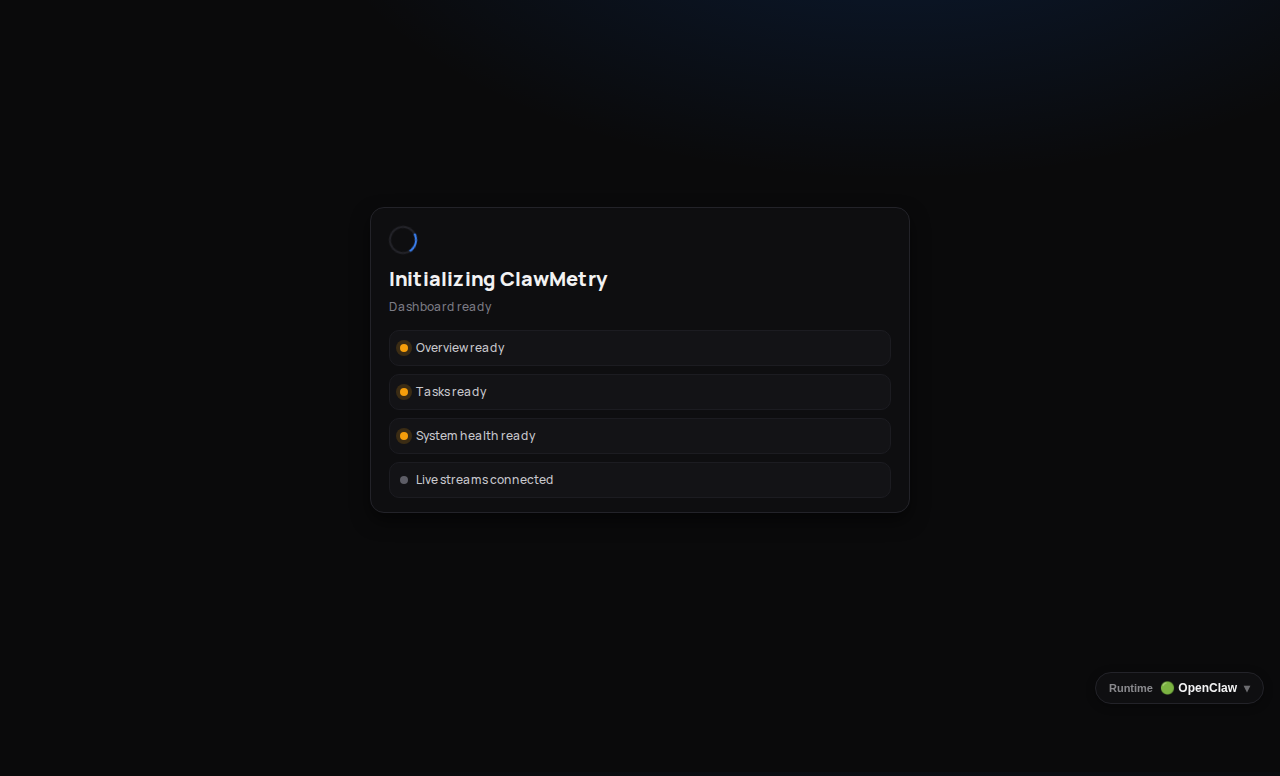

desktop channels ⚠️	before	after	diff · 100.00%

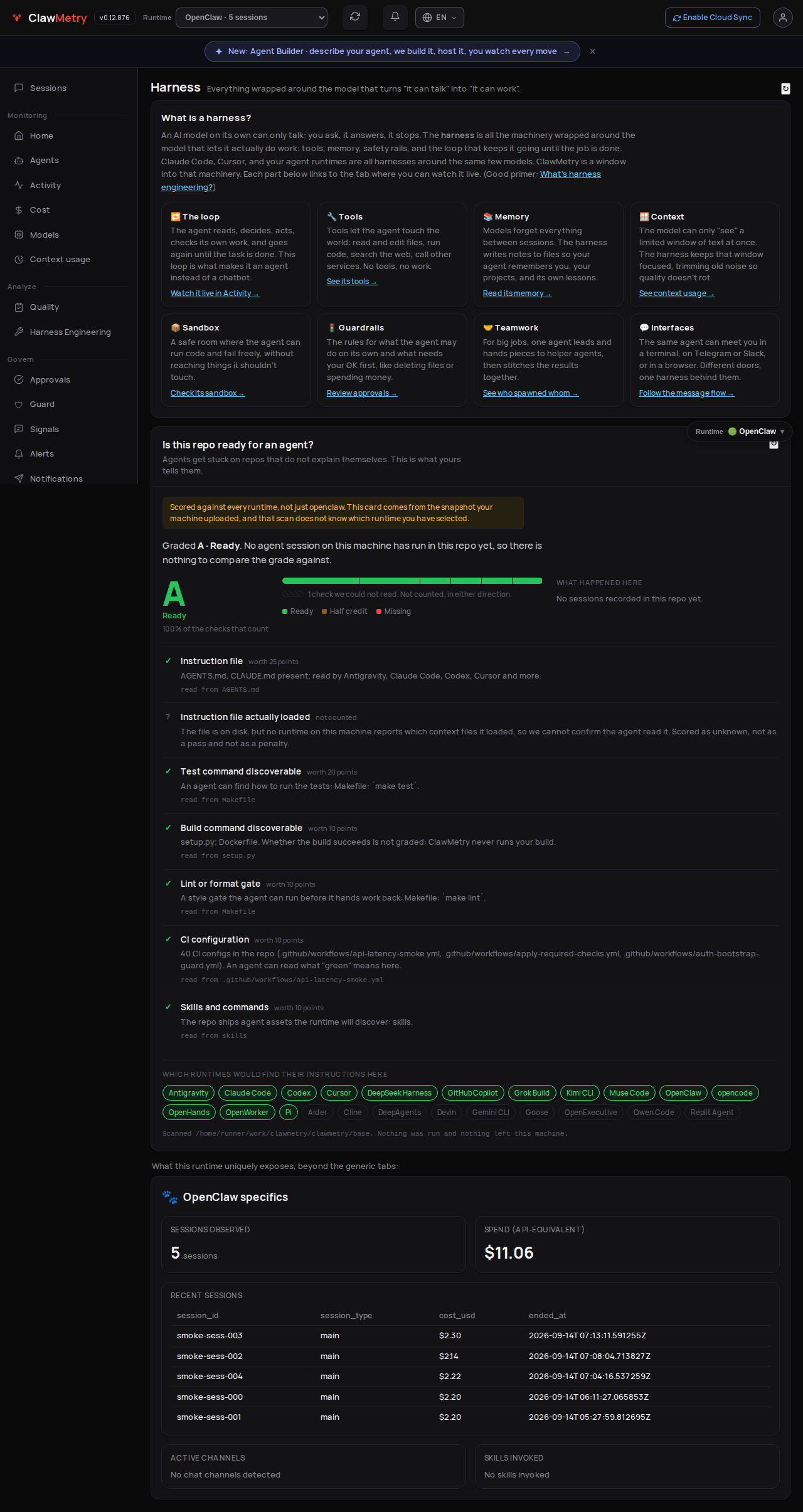

desktop harness ⚠️	before	after	diff · 100.00%
desktop inventory ⚠️	before	after	diff · 100.00%

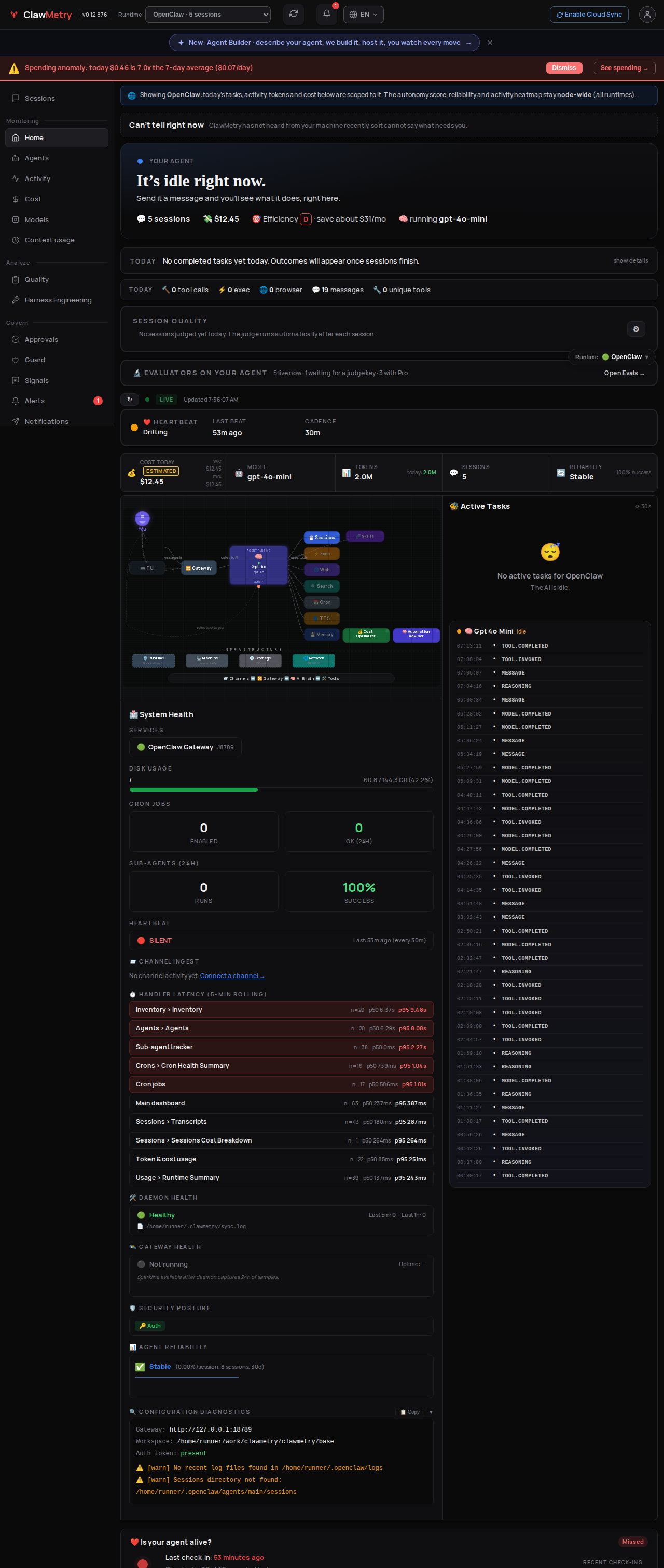

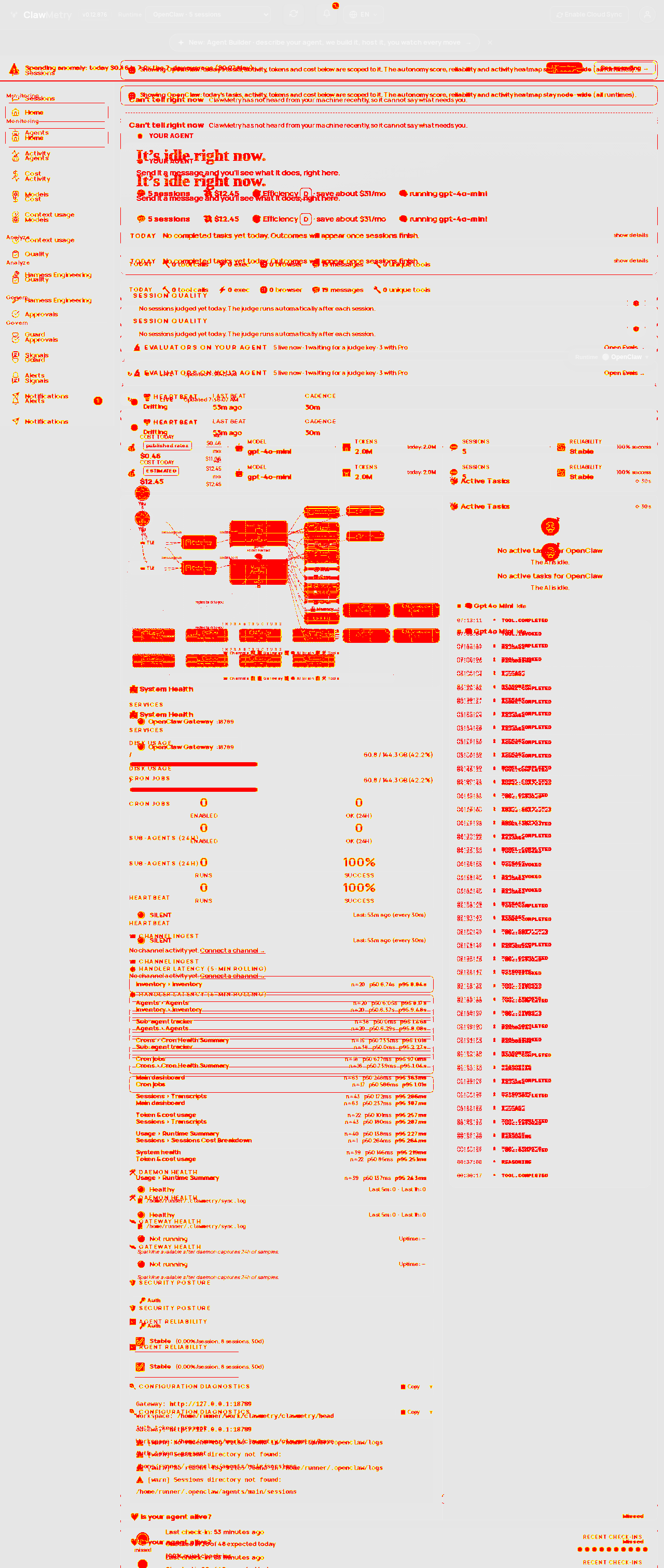

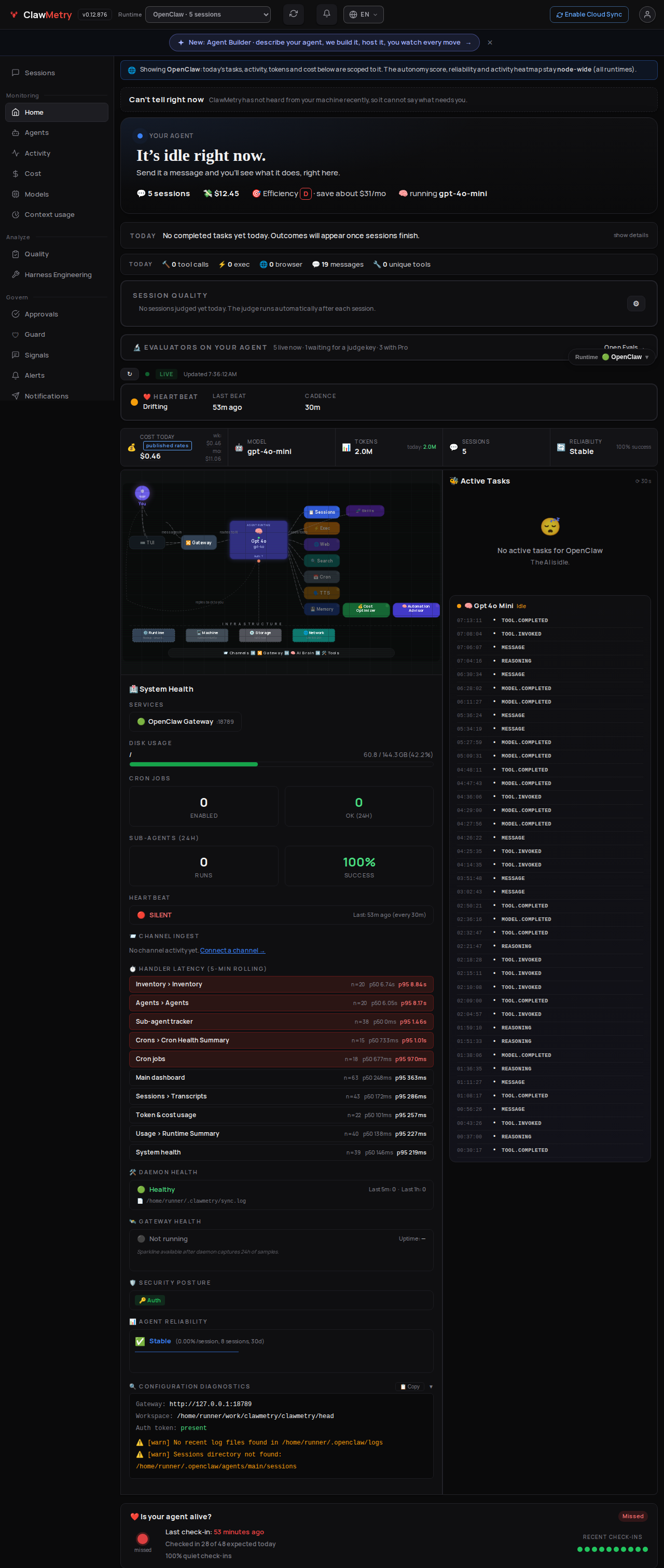

desktop nemoclaw ⚠️	before	after	diff · 5.83%

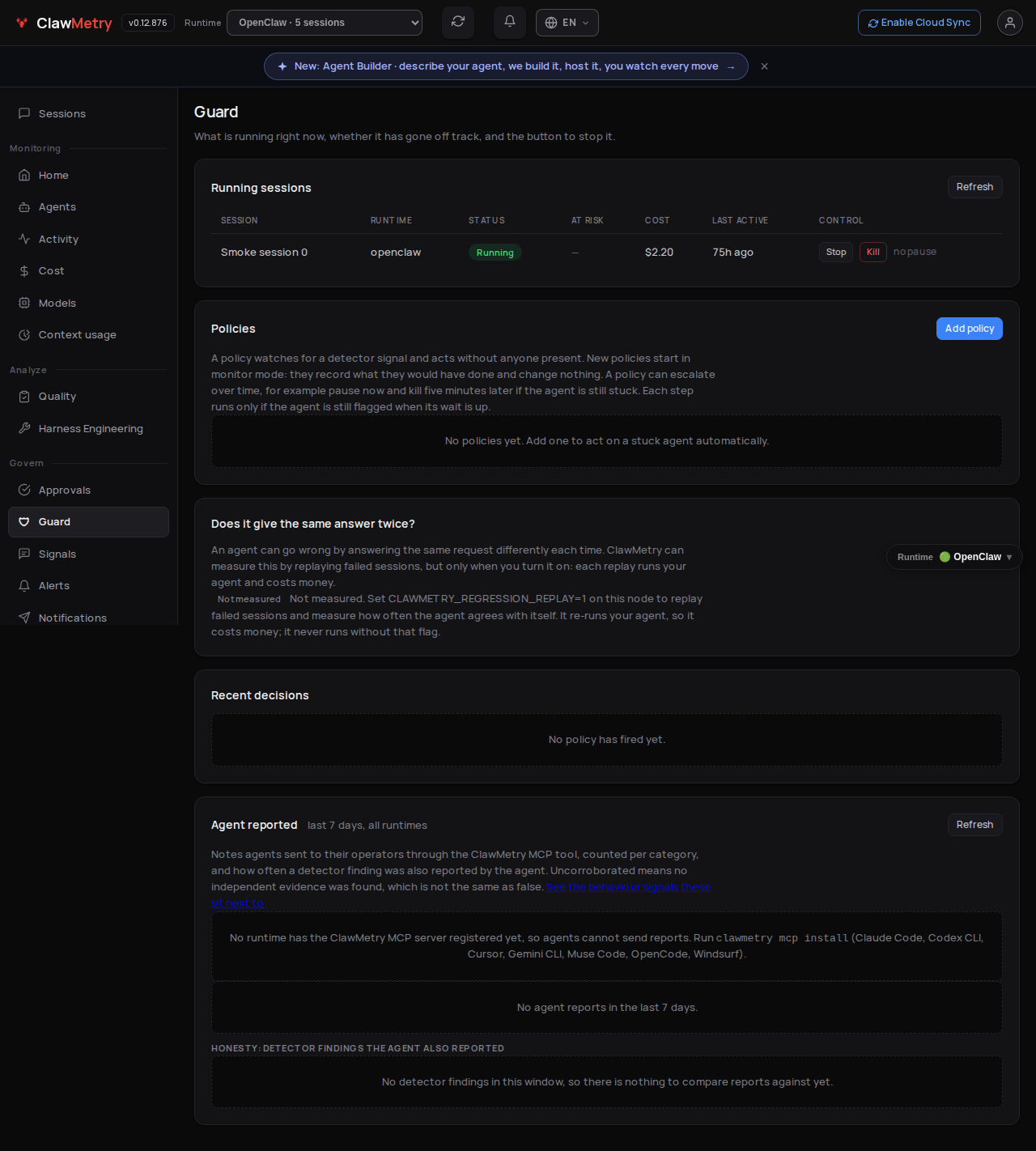

desktop guard ⚠️	before	after	diff · 100.00%

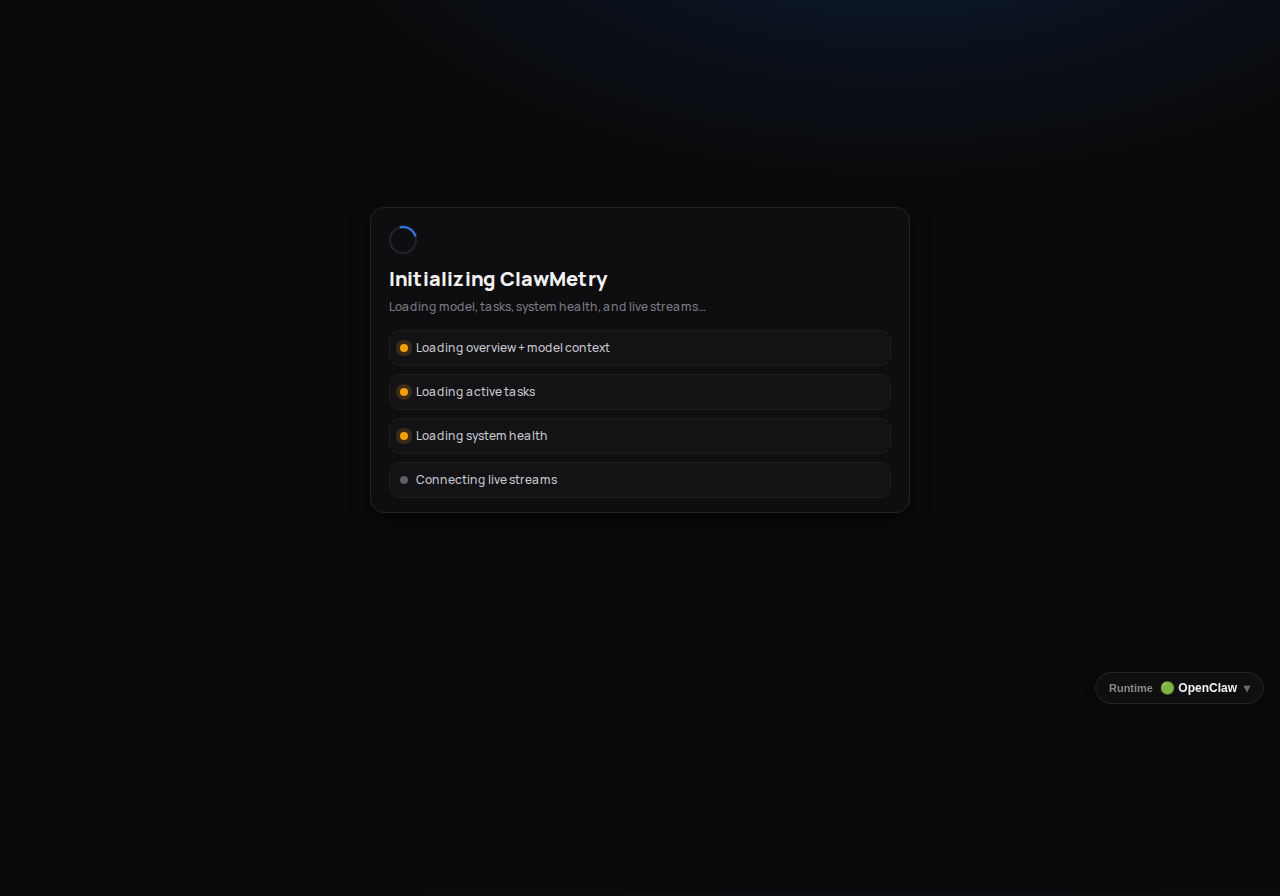

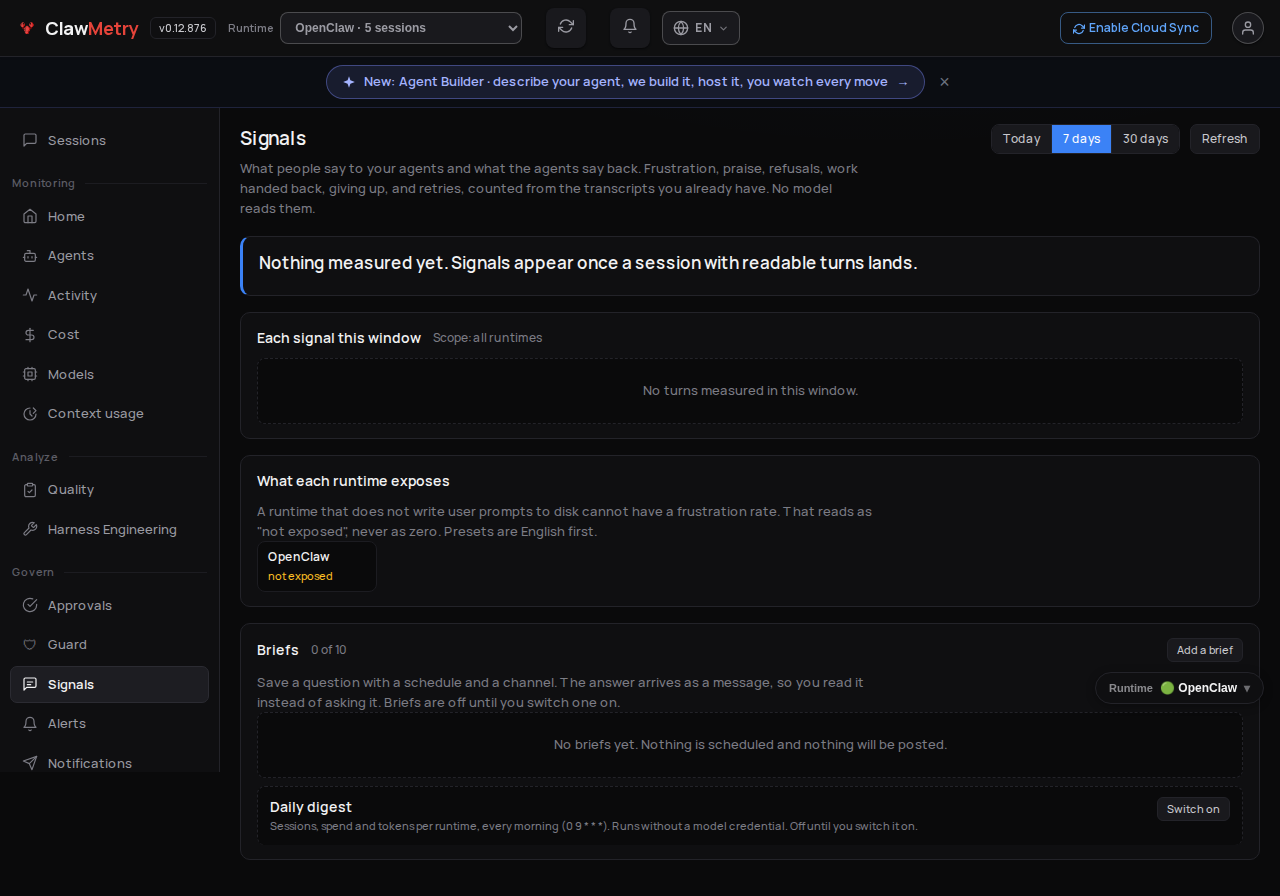

desktop signals ⚠️	before	after	diff · 3.07%
desktop policy	before	after	diff · 0.42%

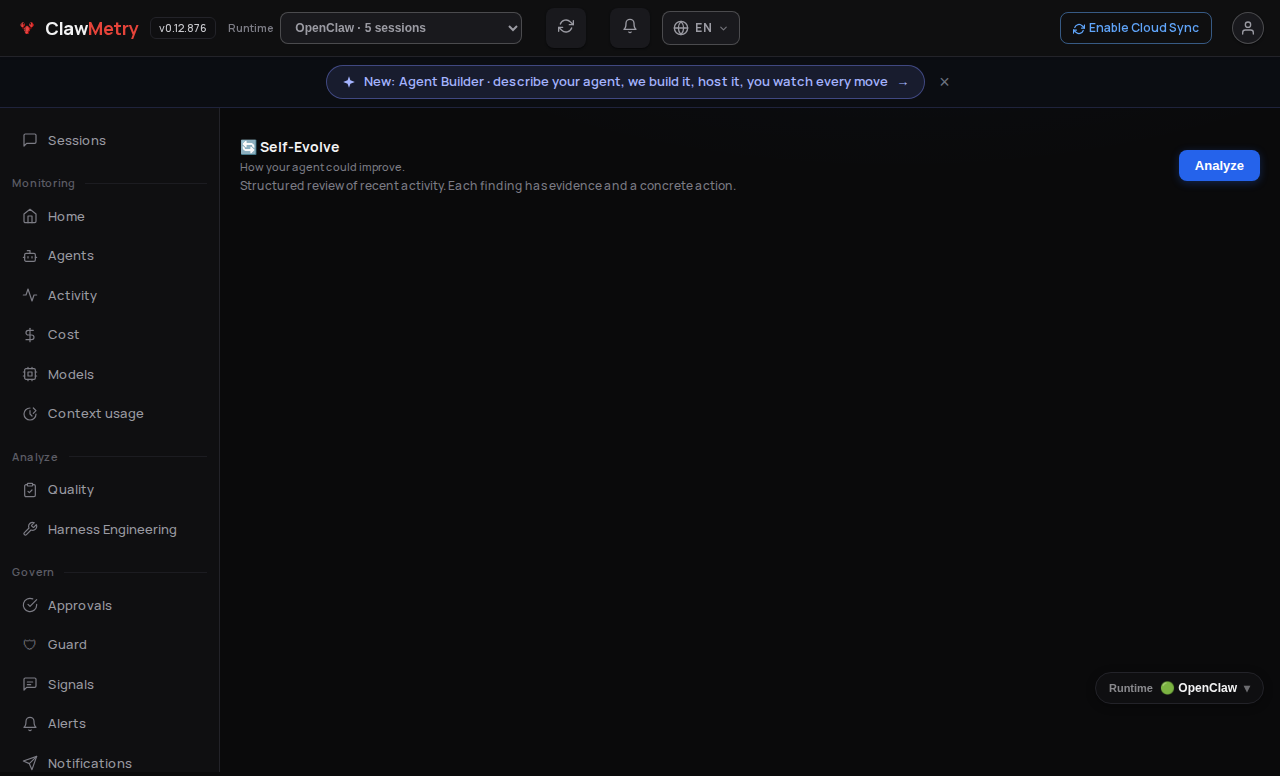

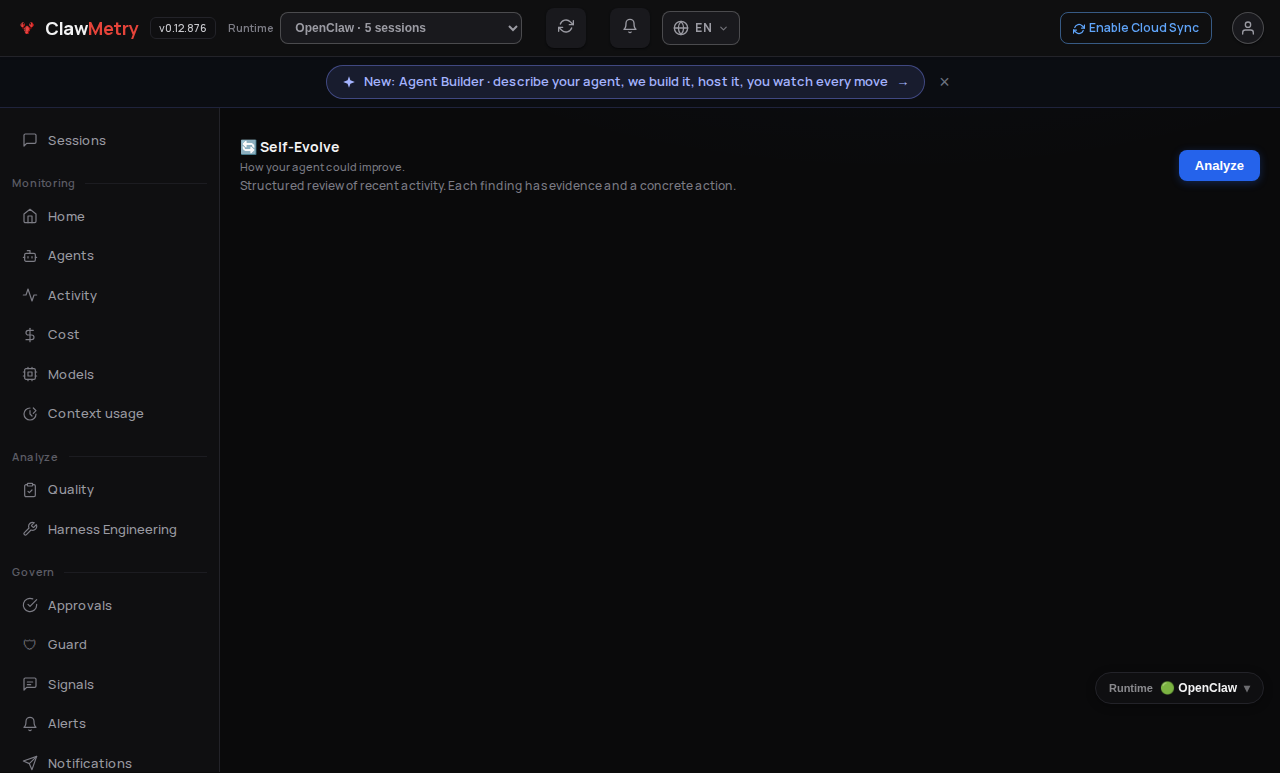

desktop selfevolve ⚠️	before	after	diff · 100.00%

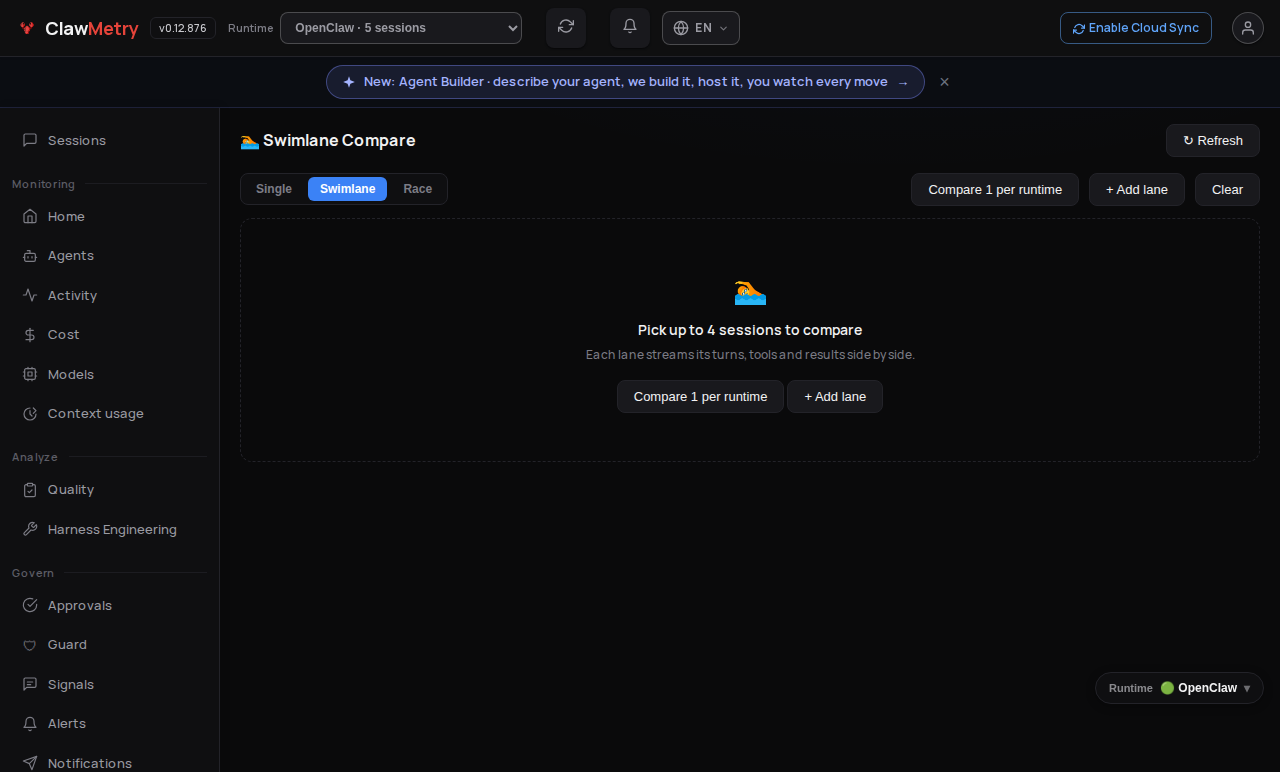

desktop swimlane ⚠️	before	after	diff · 100.00%

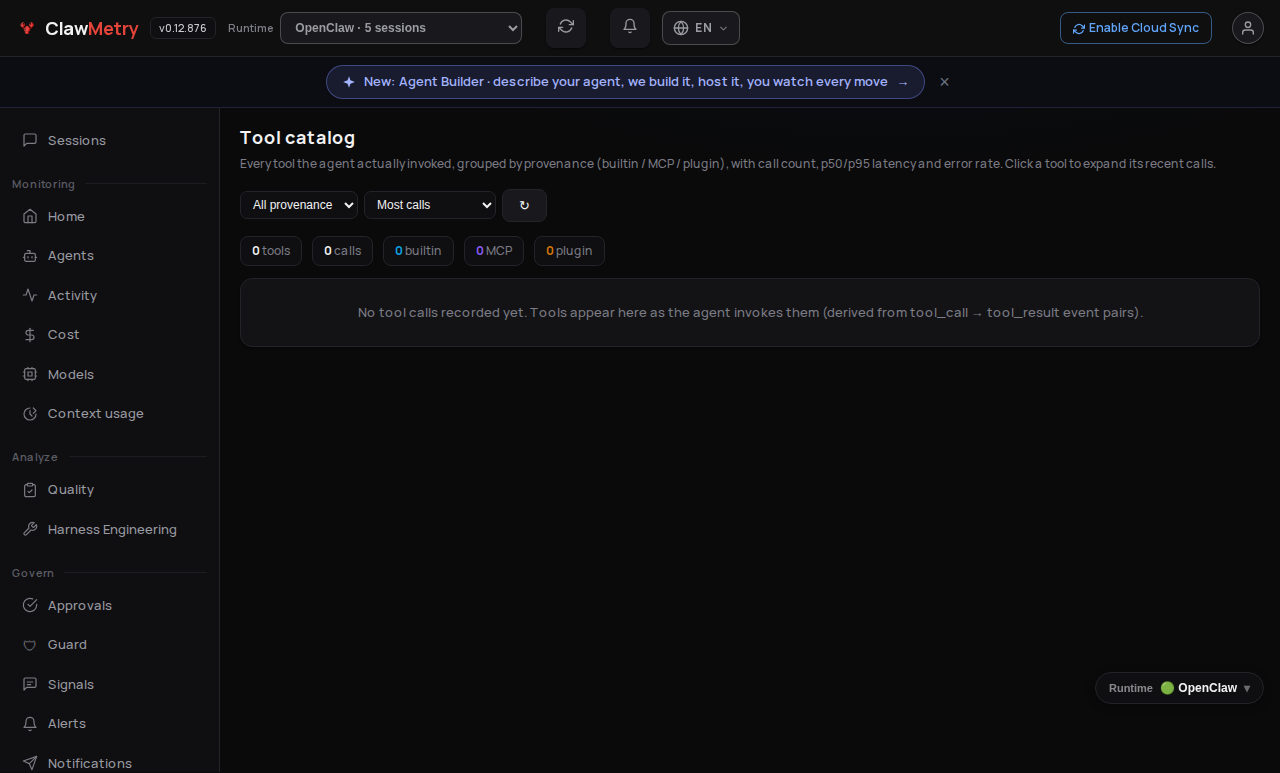

desktop tool-catalog ⚠️	before	after	diff · 100.00%

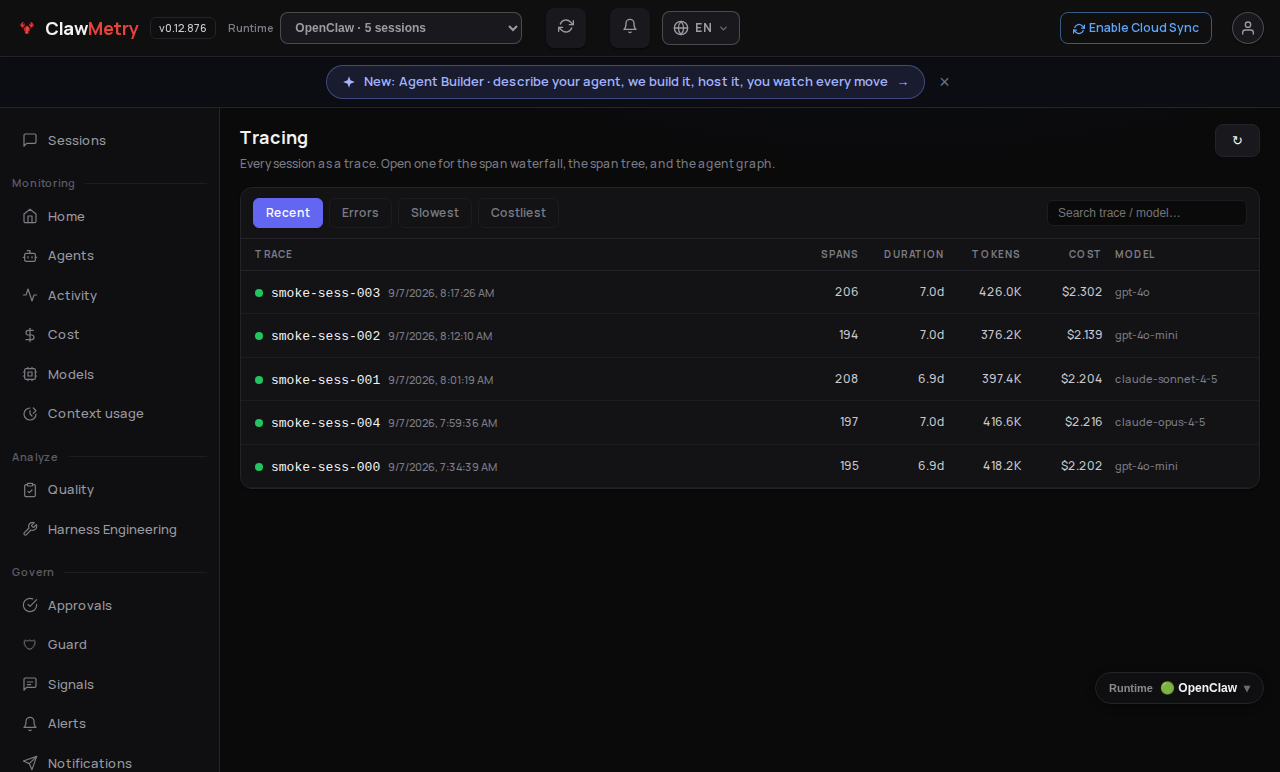

desktop tracing ⚠️	before	after	diff · 100.00%

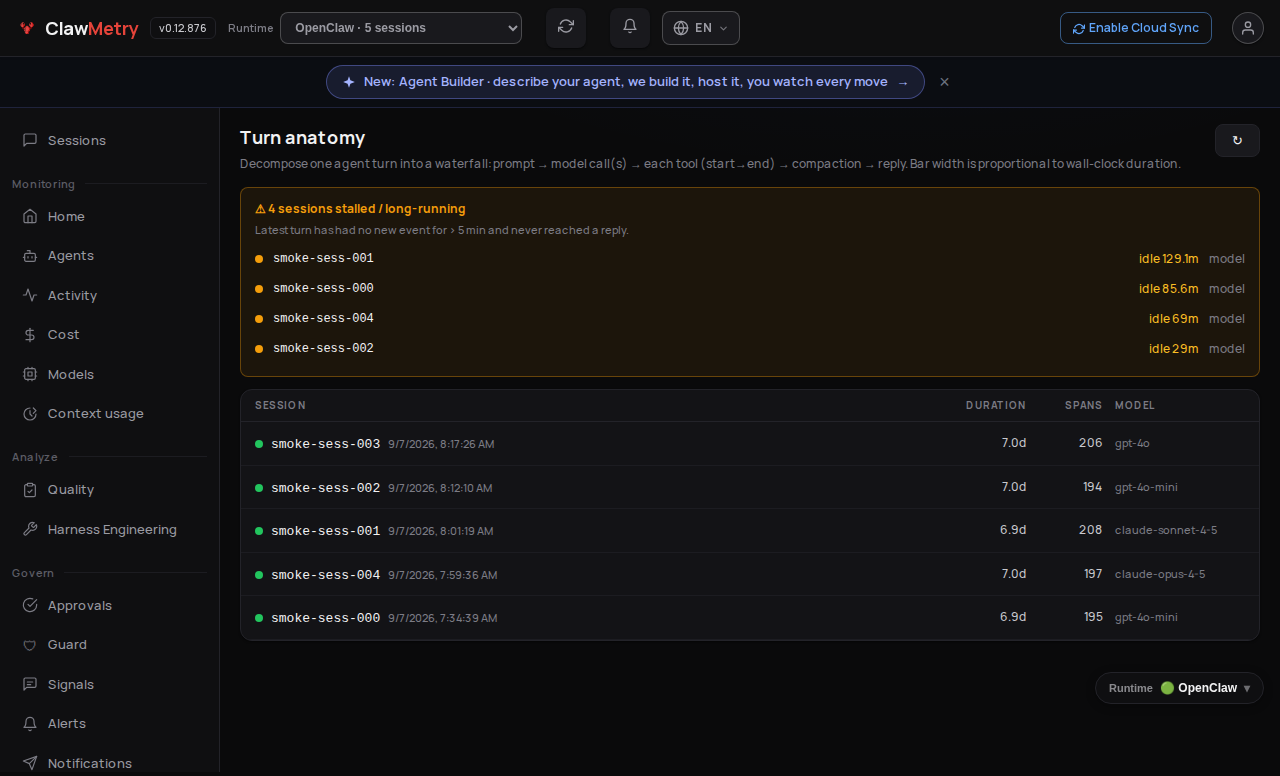

desktop turn-anatomy ⚠️	before	after	diff · 3.10%

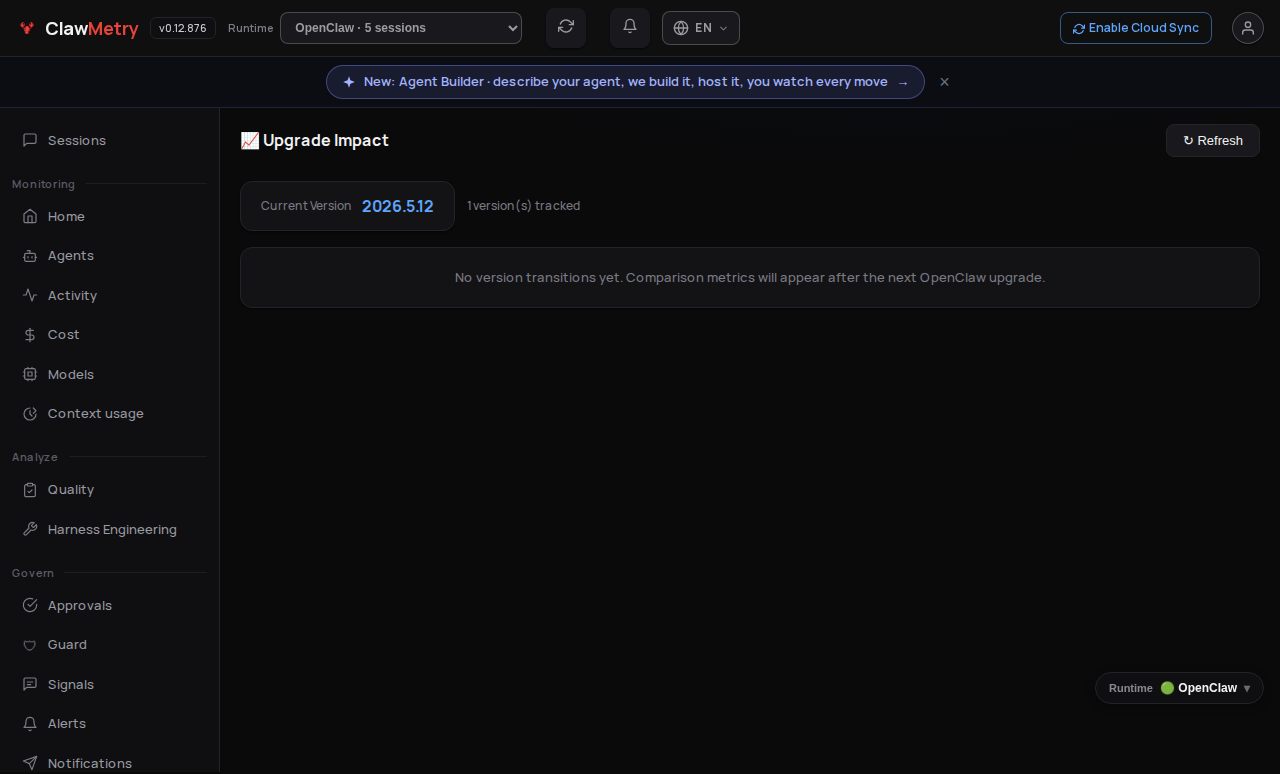

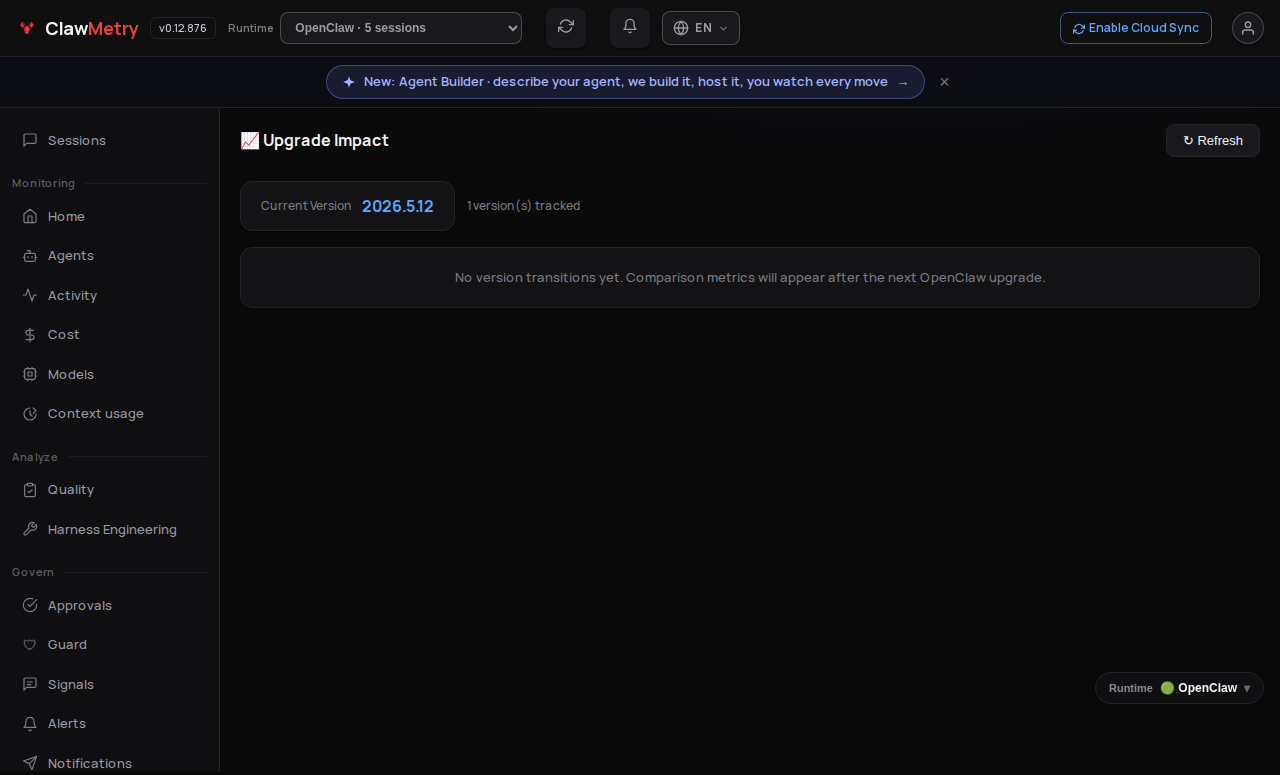

desktop version-impact ⚠️	before	after	diff · 100.00%
desktop context-economics	before	after	diff · 0.67%

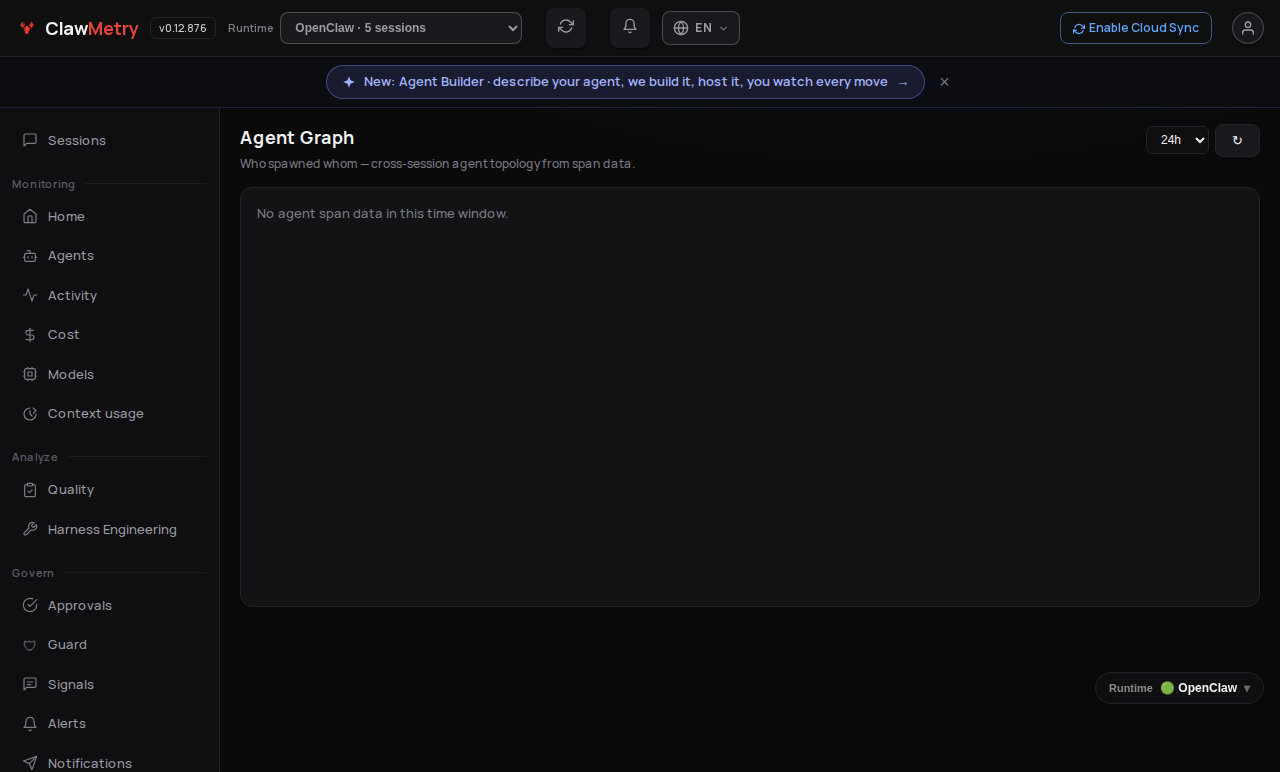

desktop agents ⚠️	before	after	diff · 100.00%

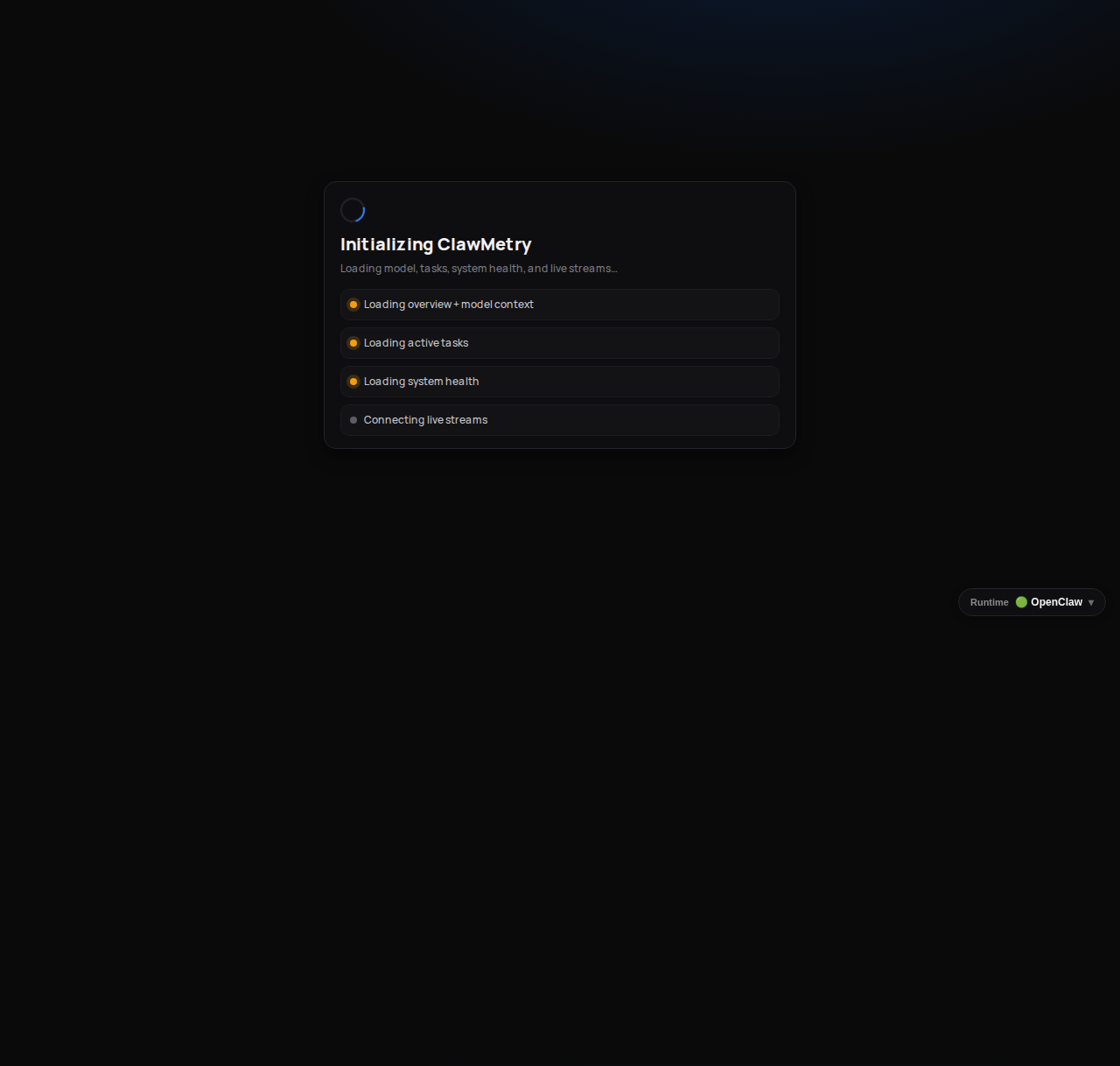

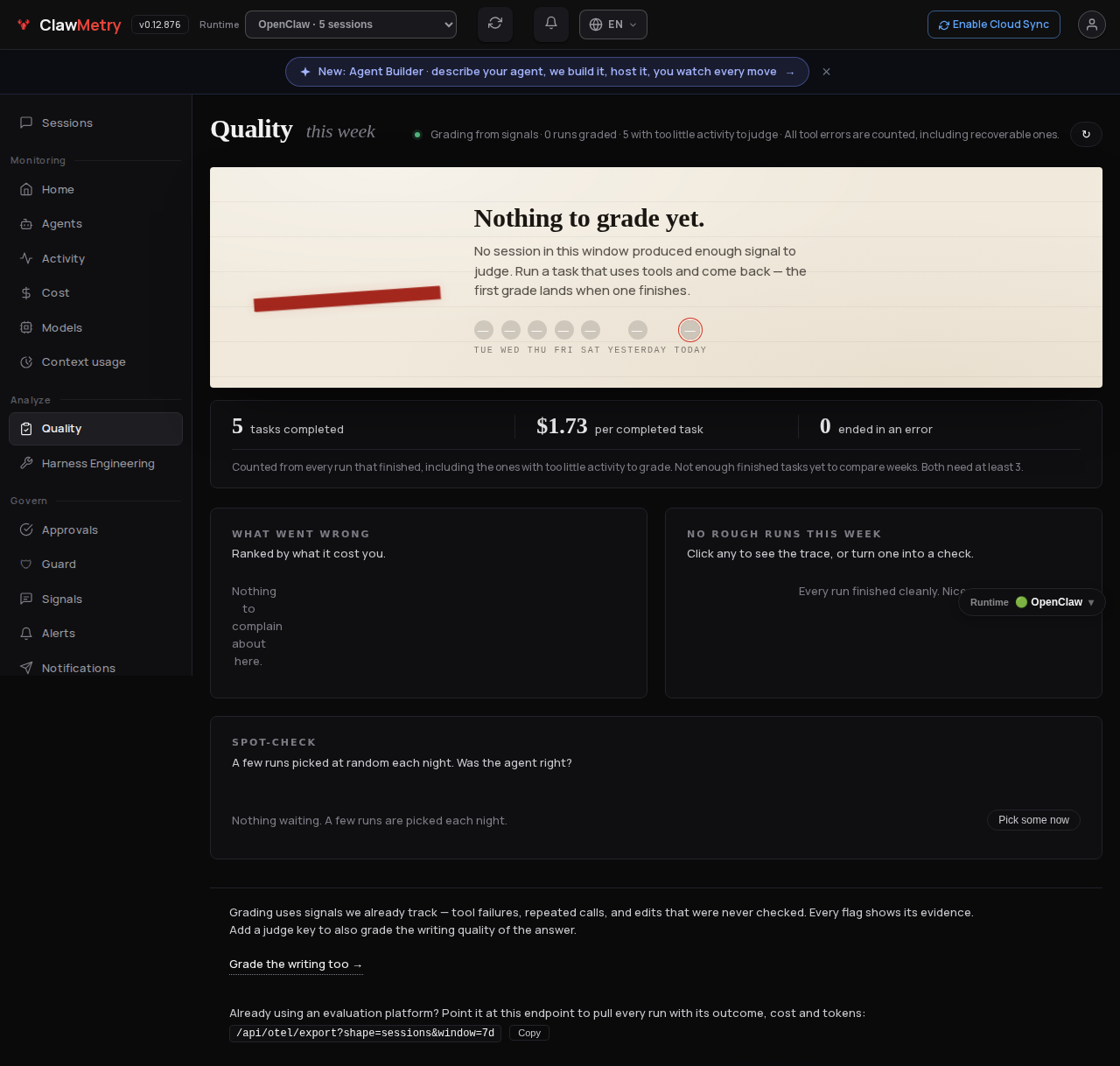

desktop evals ⚠️	before	after	diff · 16.80%

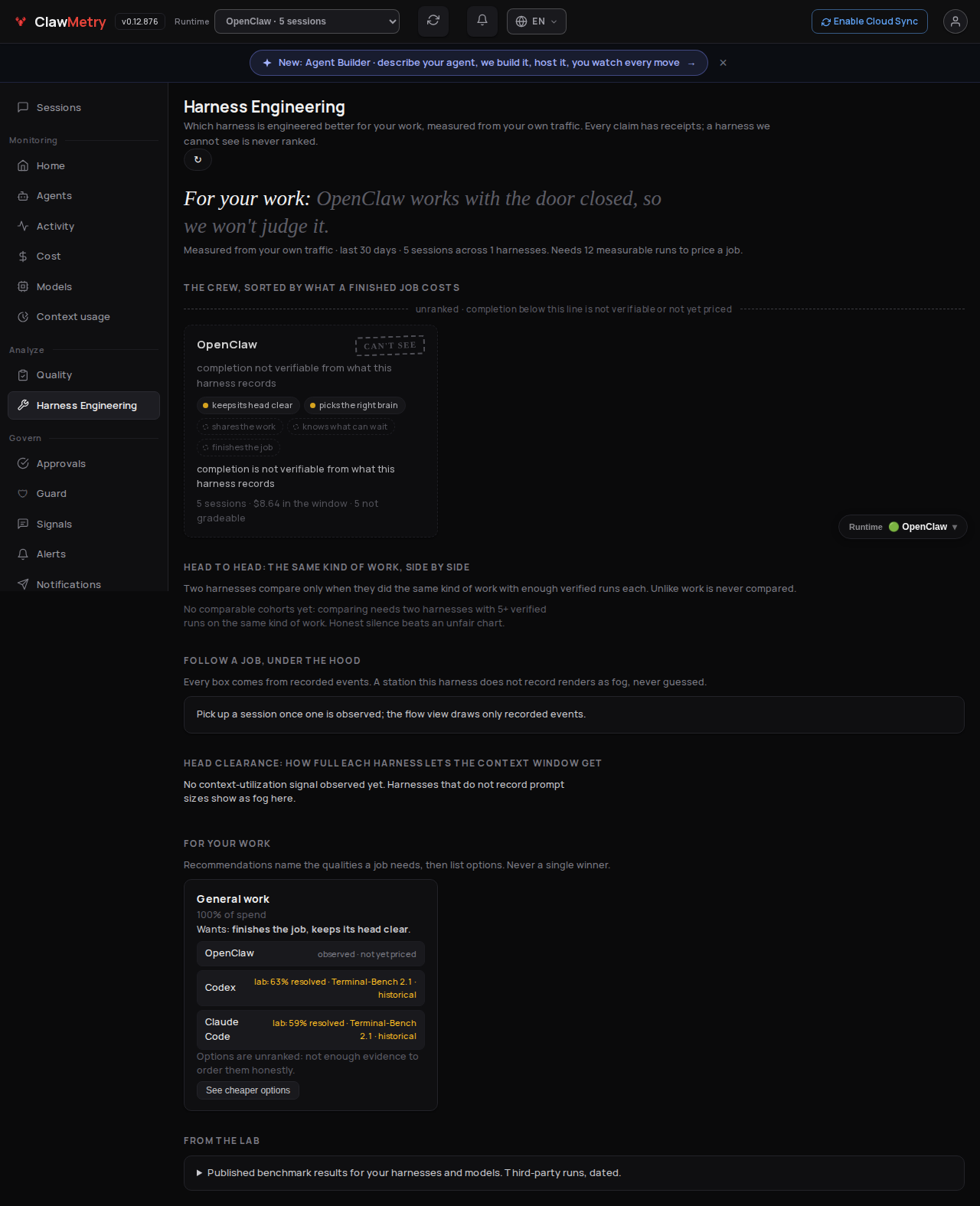

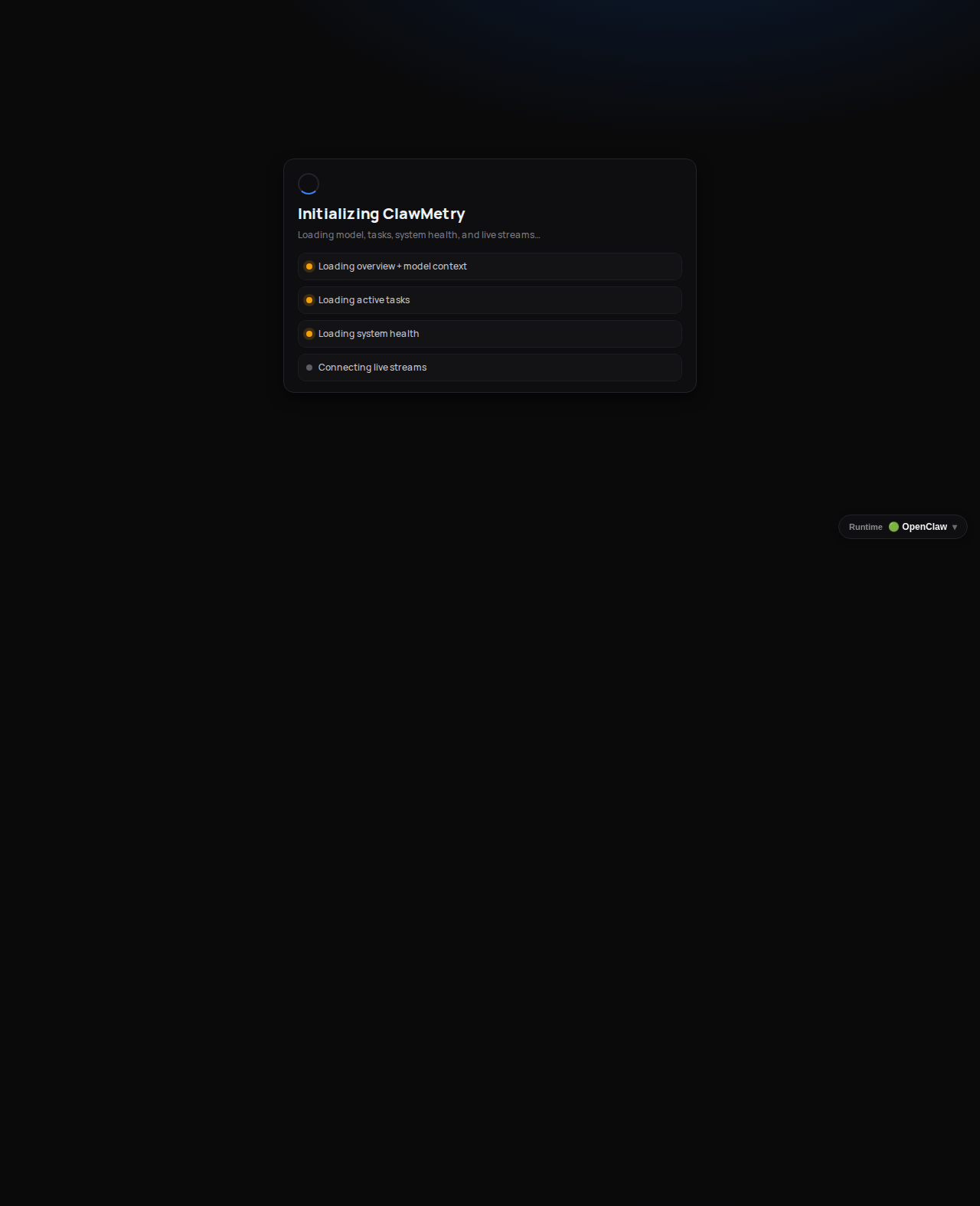

desktop bench ⚠️	before	after	diff · 2.51%

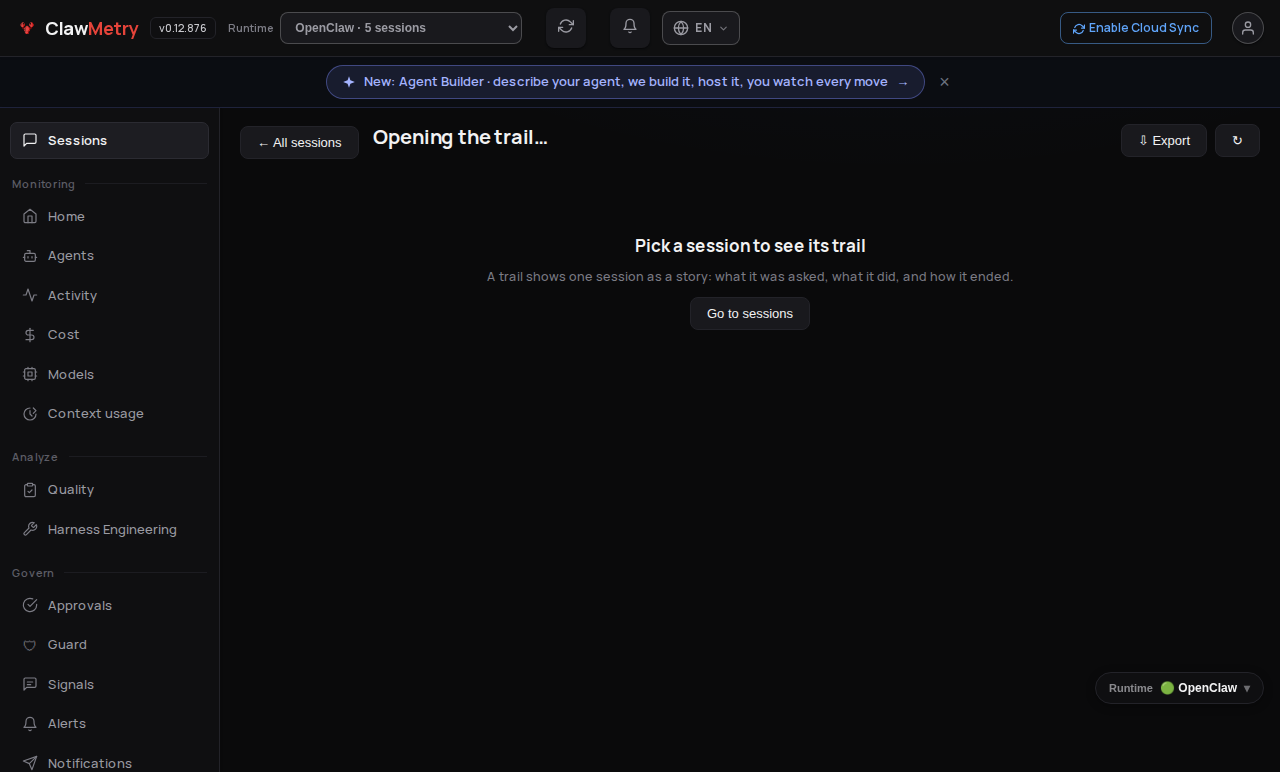

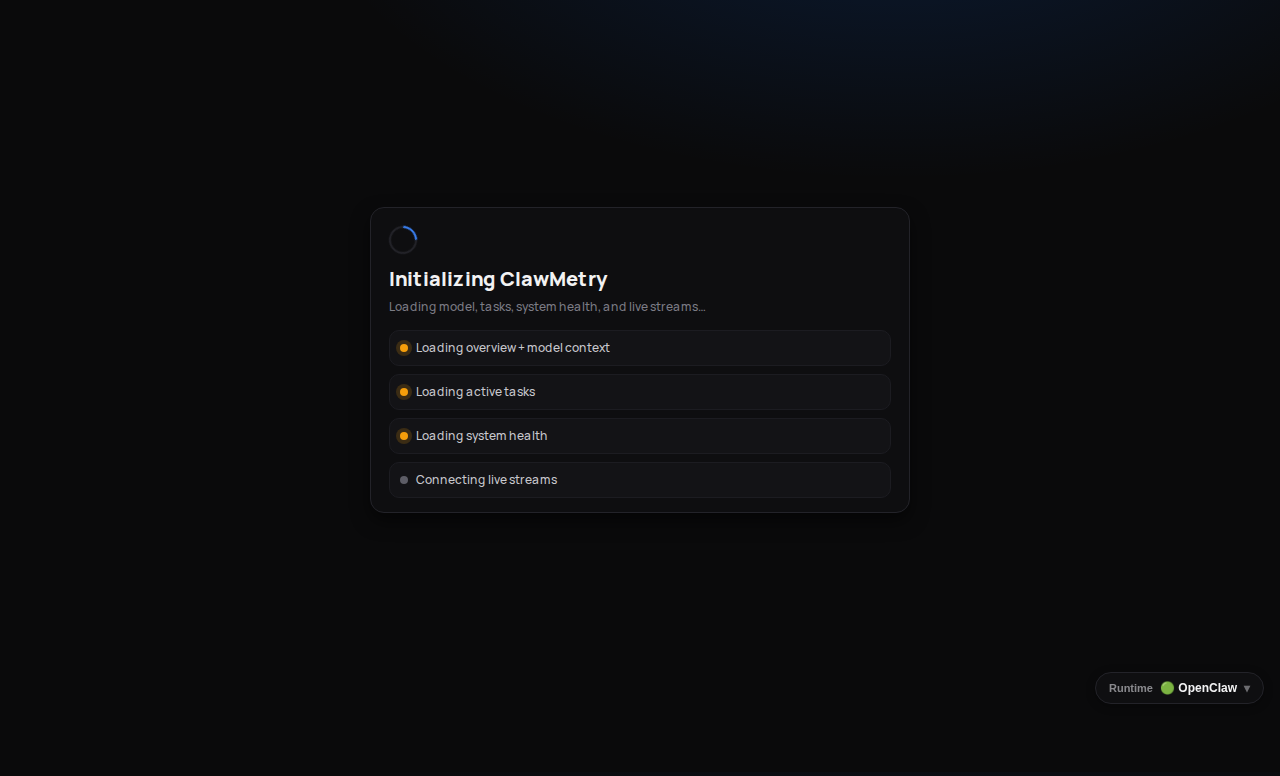

desktop trail ⚠️	before	after	diff · 100.00%
mobile overview	before	after	diff · 0.00%

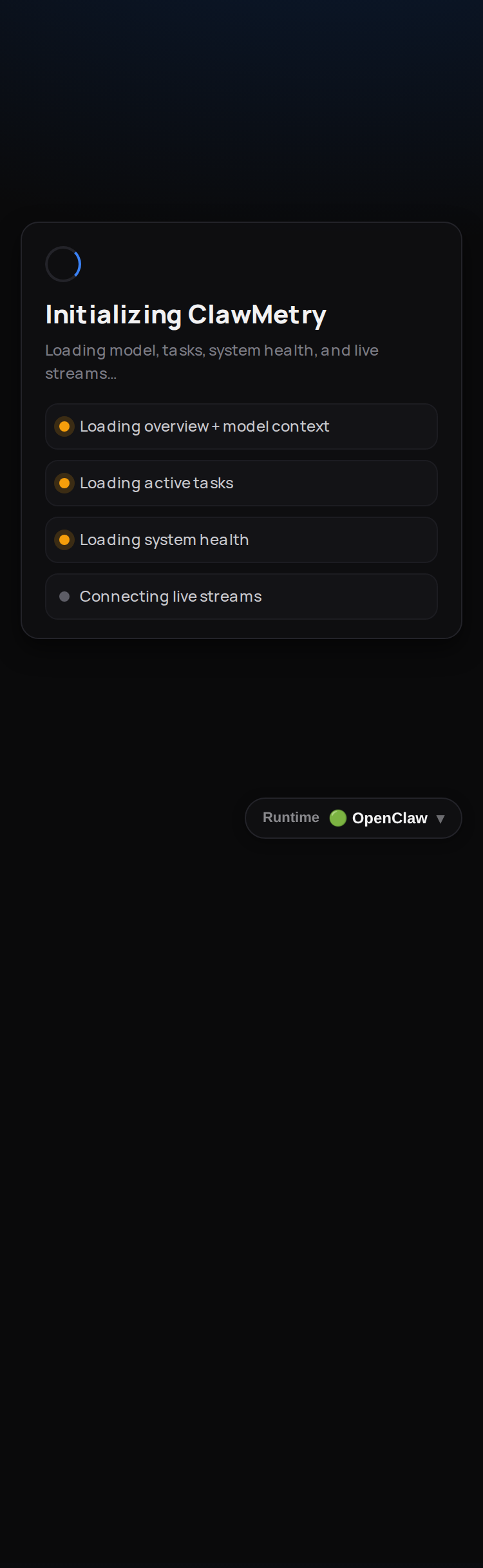

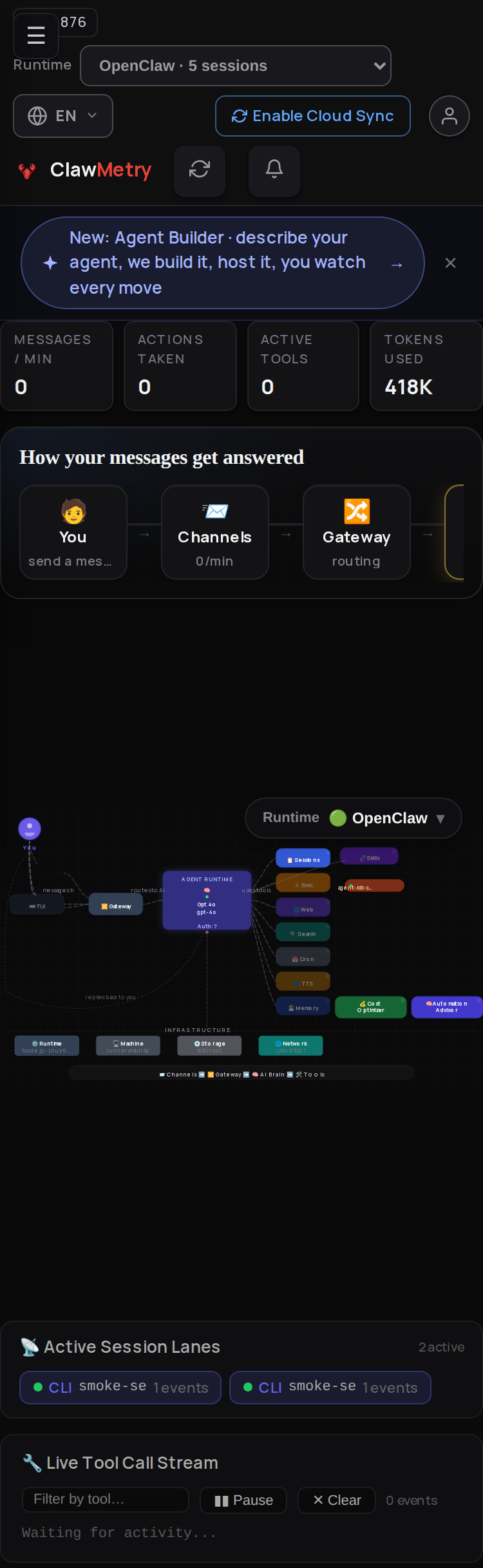

mobile flow ⚠️	before	after	diff · 5.82%

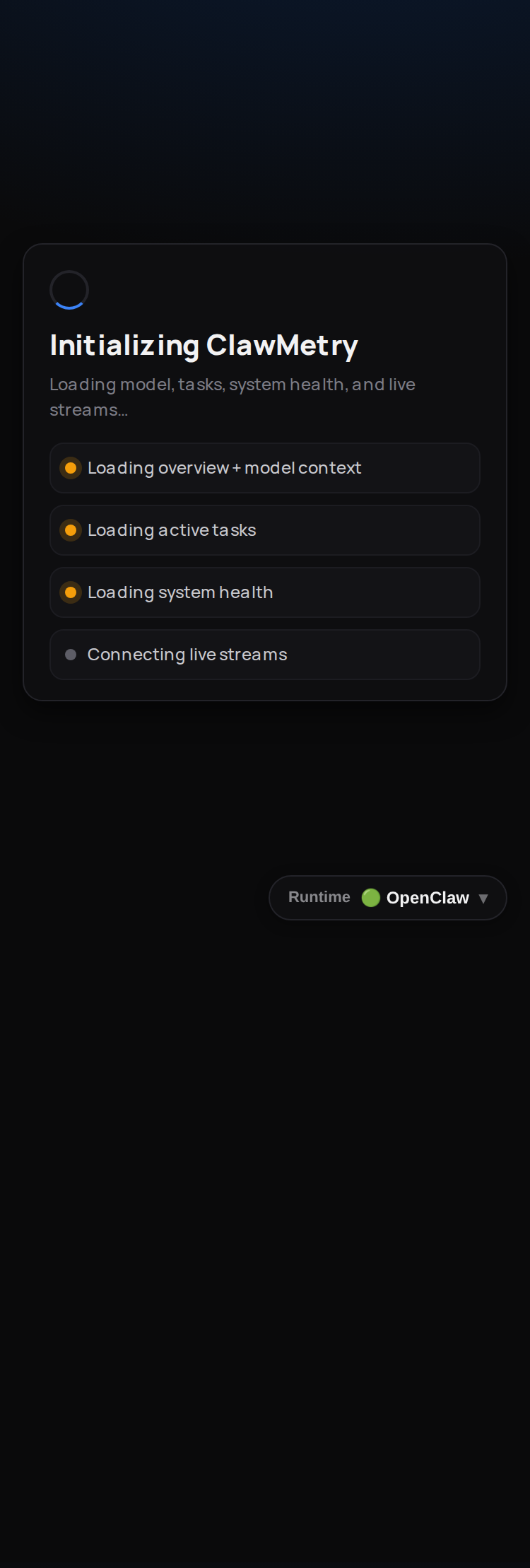

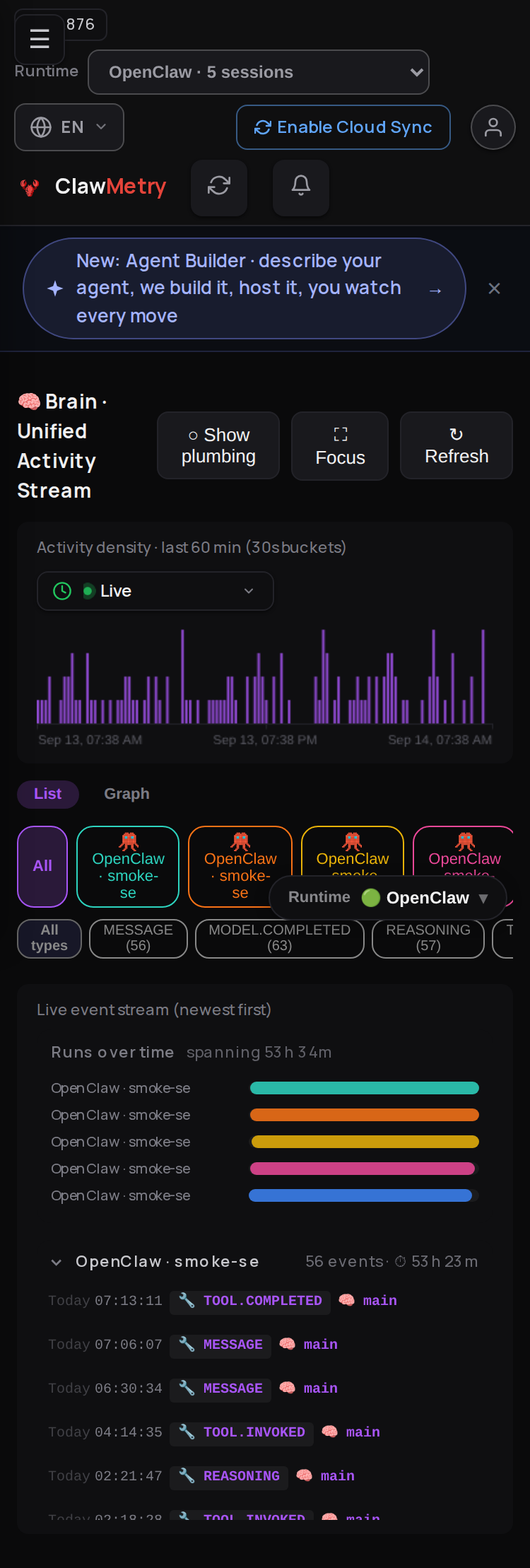

mobile brain ⚠️	before	after	diff · 6.64%
mobile usage ⚠️	before	after	diff · 100.00%

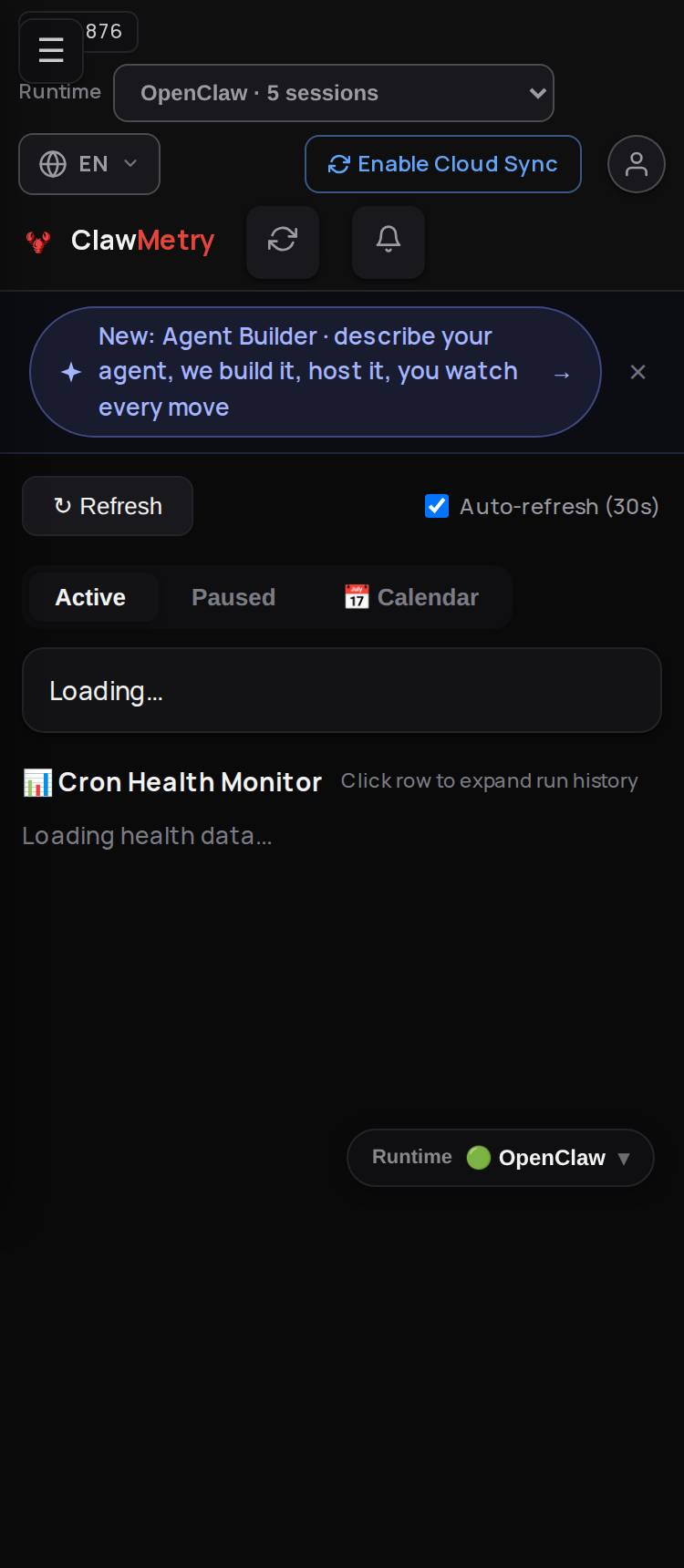

mobile crons ⚠️	before	after	diff · 100.00%

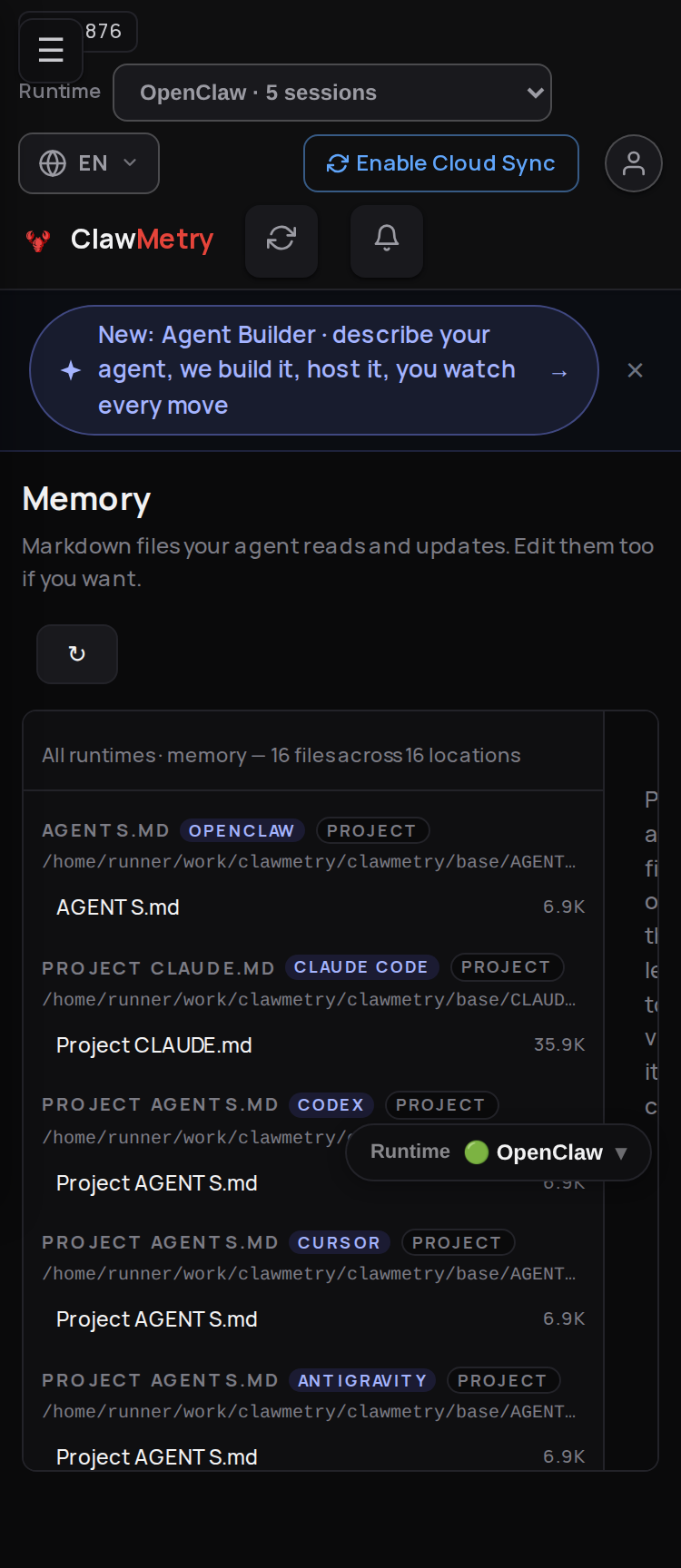

mobile memory ⚠️	before	after	diff · 4.54%

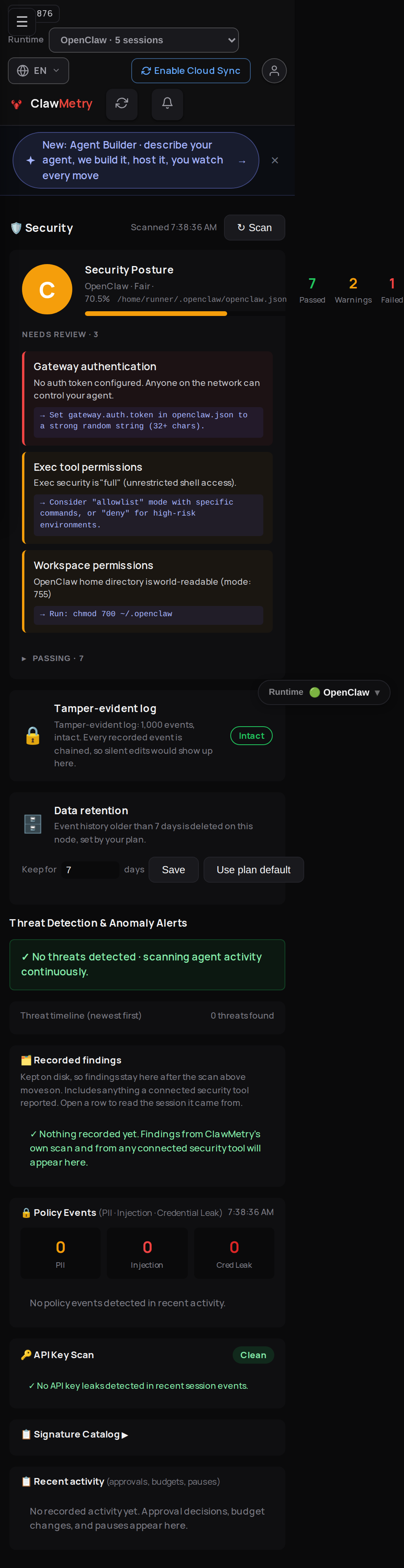

mobile security ⚠️	before	after	diff · 100.00%

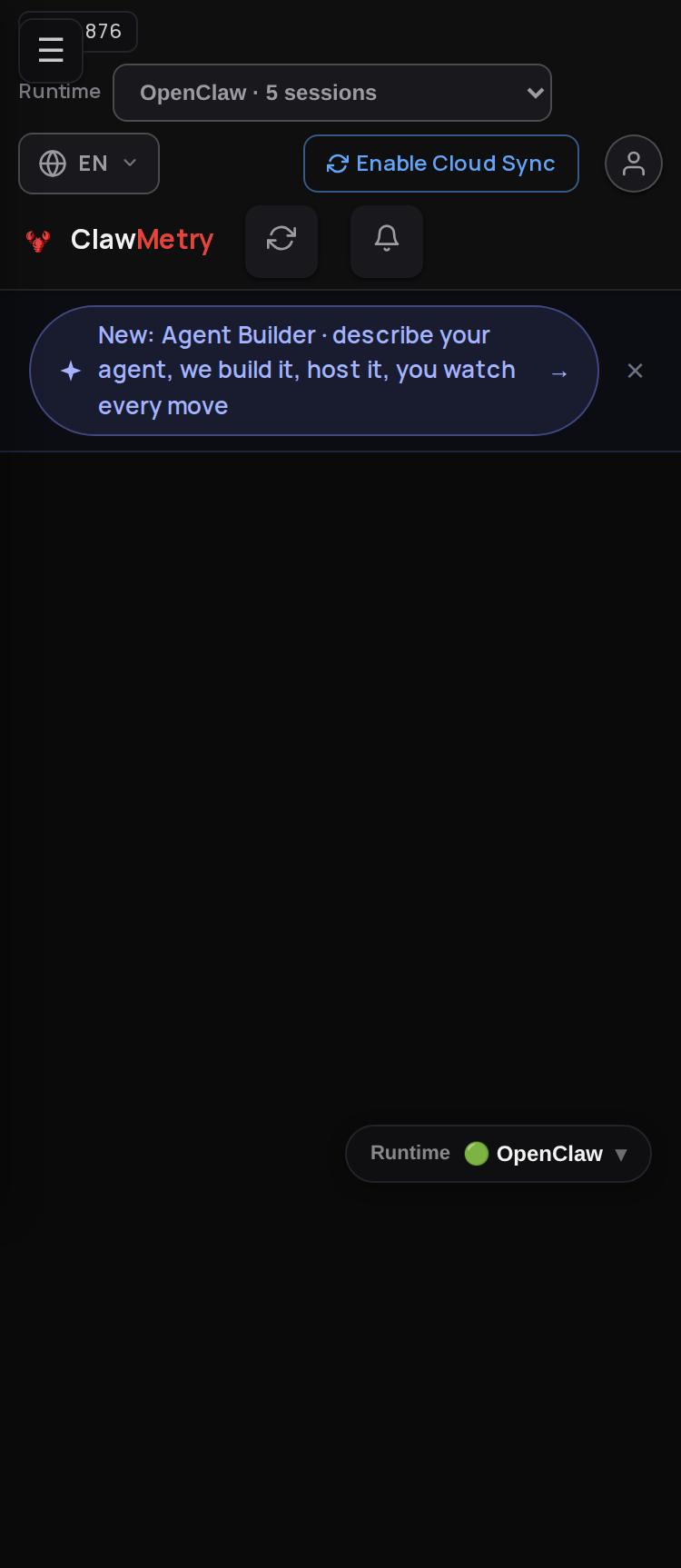

mobile subagents ⚠️	before	after	diff · 100.00%

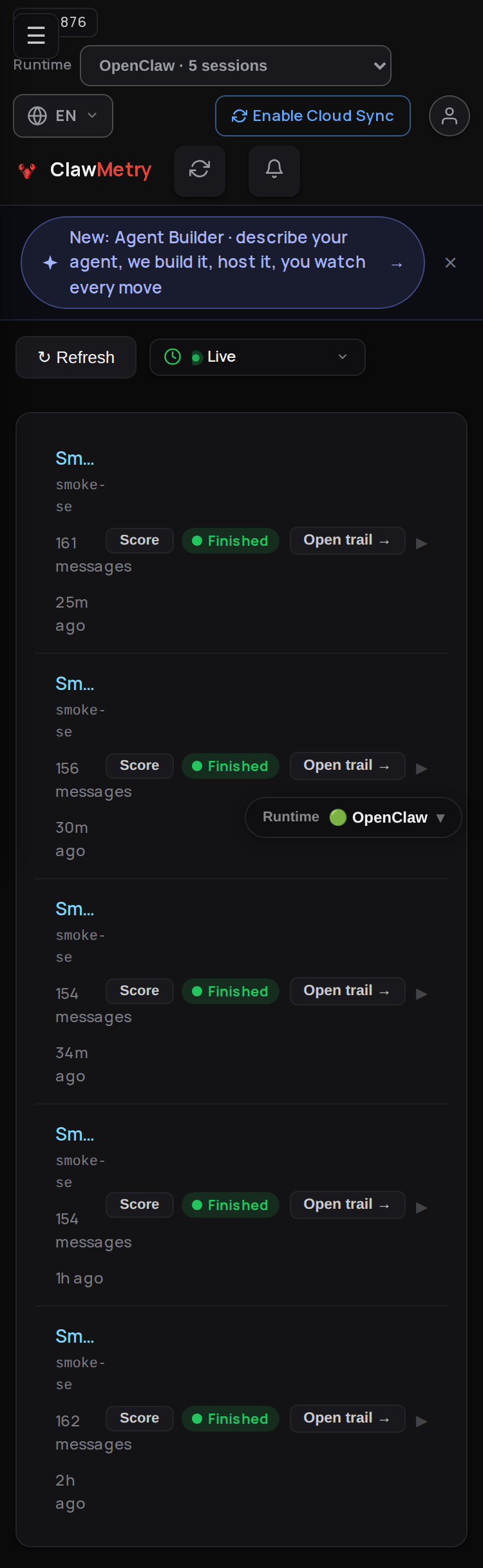

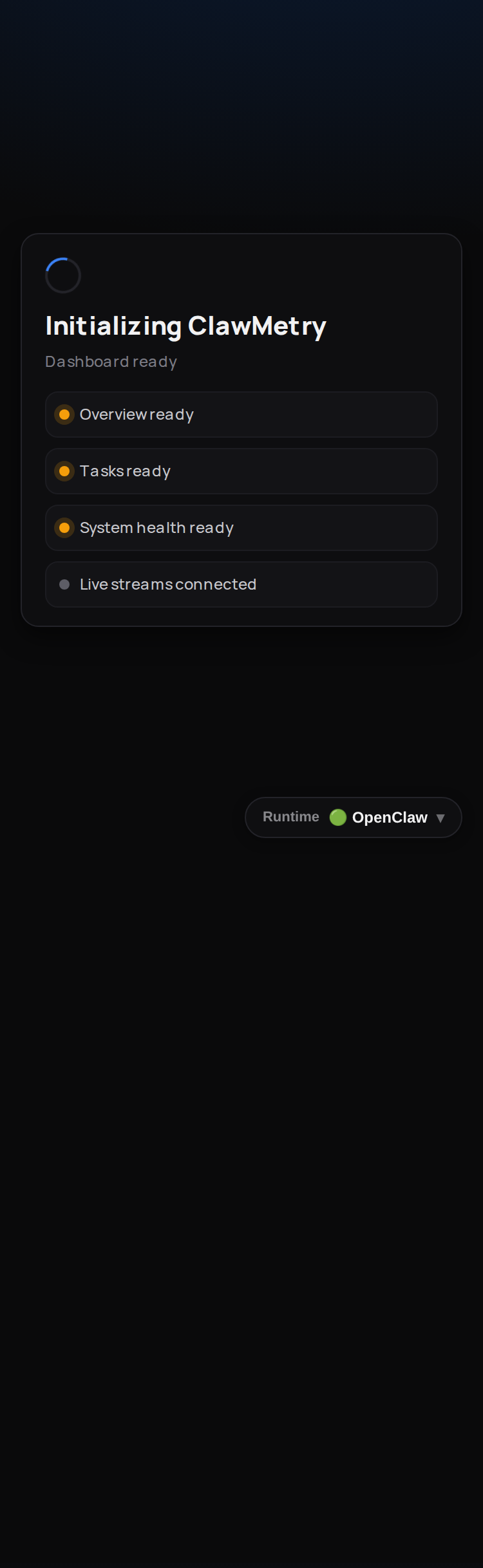

mobile transcripts ⚠️	before	after	diff · 3.43%

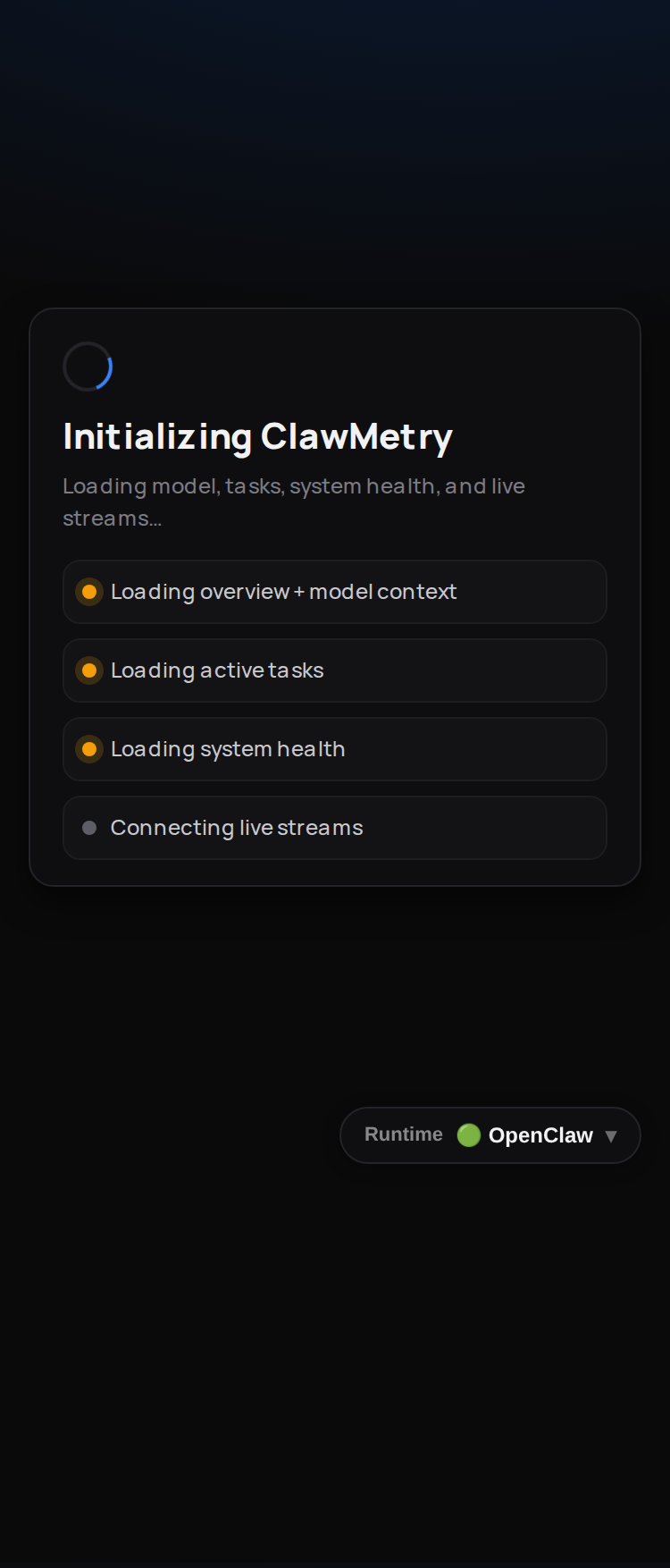

mobile logs	before	after	diff · 0.02%
mobile skills	before	after	diff · 0.07%

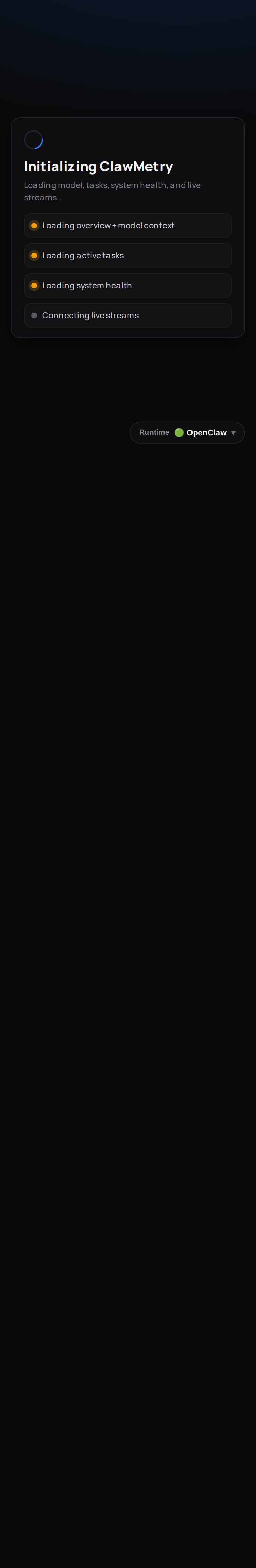

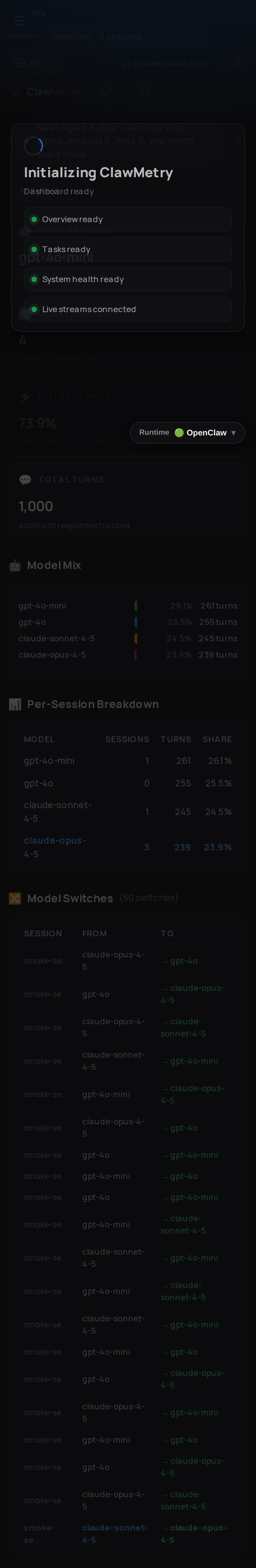

mobile models ⚠️	before	after	diff · 1.94%

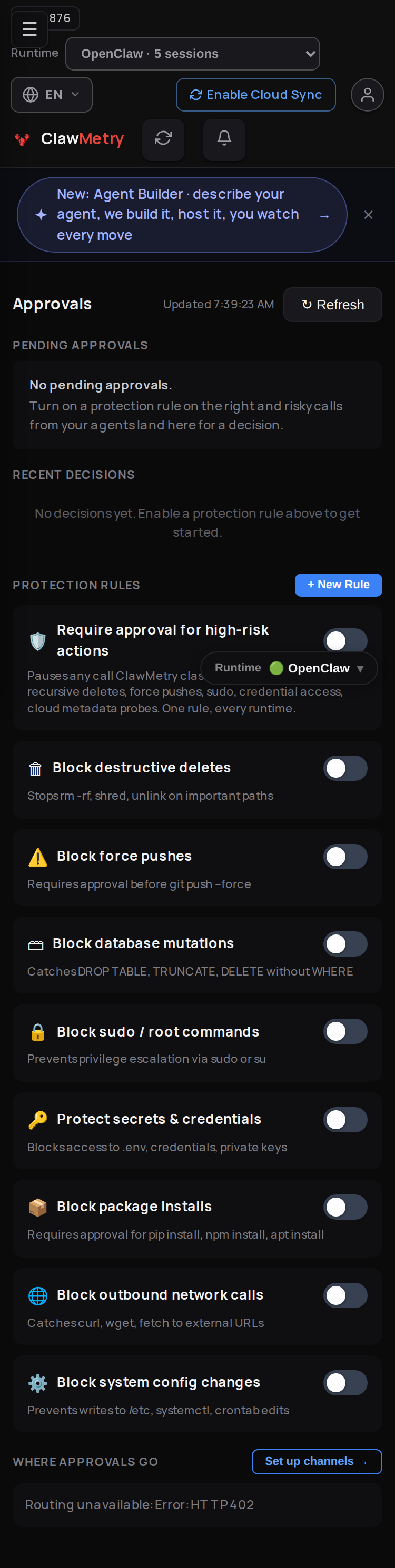

mobile approvals ⚠️	before	after	diff · 100.00%

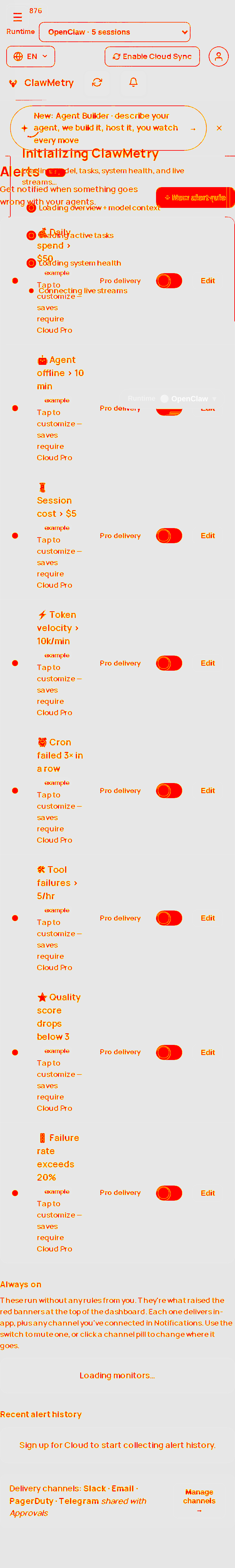

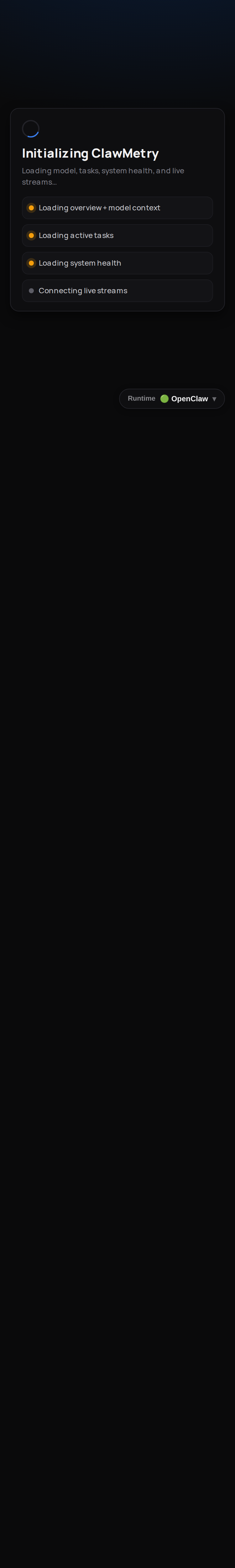

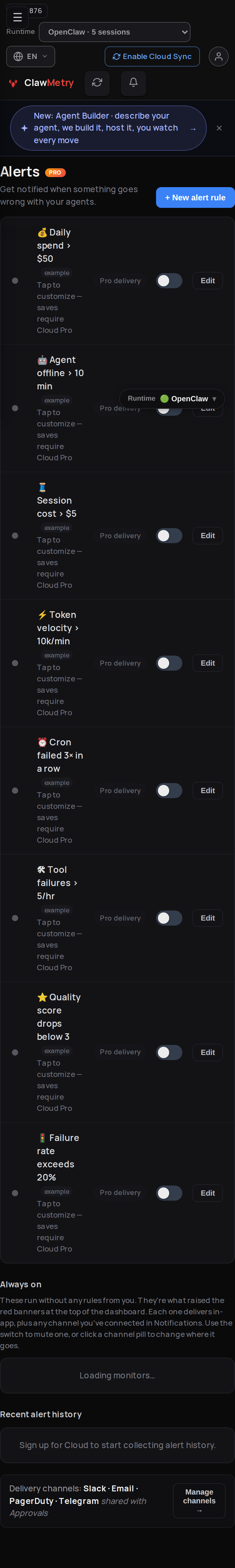

mobile alerts ⚠️	before	after	diff · 3.57%

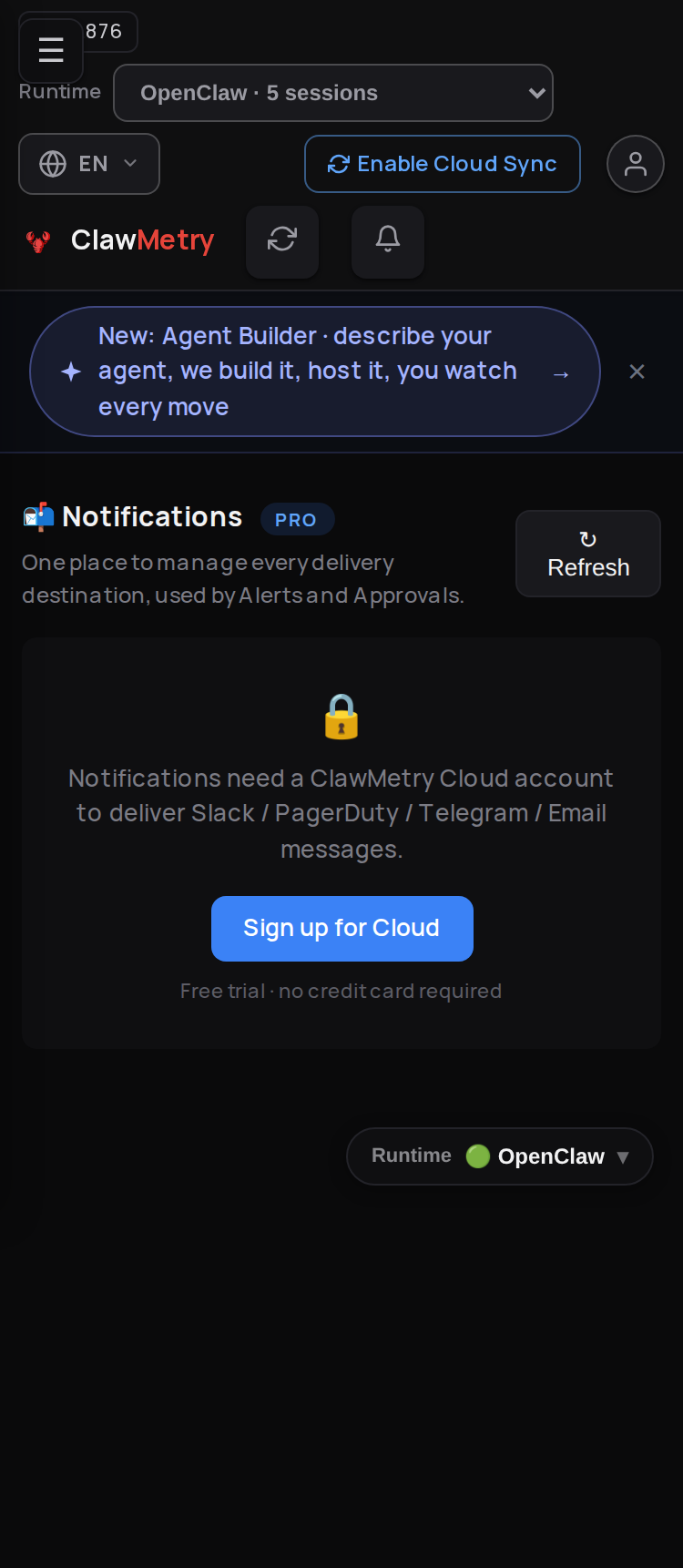

mobile notifications ⚠️	before	after	diff · 100.00%

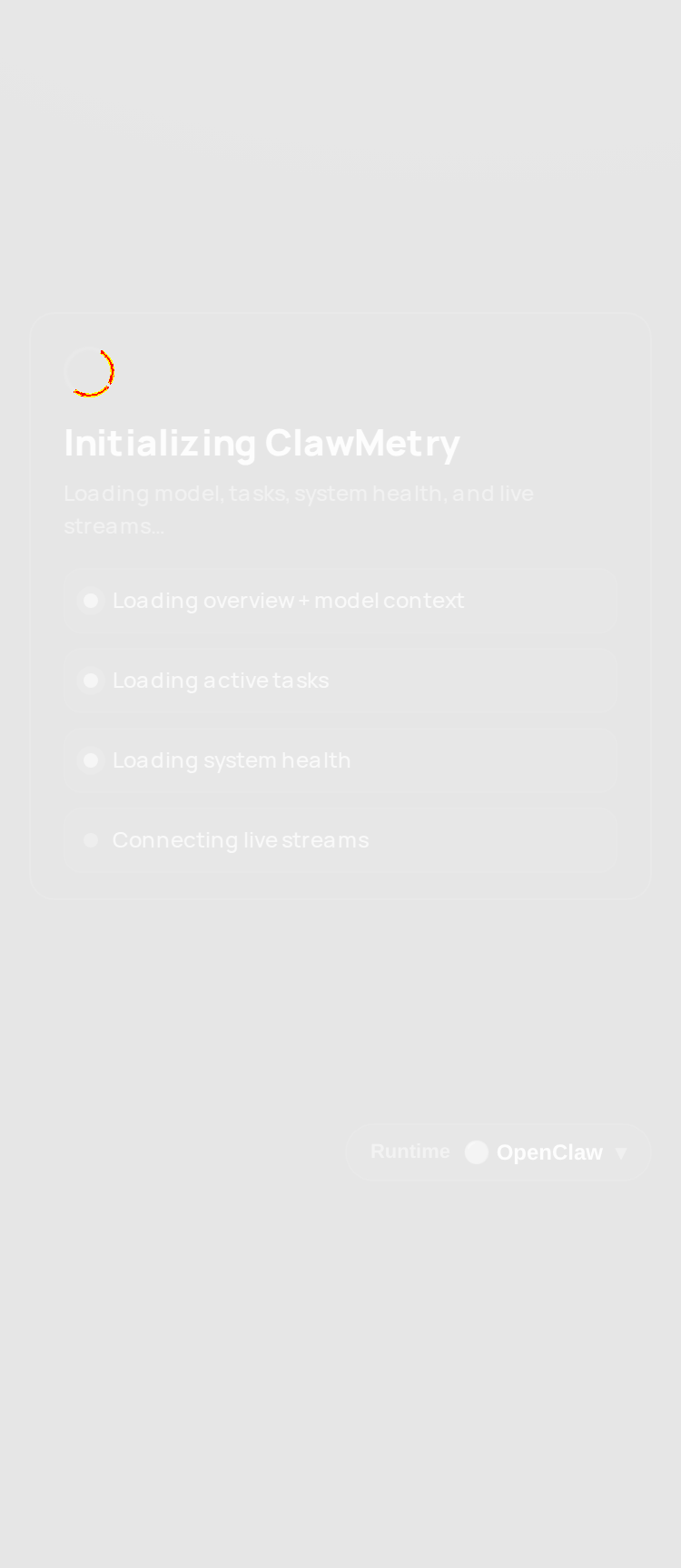

mobile limits	before	after	diff · 0.01%

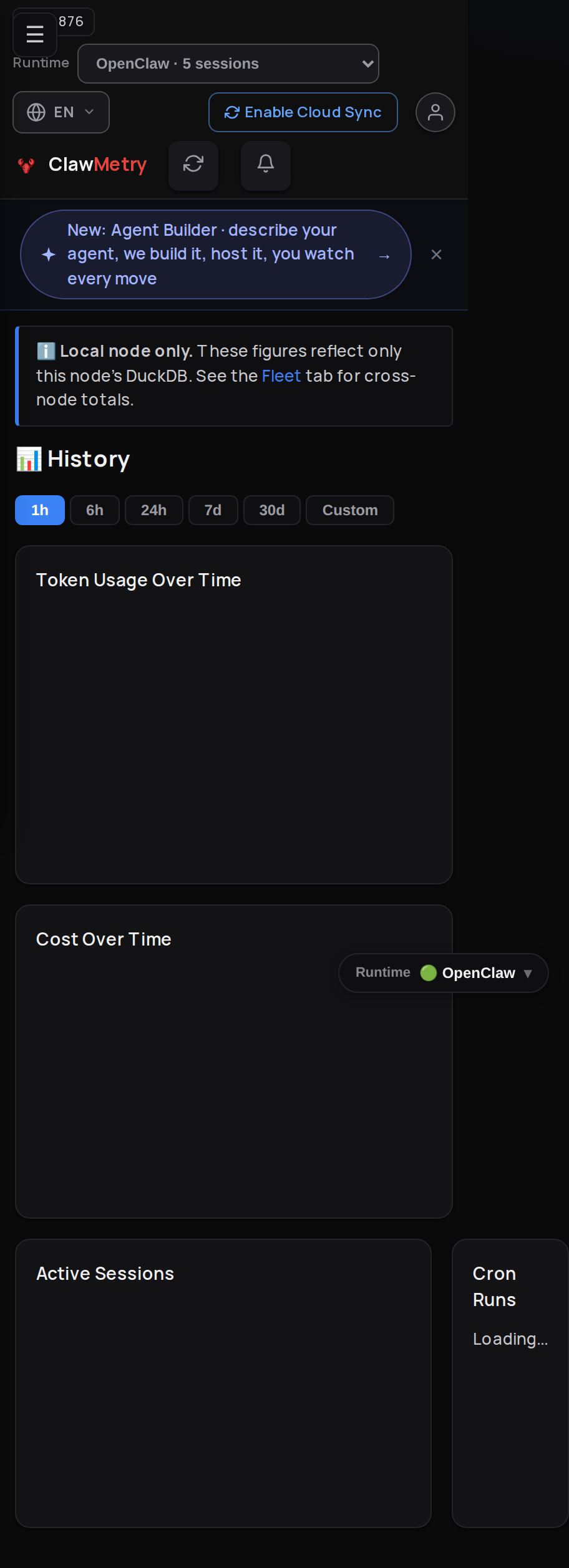

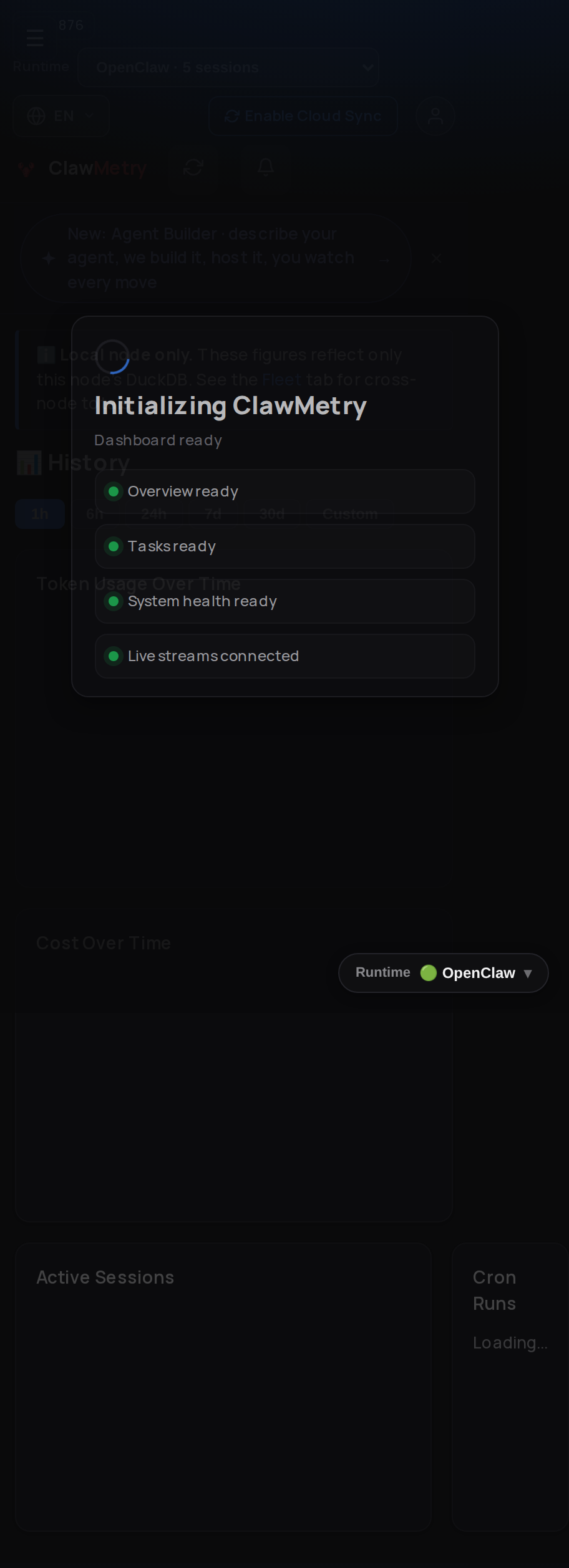

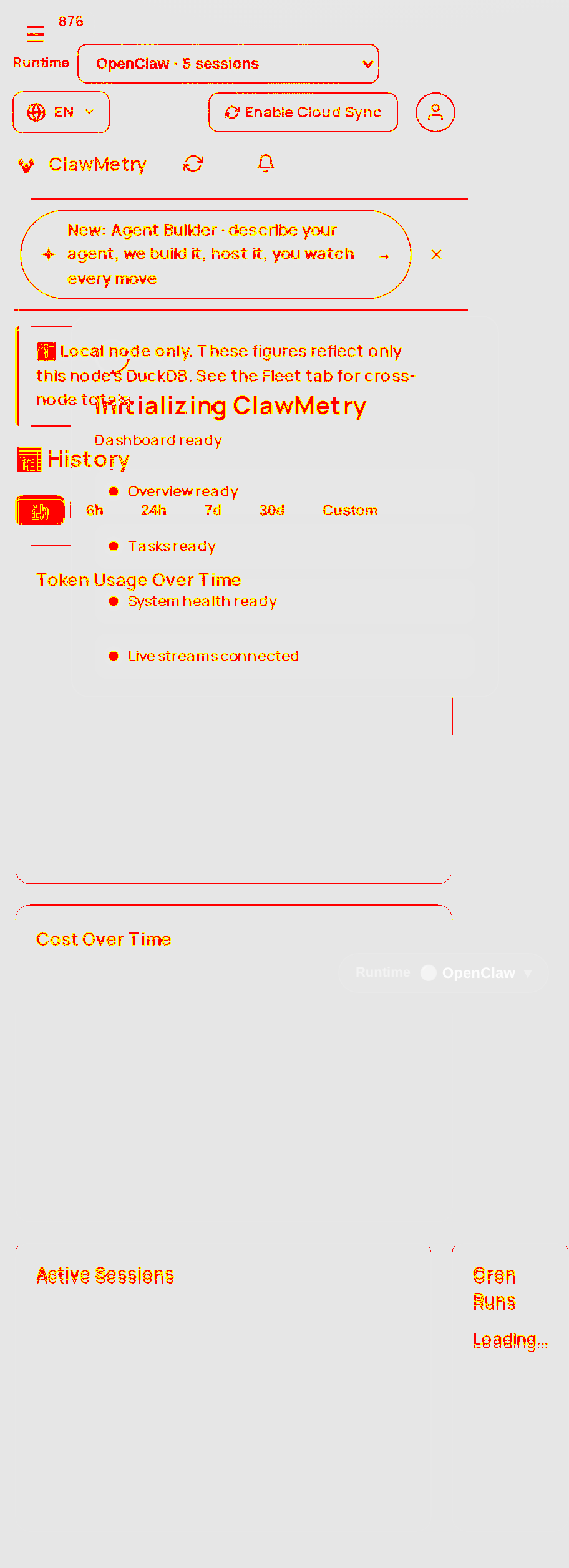

mobile history ⚠️	before	after	diff · 2.24%

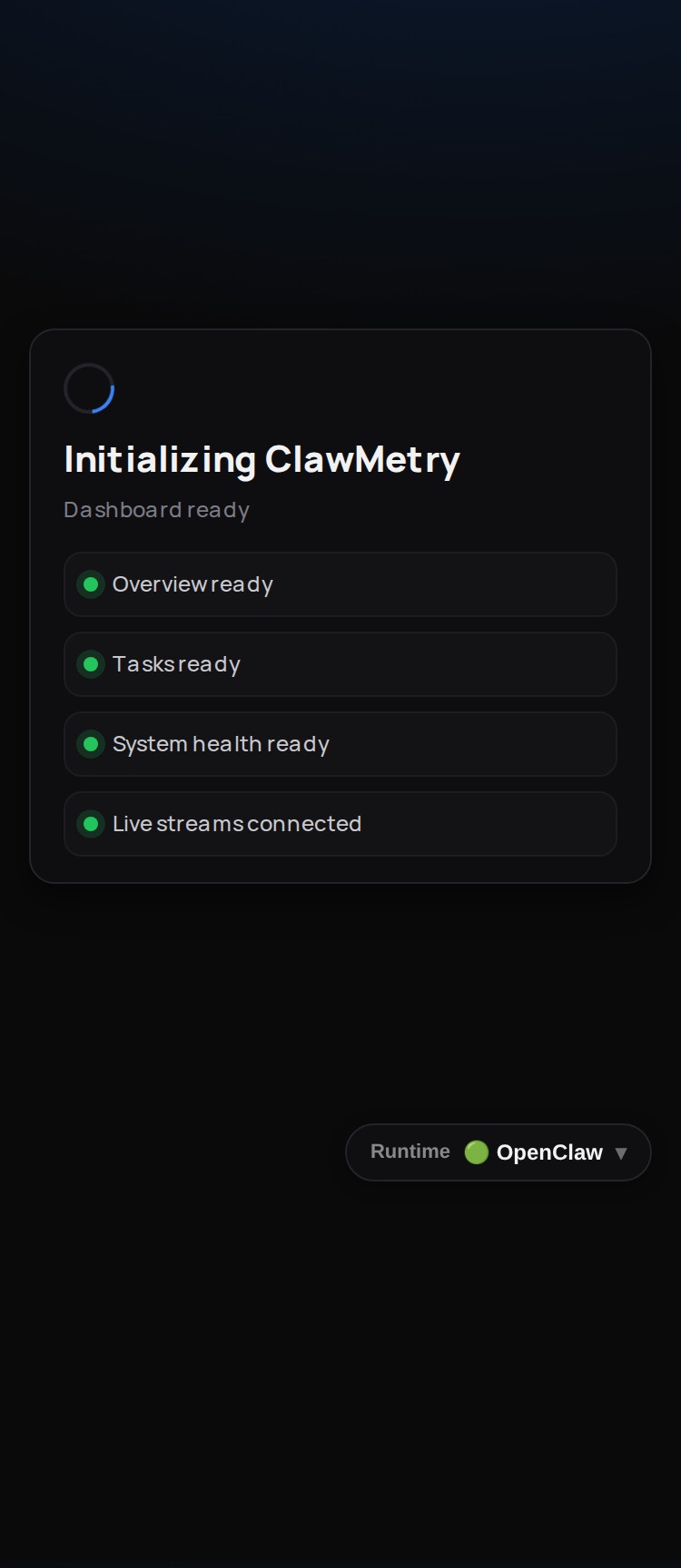

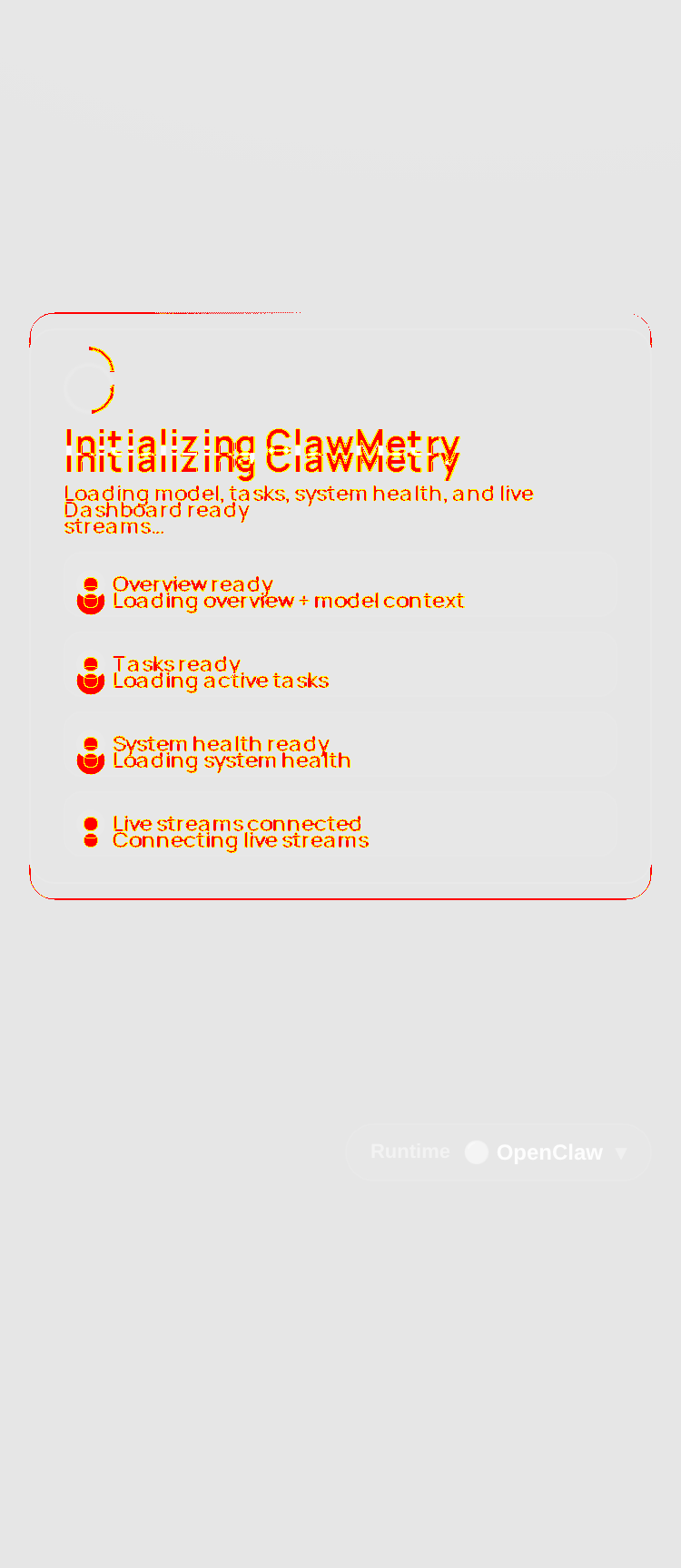

mobile channels ⚠️	before	after	diff · 1.61%

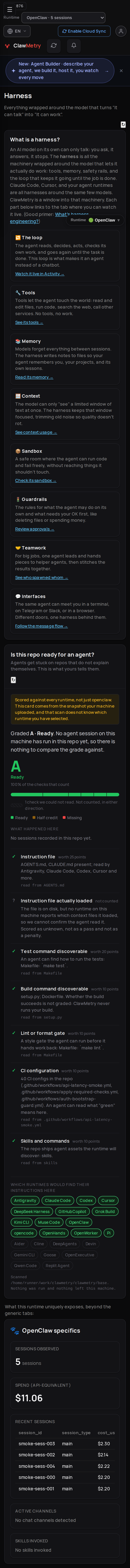

mobile harness	before	after	diff · 0.00%

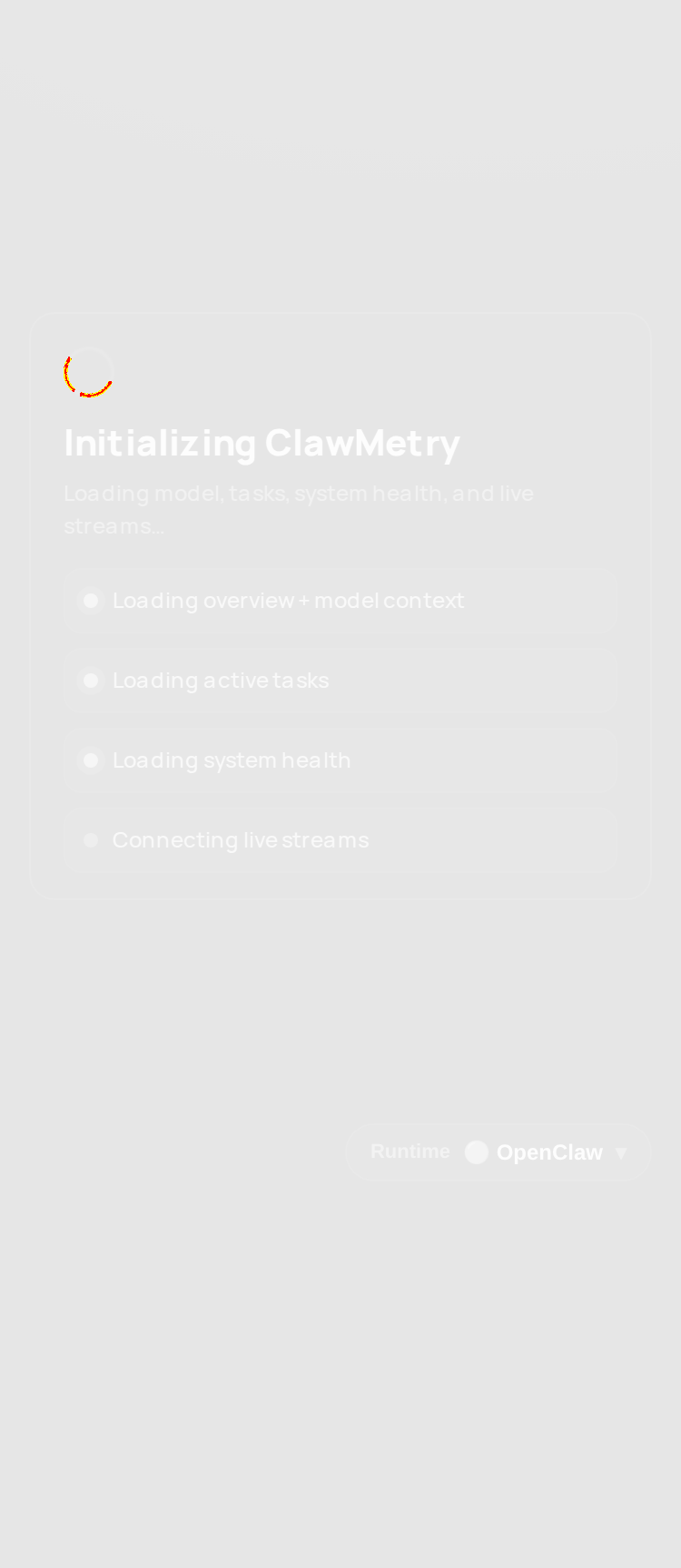

mobile inventory	before	after	diff · 0.02%

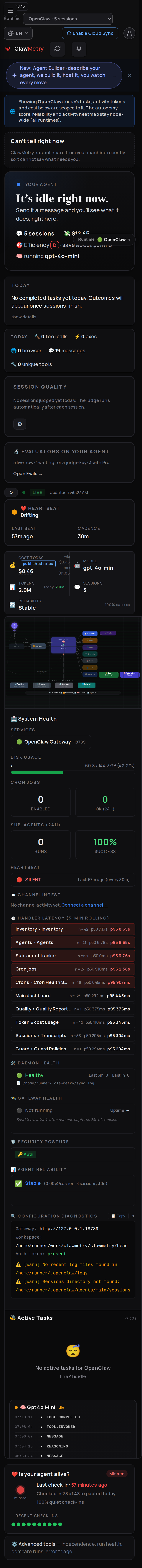

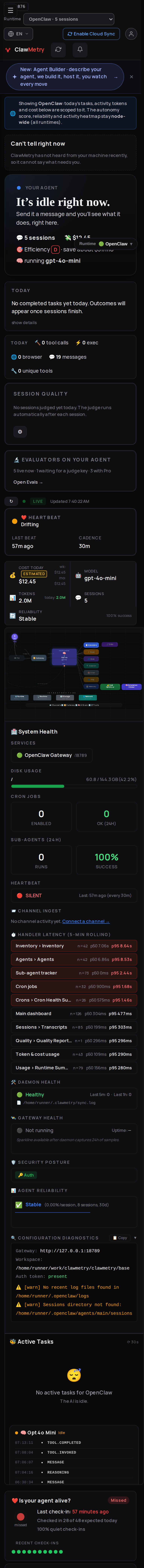

mobile nemoclaw ⚠️	before	after	diff · 100.00%

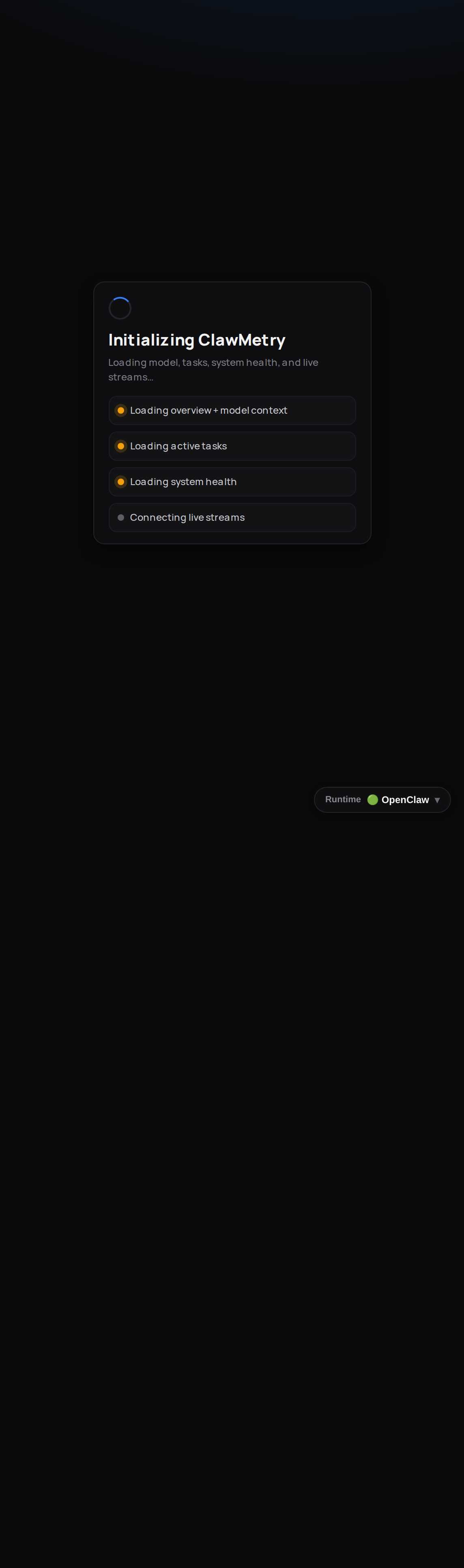

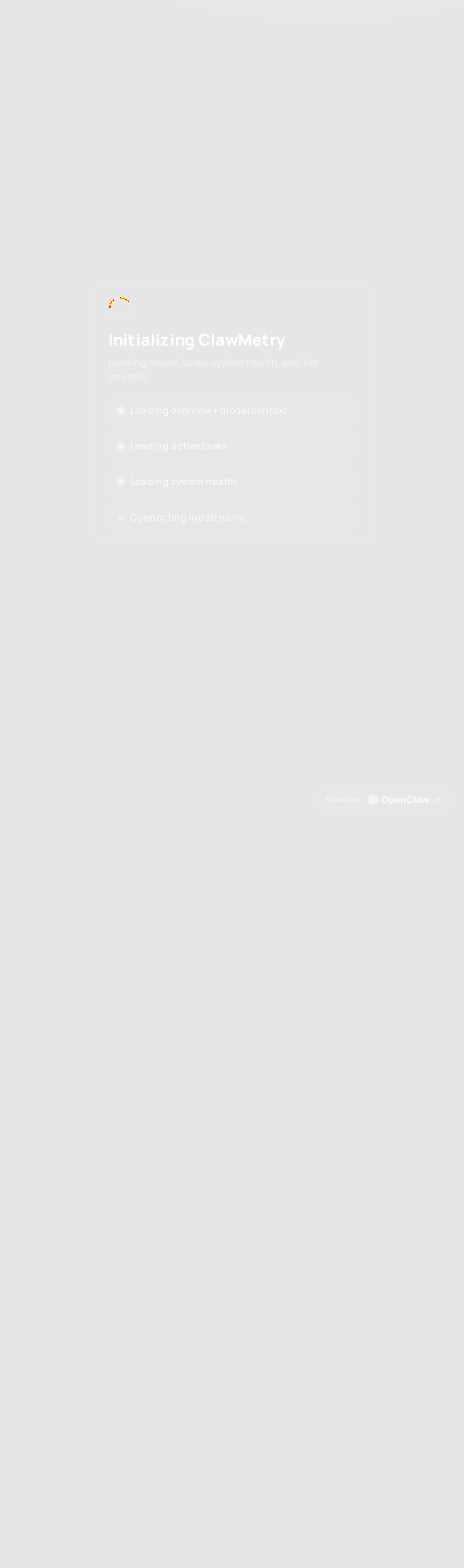

mobile guard	before	after	diff · 0.00%

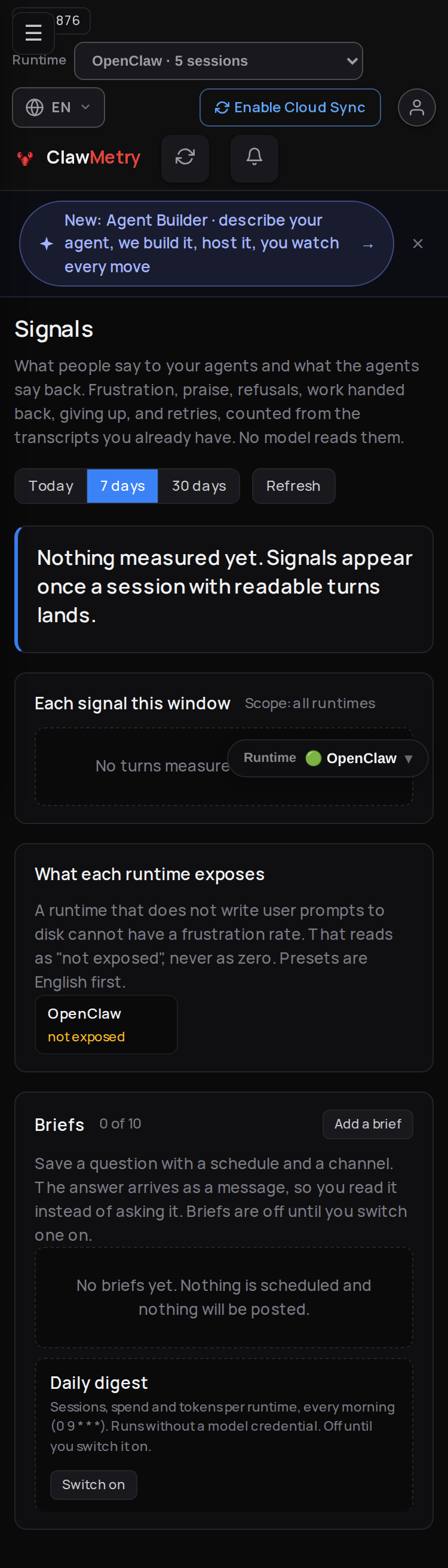

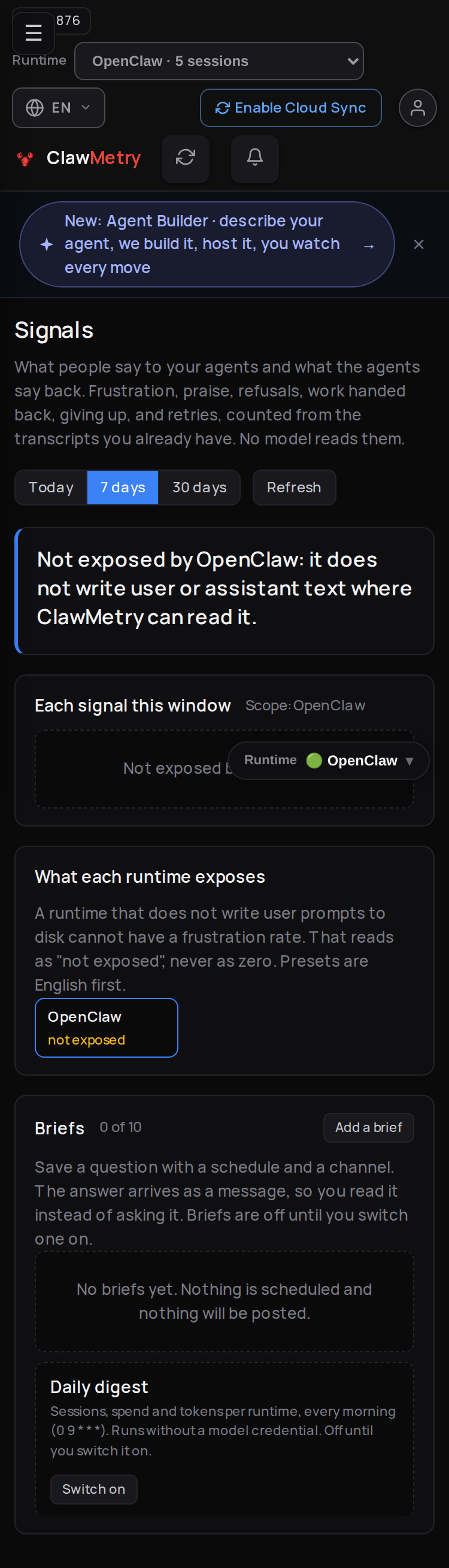

mobile signals ⚠️	before	after	diff · 100.00%

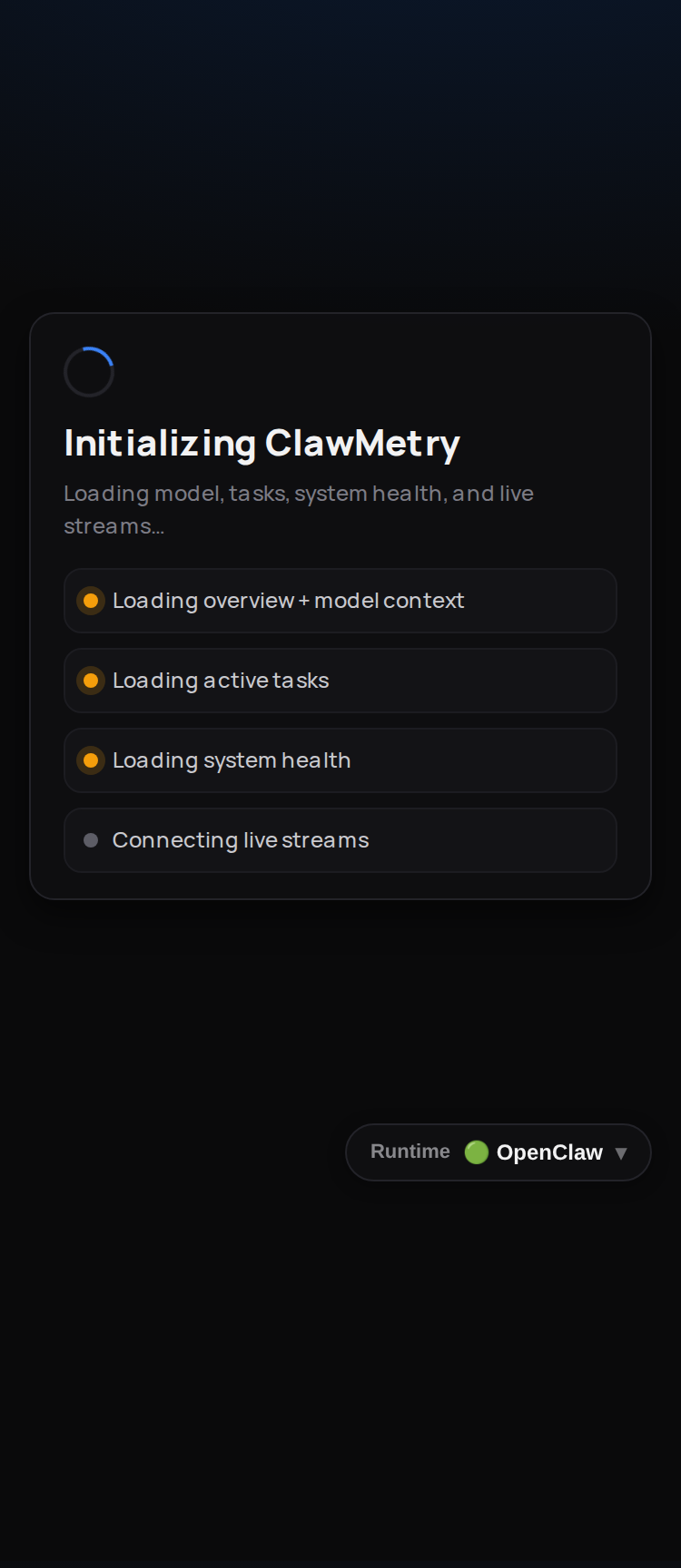

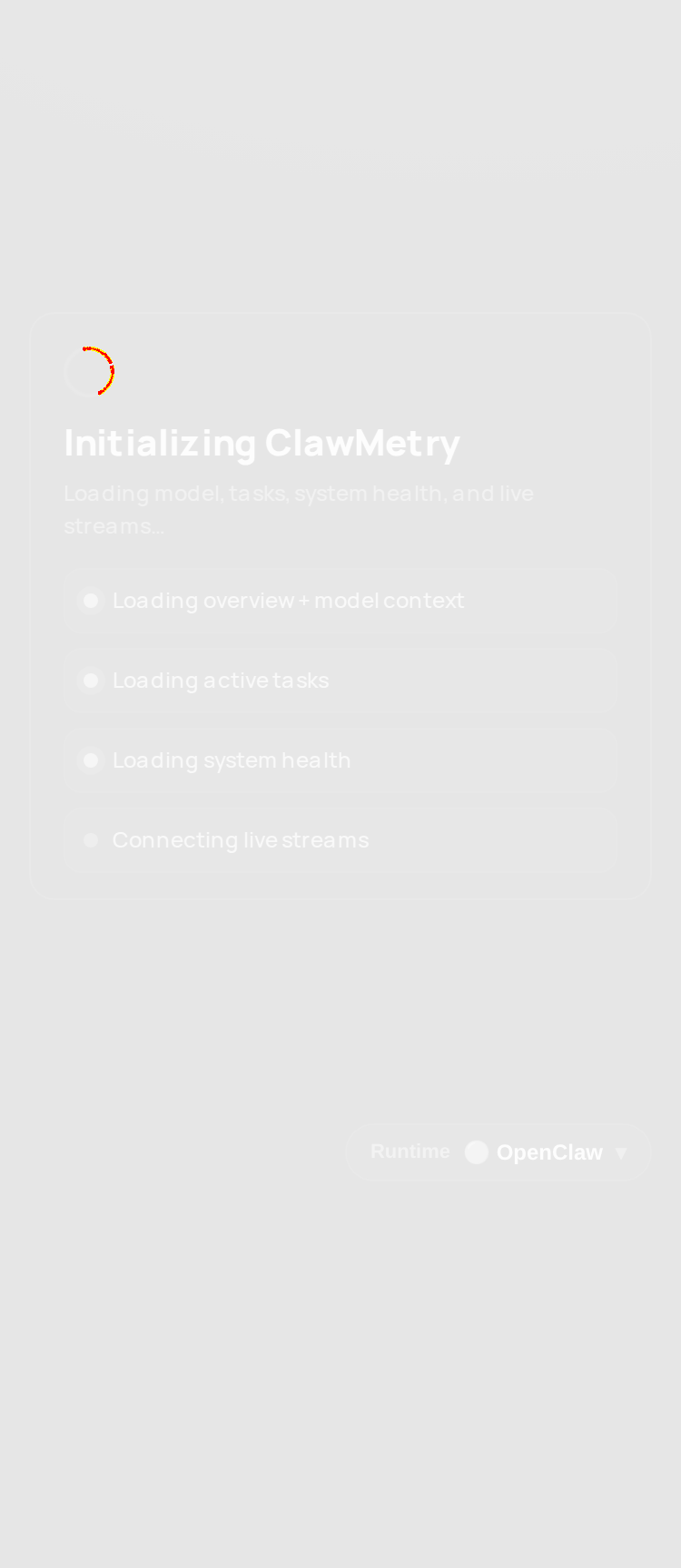

mobile policy	before	after	diff · 0.02%

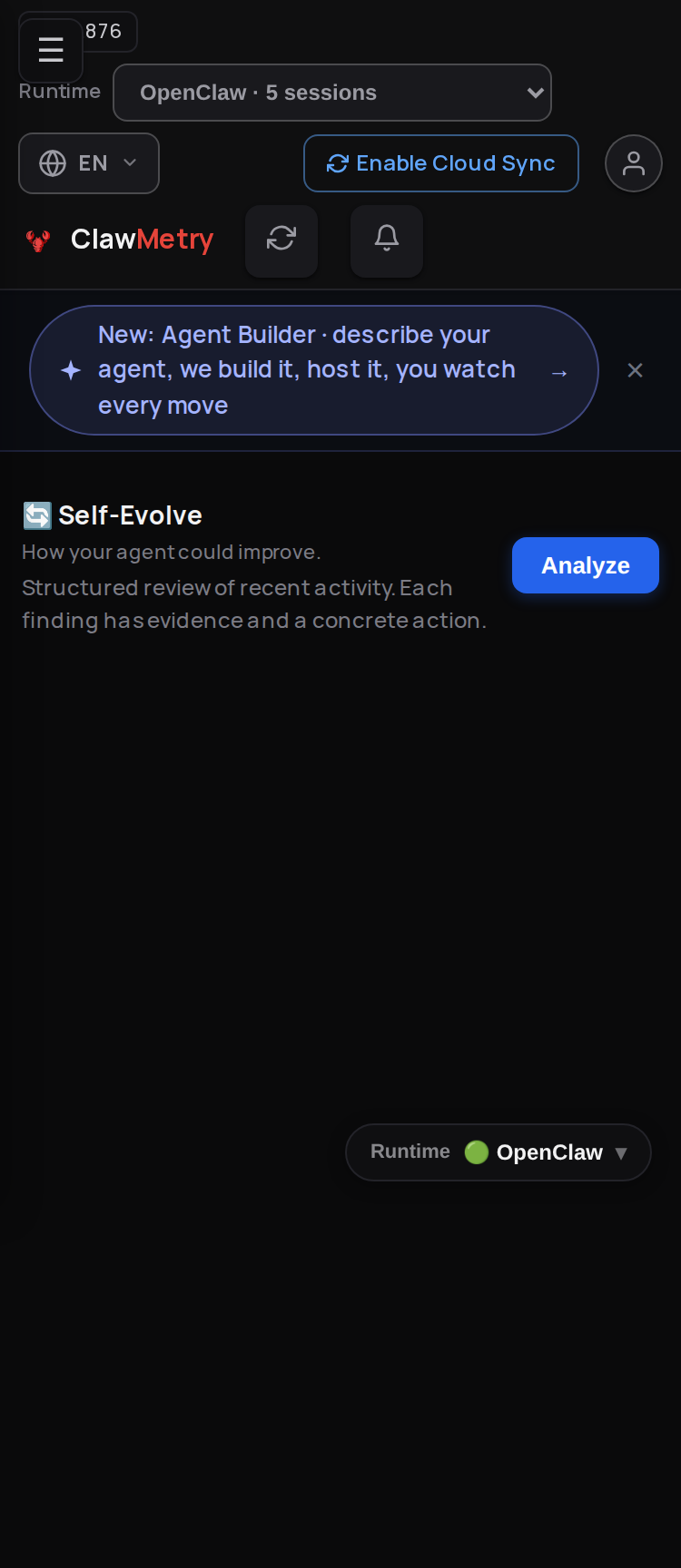

mobile selfevolve ⚠️	before	after	diff · 100.00%

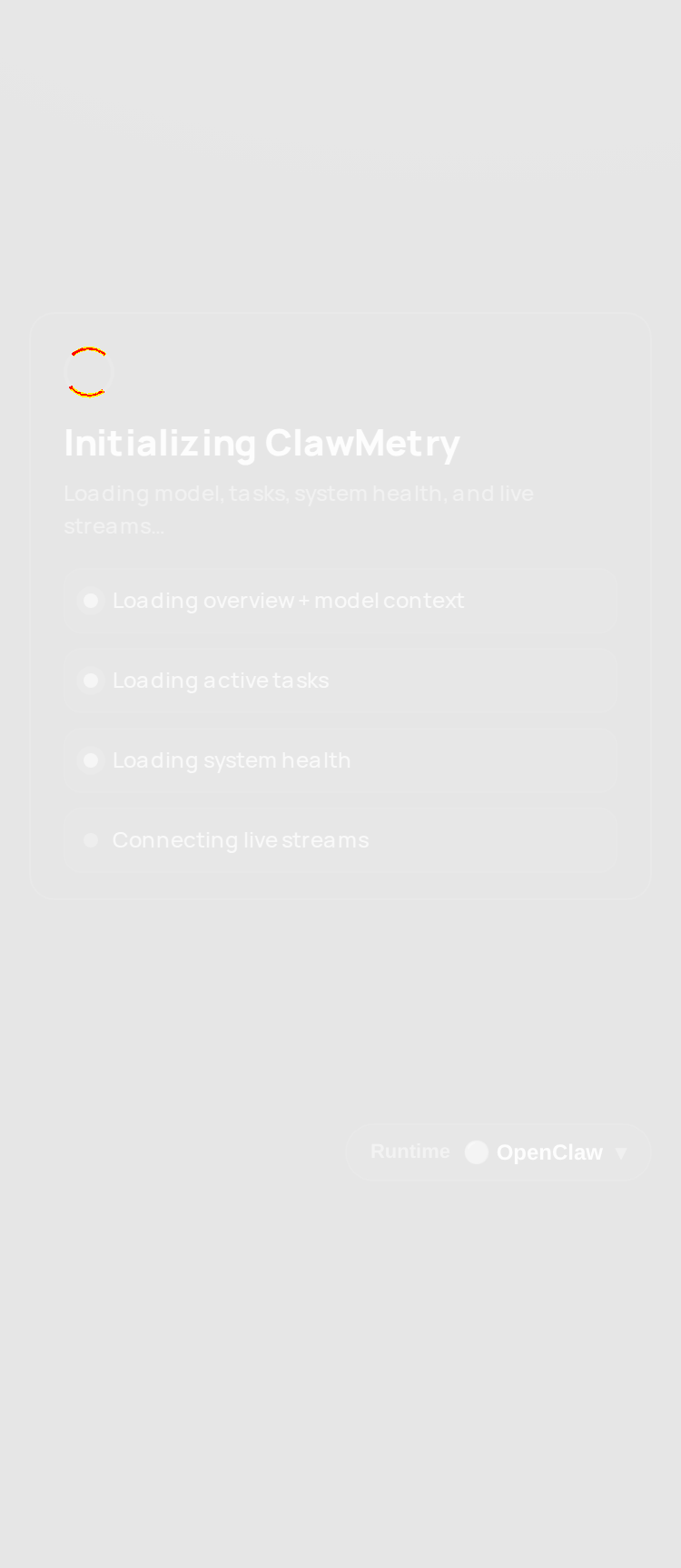

mobile swimlane	before	after	diff · 0.01%

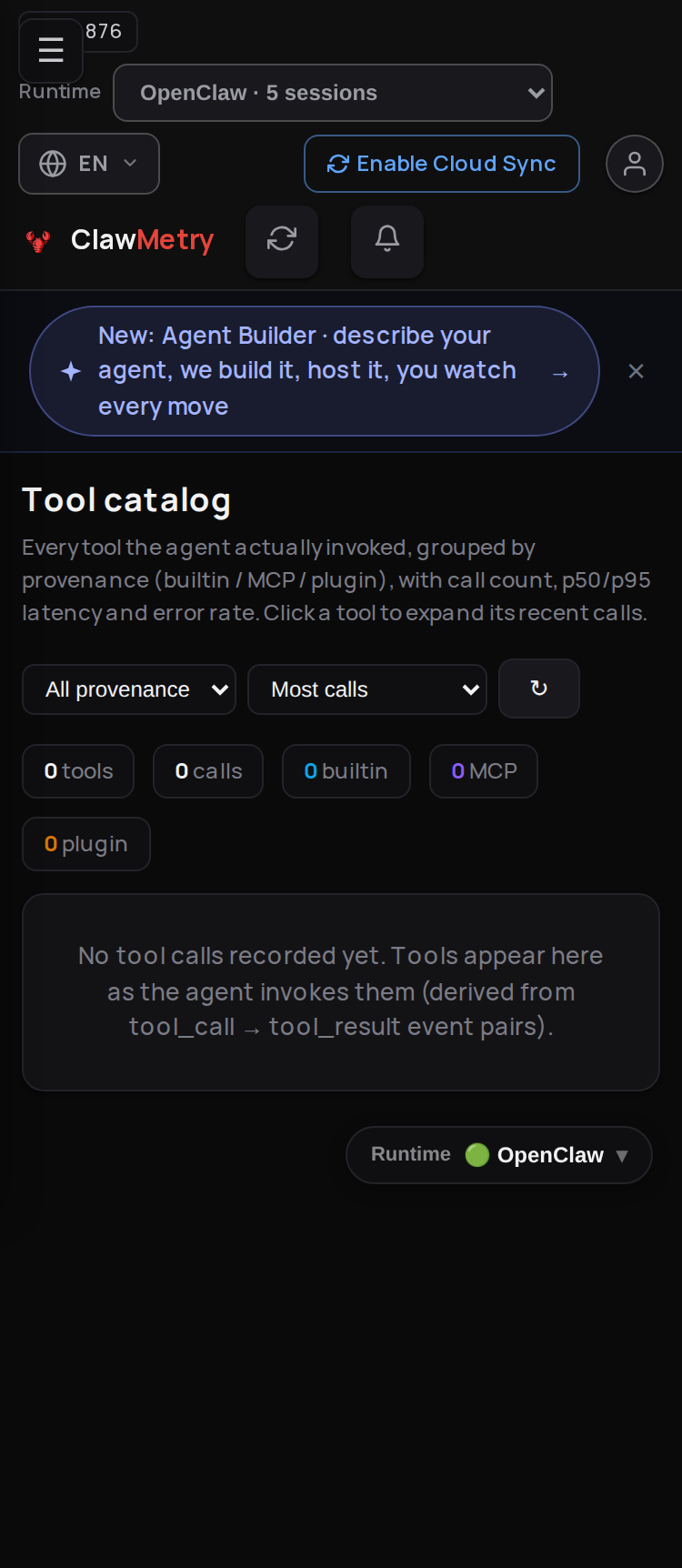

mobile tool-catalog ⚠️	before	after	diff · 100.00%

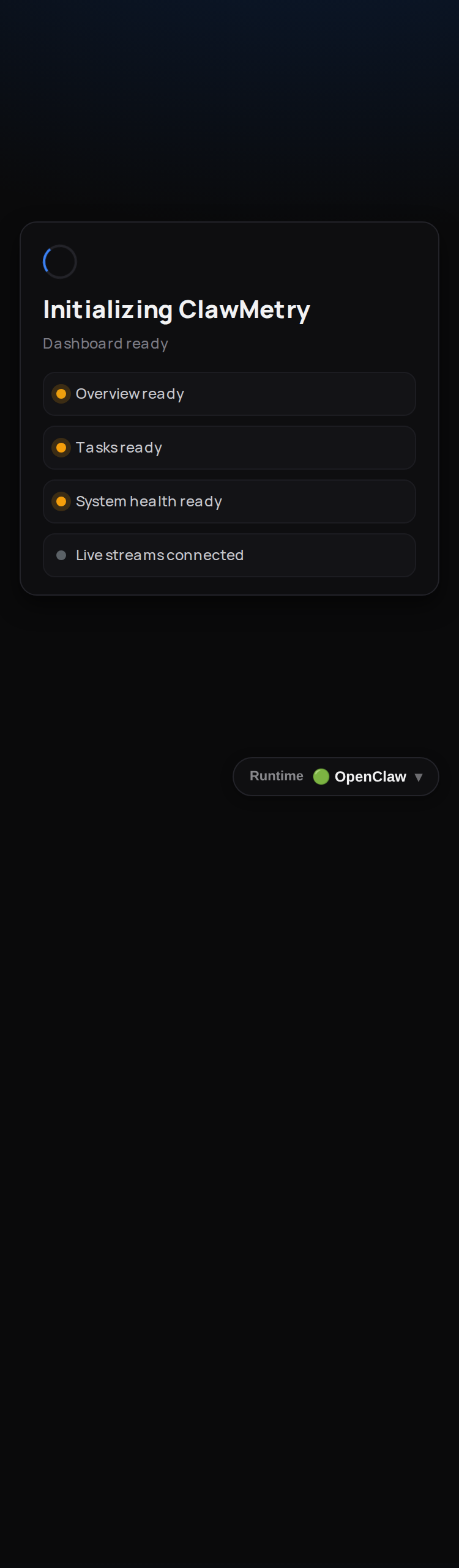

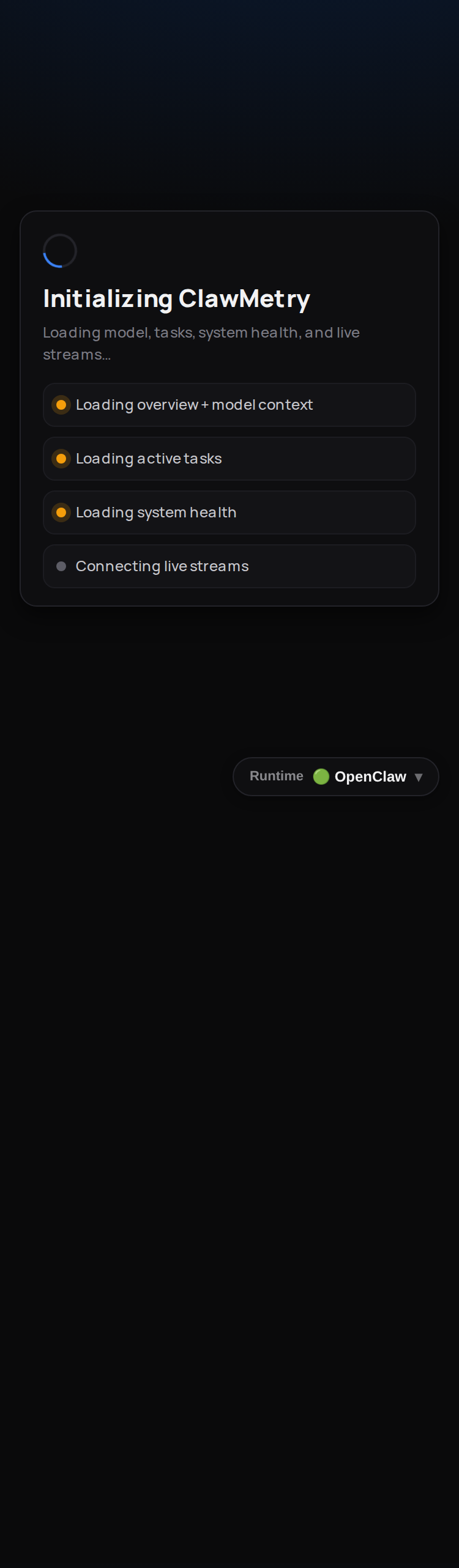

mobile tracing ⚠️	before	after	diff · 1.14%

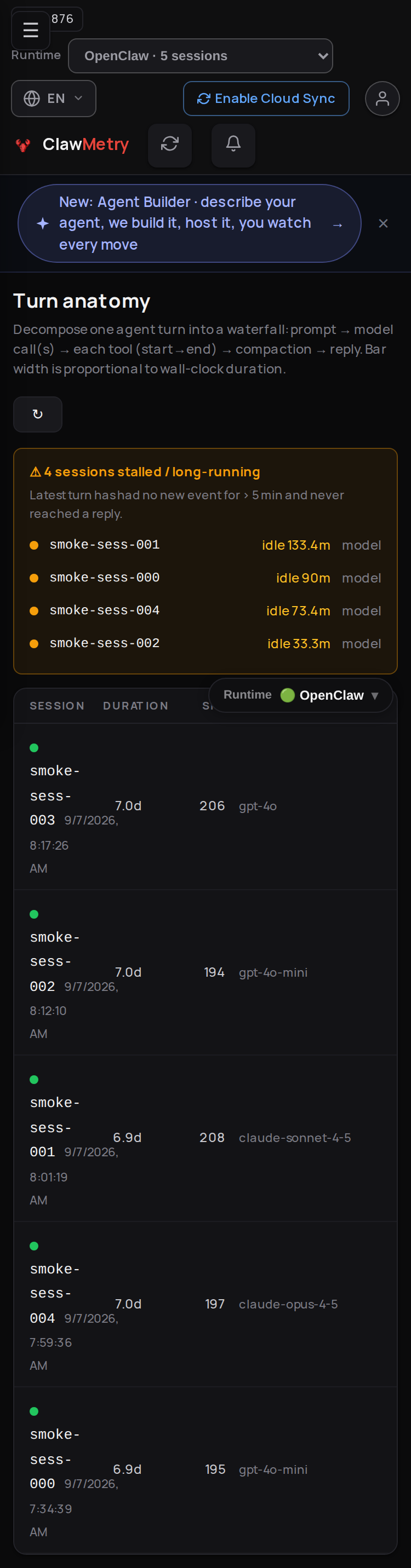

mobile turn-anatomy ⚠️	before	after	diff · 100.00%

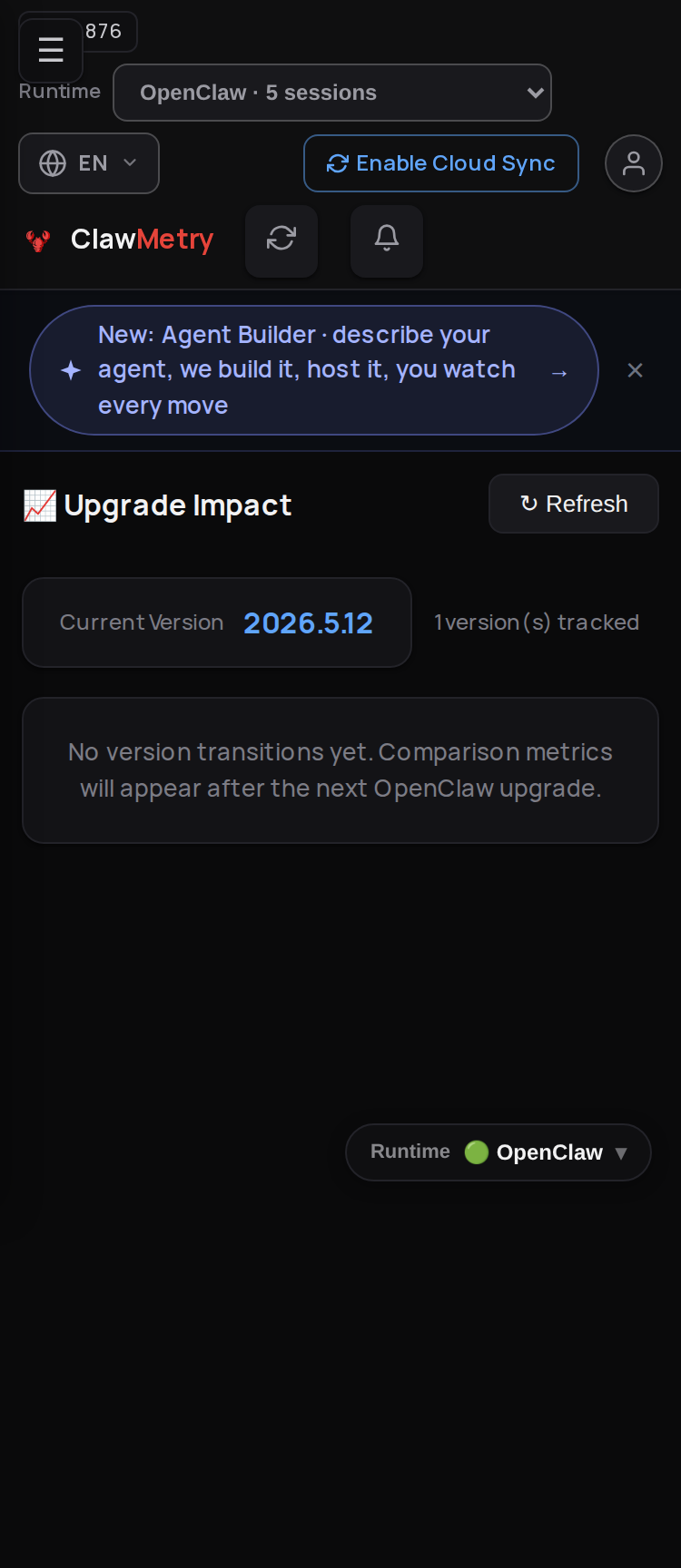

mobile version-impact ⚠️	before	after	diff · 3.18%

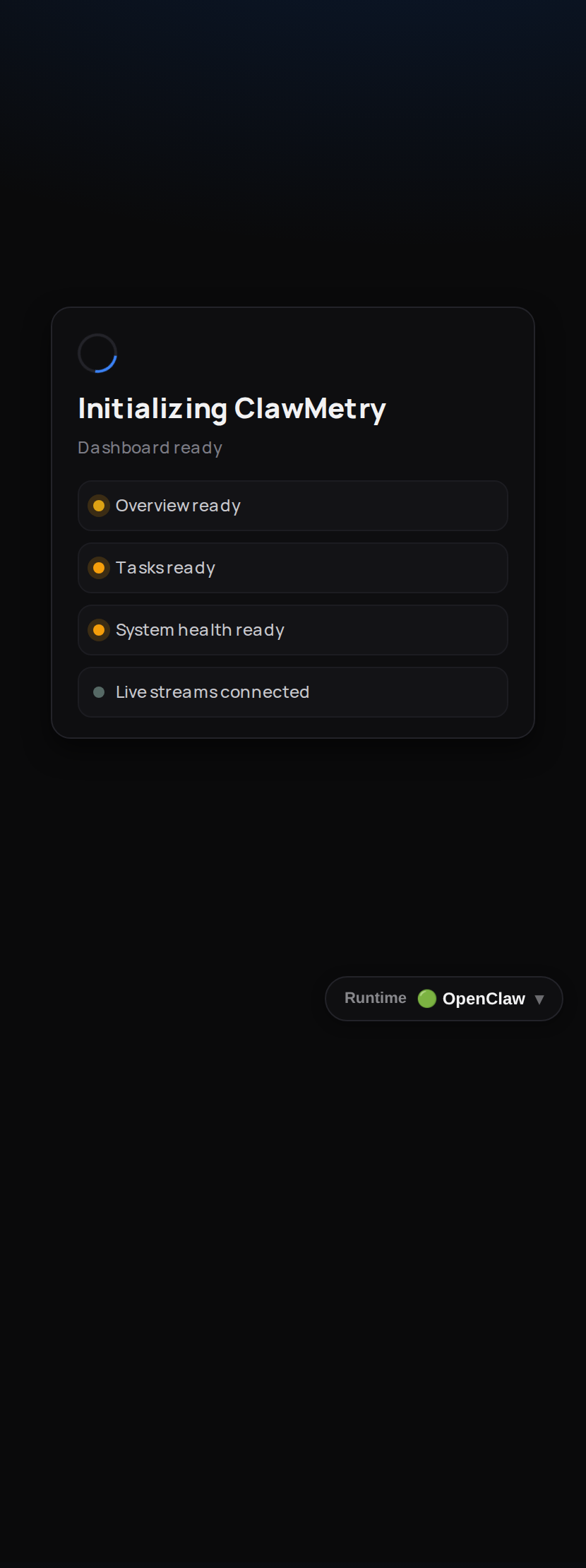

mobile context-economics	before	after	diff · 0.02%
mobile agents	before	after	diff · 0.01%
mobile evals	before	after	diff · 0.01%
mobile bench	before	after	diff · 0.00%

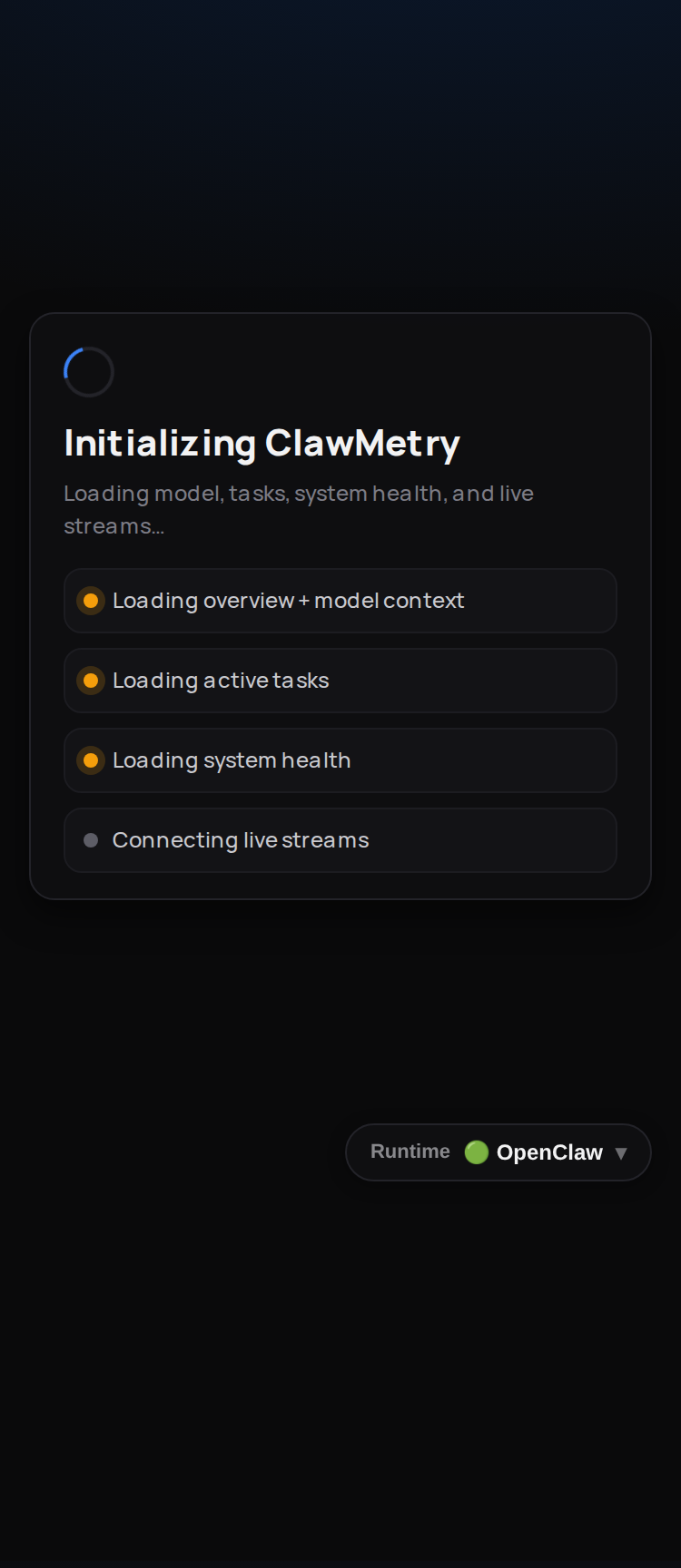

mobile trail	before	after	diff · 0.01%

Folder: c5c84c81a8e0. Full PNGs also attached as a workflow artefact.

Generated by visual-diff bot. Pixel diffs >1% flagged; eyeball the table before merging. This check is non-blocking — fail = bot bug, not a code problem.

vivekchand · 2026-09-14T06:37:32Z

Coordinator review

Verdict: fix before merge. One blocking item. Most of the PR holds up: the vocabulary, the evidence rule, the removed zero-bill copy, the focus tip, and the tightened ratchets.

Reviewed head 5fa9794fa9, which is rebased on current origin/main (658342f238). CI is green (47 pass, Scorecard skipped); the PR is MERGEABLE and CLEAN. I reran tests/test_cost_basis_labels.py, test_provenance.py and test_provenance_render_coverage.py in a scratch venv: 58 passed.

Blocking

1. AC-OBS-CEA-025.1 is marked met, but two of its named surfaces still show cost figures with no visible basis.

The criterion says "Every cost figure on ... the per-session cost breakdown, the Flow brain panel ... shown as visible text beside the figure." Its evidence is API-level only (/api/sessions/cost-breakdown returns cost_basis). These renders are still unlabelled:

Usage tab, session cost chart and table.
- loadUsage() keeps only window._sessionCostData = cbd.top10, so the payload's provenance is dropped before rendering.
- renderSessionCostChart() then draws '$' + cost.toFixed(4) on the canvas bars and in the table's Cost column, with no badge.
- Both elements are live: templates/tabs/usage.html:140-141.
Flow brain panel, per-call list.
- loadBrainData() at app.js:26620-26628 prints c.cost, a pre-formatted "$0.0123" string from routes/components.py:1788/2016, with no basis.
- Only the summary Cost card was labelled.

AC-025.1 also says every cost figure on the Usage tab is labelled. The PR itself notes that 62 renders in app.js still have no badge. Several are Usage-tab cards: cost comparison, cache analytics, forecast, by-team and spend optimisation.

Fix, either way:

(a) Carry cbd.provenance['top10[].cost_usd'] into renderSessionCostChart and put a cmProv.badge on the Cost column heading, as renderTopSessionsByCost already does. Label the brain call-list column the same way, with a test for each.
(b) Narrow AC-025.1, in the Factory requirement and in docs/acceptance_criteria.json, to the figures actually labelled: the Overview tile, the Usage summary cards and banner, the Top Sessions table, the brain summary card, and the snapshot cost slice. Then list the session cost chart, the brain call list and the other Usage cards under Remaining.

A criterion marked met while its text is false on a live screen is a hidden gap.

Non-blocking (list under Remaining or follow up)

Overview hero chip.
- The 💸 $12.58 chip has no basis, although it is an Overview cost figure (the issue's done-when covers every Overview cost). The PR notes its mismatch with the tile, but not that it is unlabelled.
- With the new "included in your plan, not an extra bill" suffix, a figure of unclear window now carries a financial claim. Worth resolving together.
Tab stops. cmProv.badge() now adds tabindex="0" to every provenance badge, including compact one-letter badges in dense tables and non-cost score badges, which could add dozens of tab stops per tab. Consider limiting focusability to cost badges or non-compact badges.
_setCost fallback. When cmProv is missing it prints a raw float with no $ (String(usage[key])). The path is unreachable because provenance.js loads first, but it is a worse fallback than before.
Visual diff. The 100% flags on usage and brain are only page-height changes (5111→5160 px, 905→906 px), not a regression.
Remaining items listed honestly: Sessions-tab transcript chips, contract and actual spend producers, the cache and window audit, budgets and optimizer basis, the hosted billingCoverage badge pass-through, and the unverified mixed-route banner in a live browser.

Gates checked

Full Factory URL is present, and the product-record gate and drift-bot are green.
The regression guard is meaningful: 12 of 15 tests were red on main per the builder.
No weakened checks: UNBADGED_CEILING 63→62, CI test baseline 920→917, AC baseline tightened.
No new HTTP route, so no cloud route-policy entry is needed.
No customer, deal or partner names; "Claude Max 20x" is a public plan name.
No duplication with Price book contract: negotiated rates, Azure OpenAI deployment aliases, effective dates #5959 (price book), LiteLLM gateway: team-attributed, gateway-reported spend without double counting #5965 or Project attribution and per-project budgets: burn against budget #5968.

🤖 Generated with Claude Code

https://claude.ai/code/session_01Jm9d7s4fN55hN3YzQo75o9

… metered usage kept apart Every cost figure now carries a financial basis beside its provenance basis (usage value at published rates / expected contract spend / allocated actual spend / not available). Contract and actual labels are refused without the rate version or ledger reference they rest on. The Usage coverage banner, cards and info text, the Overview hero and the inventory chip no longer describe subscription-covered usage as a $0 bill: it is shown as value, apart from metered usage, with an undetected route labelled undetected and the plan fee reported as not visible. The Sessions cost chips and the Flow brain panel cost render through the shared badge, which is keyboard-focusable and shows its explanation on focus. Refs #5937 (REQ-OBS-CEA-025). Co-Authored-By: Claude Opus 5 <noreply@anthropic.com> Claude-Session: https://claude.ai/code/session_01Jm9d7s4fN55hN3YzQo75o9

…hip edits A CSS ::after tip on the badge was clipped to one line by the Overview tile's overflow:hidden, and hiding it on scroll hid it the moment Tab navigation scrolled the badge into view. provenance.js now shows one fixed tip on <body> on :focus-visible and follows the badge on scroll. loadSessions() writes to #sessions-list, which no template renders, so its chip edits could not be verified and are reverted. The live Sessions-tab transcript chips are listed as not in this change. Refs #5937 (REQ-OBS-CEA-025). Co-Authored-By: Claude Opus 5 <noreply@anthropic.com> Claude-Session: https://claude.ai/code/session_01Jm9d7s4fN55hN3YzQo75o9

Review of #5975 found AC-OBS-CEA-025.1 claimed on screens that still printed unlabelled costs: - loadUsage kept only cbd.top10 and dropped the cost breakdown's provenance, so the session cost chart and its table printed bare dollar figures. The entry now travels with the rows: a caption above the canvas bars and a badge on the Cost column, with an unknown cost reading "not available" instead of $0.0000. - The Flow brain panel's per-call list printed a pre-formatted string. Each call now carries cost_usd (null when it had tokens but no price) under one calls[].cost_usd entry, rendered as "Cost per call: published rates". The colour thresholds are checked largest first, so red is reachable. AC-OBS-CEA-025.1 is narrowed, in the Factory requirement and the mirror, to the figures that are actually labelled. The other Usage cost cards and the Overview hero chip are named as a non-goal instead of being claimed. Three new tests run the shipped renderers under node and the payload builder in Python; all three fail on the previous head. Co-Authored-By: Claude Opus 5 <noreply@anthropic.com> Claude-Session: https://claude.ai/code/session_01Jm9d7s4fN55hN3YzQo75o9

8090-software-factory · 2026-09-14T06:53:59Z

✅ Drift Bot (ClawMetry): no drift detected

Drift Bot analyzed the changed files against this project's blueprints and requirements and found no drift.

vivekchand · 2026-09-14T06:56:49Z

Review follow-up (head 79c7121). This addresses the blocking item on AC-OBS-CEA-025.1.

Option (a), for the two screens you named:

Usage session cost chart and table. loadUsage() now keeps cbd.provenance['top10[].cost_usd'], stored as window._sessionCostEntry. renderSessionCostChart() then renders:
- a caption above the canvas: "Bar values and the Cost column: published rates";
- a cmProv.badge on the Cost column heading;
- each cost cell through cmProv.figure, so a null cost reads "not available", not $0.0000.
Flow brain per-call list.
- _brain_call_costs() in routes/components.py gives every call a numeric cost_usd, which is null when the call had tokens but no price. The list is labelled once, as calls[].cost_usd. Both the DuckDB path and the transcript path go through it.
- loadBrainData() renders "Cost per call: published rates" above the list, and each cell through cmProv.figure.
- The colour thresholds are now checked largest first.

Option (b), for the rest. AC-025.1 is narrowed in the Factory requirement (tracked edit) and in docs/acceptance_criteria.json to the figures that actually carry a label. The other Usage cost cards (spend flow, forecast, cache re-read tax, cache hit rate, plugin/skill, comparison, spend optimization, skill leaderboard, team) and the Overview hero chip are now a named non-goal and are listed under Remaining in the PR body. They are no longer claimed.

Guards. There are 3 new tests in tests/test_cost_basis_labels.py. They run the shipped renderSessionCostChart and loadBrainData under node, plus the Python payload builder. All 3 fail on the previous head b2b438f5e6 (checked in a separate detached worktree), and all 18 pass on this head. The render ratchet stays at 62, and check_ac_coverage --check is OK.

Browser check. Scratch HOME seeded with today's OpenClaw transcript, random port, Chrome:

Usage tab: the caption and the Cost-column badge both read "published rates". The row reads $0.0042.
Brain panel: the list is headed "Cost per call: published rates". The badge takes keyboard focus (tabindex=0), and its tip gives the formula, the window, the rate source and the source.

Non-blocking notes:

Hero chip: now listed under Remaining.
Visual-diff flags: page height only, as you found.
tabindex on every badge: not changed. It is listed under Remaining as a follow-up.

Regenerate the generated inventory so the gen_module_map --check lint guard passes on CI. Co-Authored-By: Claude Sonnet 4.6 <noreply@anthropic.com> Claude-Session: https://claude.ai/code/session_01KUtV6jyUVMhBRWXjSSef9S

8090-software-factory · 2026-09-14T07:08:32Z

✅ Drift Bot (ClawMetry): no drift detected

Drift Bot analyzed the changed files against this project's blueprints and requirements and found no drift.

vivekchand · 2026-09-14T09:07:30Z

Ready to merge. Every blocking review item is addressed (see the review follow-up comment above). CI is green, drift-bot and the product-record gate pass, and GitHub reports the PR as mergeable and CLEAN. I have not merged it.

Merge-after dependencies: none. The PR is branched off main and not stacked. #5959 (price book) is a conceptual dependency only. If #5959 merges first, the overlap is additive: CHANGELOG.md, docs/acceptance_criteria.json and docs/ac_coverage_baseline.json. Rebase, keep both sides, and regenerate the baseline with python3 scripts/check_ac_coverage.py --update-baseline.

Companion PRs: none. No new HTTP route, so there is no cloud_route_policy entry and no cloud PR.

Factory: the AC-OBS-CEA-025.1 narrowing and the new non-goal are pending tracked suggestions on https://factory.8090.ai/project/b415065f-ab2f-4f53-8864-0c009fd098cb/requirements/950d4687-45cc-45a8-9d58-0c0d82fd5d9b. Accept them so the requirement matches the mirror in docs/acceptance_criteria.json.

Post-merge / post-release verification (after the [RELEASE] PR publishes to PyPI):

Install the release in a scratch venv under a scratch HOME, not the real daemon: python3 -m venv /tmp/v && /tmp/v/bin/pip install clawmetry==<released version>.
Seed today's OpenClaw transcript in $HOME/.openclaw/agents/main/sessions/ with one priced assistant call (usage.cost.total), then start the dashboard on a free port.
Check the API over HTTP:
- GET /api/component/brain: every call has cost_usd, and provenance["calls[].cost_usd"].cost_basis == "published_rate".
- GET /api/sessions/cost-breakdown: provenance["top10[].cost_usd"].cost_basis_label == "published rates".
- GET /api/usage: covered_usd has billing route subscription, plan_fee_usd is null, and no entry claims contract or allocated_actual.
Check the pages in a browser:
- Usage tab: the session cost chart caption reads "Bar values and the Cost column: published rates", and the Cost column heading has the same badge.
- Flow, Brain node: the list heading reads "Cost per call: published rates".
- Overview: the spend tile has a "published rates" badge, and Tab-focusing it shows the formula and rate source below the badge.
- Wording: no page says "free on your plan", "billed to you" or "out-of-pocket".
After the cloud pin auto-bumps to the release, check the hosted dashboard:
- Usage tab: the subscription copy says "not an extra bill", with no $0-bill wording.
- Snapshot: dailyUsage.provenance entries carry cost_basis.
- Known gap: the hosted billingCoverage split renders without a badge. It is listed as a follow-up, not a regression.

Remaining scope stays on #5937; see the Remaining section of the PR body.

🤖 Generated with Claude Code

https://claude.ai/code/session_01Jm9d7s4fN55hN3YzQo75o9

…s, effective dates A local price book (~/.clawmetry/pricing.json, schema clawmetry.price_book/1) with exact/prefix/pattern entries, effective_from/effective_to, rates or a discount off the published rate, and Azure deployment aliases scoped to their resource. POST /api/pricing/resolve says which entry applies to each usage record and why; GET /api/pricing/book shows the validated book, rejected entries and recorded content-addressed versions; POST /api/pricing/valuations defines the contract a future engine answers (501 until one exists). The interceptor now captures Azure OpenAI calls with their deployment and host. Integrated with the cost basis labels (#5975): every figure this surface returns carries the shared cost_basis vocabulary. A list figure is published_rate, no amount is unknown, and a contract valuation goes through cost_basis.label, so it cannot claim "contract rate" without its rate version. Rebased onto current main as one commit. acceptance_criteria.json carries the AC-OBS-CEA-024 block once (earlier merges had duplicated it and the AC-GOV-FWM block). The CHANGELOG entry is left to the release. Refs #5936. Co-Authored-By: Claude Opus 5 <noreply@anthropic.com> Claude-Session: https://claude.ai/code/session_01Jm9d7s4fN55hN3YzQo75o9

Attributes each session's spend to a project derived when read (operator assignment, else the recorded git repository containing its cwd, else the directory, else a visible Unassigned row), with per-project budgets on a declared period, timezone, currency and basis, 50/80/100% alerts latched once per budget period, and GET /api/usage/export?by=project. A budget on a repository keeps counting its sessions after that repository is assigned to a named project, and reports the named project under reported_under. The usage-bucket cache key snaps to a 15-minute edge so daemon ticks reuse it. Rebased on main as one commit. Integrated with the cost basis labels (#5975): /api/projects, /api/projects/budgets and /api/projects/budgets/alerts now stamp every dollar figure as usage value at published rates through clawmetry.cost_basis, the CSV carries a cost_basis column, and the alert text and notice say "at published rates, not an invoice" instead of "estimated spend". The CHANGELOG entry is left to the release. Refs #5941. REQ-OBS-PRJ-001. Co-Authored-By: Claude Opus 5 <noreply@anthropic.com> Claude-Session: https://claude.ai/code/session_01Jm9d7s4fN55hN3YzQo75o9

… CHANGELOG entry Builds on c1b7fed (which routed gatewayMoney through cmFigure with a hardcoded client-side entry). The label now comes from the server, in the one cost vocabulary (clawmetry/cost_basis.py): gateway_litellm stamps provenance on the gateway object with basis measured, cost_basis published_rate, and a rate_source naming LiteLLM (ClawMetry does not re-price it). A null cost renders the unknown state "not reported" via a cost_basis unknown entry, not a plain string. The column header carries the badge; the exact reported amount stays in the tooltip, so a fraction of a cent is not rounded away. The gateway object's top-level `cost_basis: "gateway_reported"` collided with that vocabulary and is renamed `cost_source` (the ledger row's name). CI script, test and docs/LITELLM.md updated. CHANGELOG.md restored to main's version (release notes are written at release time). Revert-proof: the new test assertions and the unbadged-render ratchet both fail against the previous gateway_litellm.py / app.js and pass with this. Co-Authored-By: Claude Opus 5 <noreply@anthropic.com> Claude-Session: https://claude.ai/code/session_01Jm9d7s4fN55hN3YzQo75o9

Publishes the six merged changes listed in CHANGELOG.md: Cost Optimizer honesty (#5951), cost basis labels (#5975), framework IDs on Guard findings (#5952), ATLAS replay scorecard (#5961), PR provenance SARIF (#5974), and the Copilot VS Code control refusal (#5954). Claude-Session: https://claude.ai/code/session_01Jm9d7s4fN55hN3YzQo75o9 Co-authored-by: Claude Opus 5 <noreply@anthropic.com>

…s, effective dates (#5959) * Price book contract: negotiated rates, Azure OpenAI deployment aliases, effective dates A local price book (~/.clawmetry/pricing.json, schema clawmetry.price_book/1) with exact/prefix/pattern entries, effective_from/effective_to, rates or a discount off the published rate, and Azure deployment aliases scoped to their resource. POST /api/pricing/resolve says which entry applies to each usage record and why; GET /api/pricing/book shows the validated book, rejected entries and recorded content-addressed versions; POST /api/pricing/valuations defines the contract a future engine answers (501 until one exists). The interceptor now captures Azure OpenAI calls with their deployment and host. Integrated with the cost basis labels (#5975): every figure this surface returns carries the shared cost_basis vocabulary. A list figure is published_rate, no amount is unknown, and a contract valuation goes through cost_basis.label, so it cannot claim "contract rate" without its rate version. Rebased onto current main as one commit. acceptance_criteria.json carries the AC-OBS-CEA-024 block once (earlier merges had duplicated it and the AC-GOV-FWM block). The CHANGELOG entry is left to the release. Refs #5936. Co-Authored-By: Claude Opus 5 <noreply@anthropic.com> Claude-Session: https://claude.ai/code/session_01Jm9d7s4fN55hN3YzQo75o9 * chore: regenerate MODULE_MAP.md (259 modules after price-book additions) Co-Authored-By: Claude Sonnet 4.6 <noreply@anthropic.com> Claude-Session: https://claude.ai/code/session_017cF1pNfkt6jLiKc8qF9Zro --------- Co-authored-by: Claude Opus 5 <noreply@anthropic.com>

Attributes each session's spend to a project derived when read (operator assignment, else the recorded git repository containing its cwd, else the directory, else a visible Unassigned row), with per-project budgets on a declared period, timezone, currency and basis, 50/80/100% alerts latched once per budget period, and GET /api/usage/export?by=project. A budget on a repository keeps counting its sessions after that repository is assigned to a named project, and reports the named project under reported_under. The usage-bucket cache key snaps to a 15-minute edge so daemon ticks reuse it. Rebased on main as one commit. Integrated with the cost basis labels (#5975): /api/projects, /api/projects/budgets and /api/projects/budgets/alerts now stamp every dollar figure as usage value at published rates through clawmetry.cost_basis, the CSV carries a cost_basis column, and the alert text and notice say "at published rates, not an invoice" instead of "estimated spend". The CHANGELOG entry is left to the release. Refs #5941. REQ-OBS-PRJ-001. Co-Authored-By: Claude Opus 5 <noreply@anthropic.com> Claude-Session: https://claude.ai/code/session_01Jm9d7s4fN55hN3YzQo75o9

… CHANGELOG entry Builds on c1b7fed (which routed gatewayMoney through cmFigure with a hardcoded client-side entry). The label now comes from the server, in the one cost vocabulary (clawmetry/cost_basis.py): gateway_litellm stamps provenance on the gateway object with basis measured, cost_basis published_rate, and a rate_source naming LiteLLM (ClawMetry does not re-price it). A null cost renders the unknown state "not reported" via a cost_basis unknown entry, not a plain string. The column header carries the badge; the exact reported amount stays in the tooltip, so a fraction of a cent is not rounded away. The gateway object's top-level `cost_basis: "gateway_reported"` collided with that vocabulary and is renamed `cost_source` (the ledger row's name). CI script, test and docs/LITELLM.md updated. CHANGELOG.md restored to main's version (release notes are written at release time). Revert-proof: the new test assertions and the unbadged-render ratchet both fail against the previous gateway_litellm.py / app.js and pass with this. Co-Authored-By: Claude Opus 5 <noreply@anthropic.com> Claude-Session: https://claude.ai/code/session_01Jm9d7s4fN55hN3YzQo75o9

Attributes each session's spend to a project derived when read (operator assignment, else the recorded git repository containing its cwd, else the directory, else a visible Unassigned row), with per-project budgets on a declared period, timezone, currency and basis, 50/80/100% alerts latched once per budget period, and GET /api/usage/export?by=project. A budget on a repository keeps counting its sessions after that repository is assigned to a named project, and reports the named project under reported_under. The usage-bucket cache key snaps to a 15-minute edge so daemon ticks reuse it. Rebased on main as one commit. Integrated with the cost basis labels (#5975): /api/projects, /api/projects/budgets and /api/projects/budgets/alerts now stamp every dollar figure as usage value at published rates through clawmetry.cost_basis, the CSV carries a cost_basis column, and the alert text and notice say "at published rates, not an invoice" instead of "estimated spend". The CHANGELOG entry is left to the release. Refs #5941. REQ-OBS-PRJ-001. Co-Authored-By: Claude Opus 5 <noreply@anthropic.com> Claude-Session: https://claude.ai/code/session_01Jm9d7s4fN55hN3YzQo75o9

…t) (#5968) * Project attribution and per-project budgets: burn against budget (#5941) Attributes each session's spend to a project derived when read (operator assignment, else the recorded git repository containing its cwd, else the directory, else a visible Unassigned row), with per-project budgets on a declared period, timezone, currency and basis, 50/80/100% alerts latched once per budget period, and GET /api/usage/export?by=project. A budget on a repository keeps counting its sessions after that repository is assigned to a named project, and reports the named project under reported_under. The usage-bucket cache key snaps to a 15-minute edge so daemon ticks reuse it. Rebased on main as one commit. Integrated with the cost basis labels (#5975): /api/projects, /api/projects/budgets and /api/projects/budgets/alerts now stamp every dollar figure as usage value at published rates through clawmetry.cost_basis, the CSV carries a cost_basis column, and the alert text and notice say "at published rates, not an invoice" instead of "estimated spend". The CHANGELOG entry is left to the release. Refs #5941. REQ-OBS-PRJ-001. Co-Authored-By: Claude Opus 5 <noreply@anthropic.com> Claude-Session: https://claude.ai/code/session_01Jm9d7s4fN55hN3YzQo75o9 * chore: regenerate MODULE_MAP.md (259→260 modules) for project attribution budgets branch Co-Authored-By: Claude Sonnet 4.6 <noreply@anthropic.com> Claude-Session: https://claude.ai/code/session_01HkHeWgNjveVVQbtiEqkENY --------- Co-authored-by: Claude Opus 5 <noreply@anthropic.com>

vivekchand and others added 3 commits September 14, 2026 08:43

vivekchand force-pushed the feat/cost-basis-labels-5937 branch from 5fa9794 to 79c7121 Compare September 14, 2026 06:53

regen MODULE_MAP.md on feat/cost-basis-labels-5937

c5c84c8

Regenerate the generated inventory so the gen_module_map --check lint guard passes on CI. Co-Authored-By: Claude Sonnet 4.6 <noreply@anthropic.com> Claude-Session: https://claude.ai/code/session_01KUtV6jyUVMhBRWXjSSef9S

github-actions Bot pushed a commit that referenced this pull request Sep 14, 2026

visual diff: PR #5975 @ c5c84c8

b0be5ef

vivekchand added the ready-to-merge label Sep 14, 2026

vivekchand mentioned this pull request Sep 14, 2026

Cost figures: label vendor-reported vs contract vs estimated everywhere; split actual spend from API-equivalent #5937

Open

6 tasks

vivekchand merged commit c80cbff into main Sep 14, 2026
54 of 72 checks passed

vivekchand mentioned this pull request Sep 14, 2026

Price book contract: negotiated rates, Azure OpenAI deployment aliases, effective dates #5959

Merged

vivekchand mentioned this pull request Sep 14, 2026

Project attribution and per-project budgets: burn against budget #5968

Merged

7 tasks

vivekchand mentioned this pull request Sep 14, 2026

LiteLLM gateway: team-attributed, gateway-reported spend without double counting #5965

Merged

vivekchand mentioned this pull request Sep 15, 2026

Cost basis on the remaining Usage cards, the Overview hero chip and Sessions transcript cost chips #6000

Merged

Navigation Menu

Cost basis labels: published-rate usage value, subscription value and metered usage kept apart - #5975

Cost basis labels: published-rate usage value, subscription value and metered usage kept apart#5975
vivekchand merged 4 commits into
mainfrom
feat/cost-basis-labels-5937

vivekchand commented Sep 14, 2026 •

edited

Loading

Uh oh!

8090-software-factory Bot commented Sep 14, 2026

Uh oh!

github-actions Bot commented Sep 14, 2026 •

edited

Loading

Uh oh!

vivekchand commented Sep 14, 2026

Uh oh!

8090-software-factory Bot commented Sep 14, 2026

Uh oh!

vivekchand commented Sep 14, 2026

Uh oh!

8090-software-factory Bot commented Sep 14, 2026

Uh oh!

vivekchand commented Sep 14, 2026

Uh oh!

Uh oh!

Reviewers

Assignees

Labels

Projects

Milestone

Development

Uh oh!

2 participants

Conversation

vivekchand commented Sep 14, 2026 • edited Loading Uh oh! There was an error while loading. Please reload this page.

Uh oh!

Review fixes (79c7121)

Why

What

Verification

Remaining (not in this PR; #5937 stays open)

Uh oh!

8090-software-factory Bot commented Sep 14, 2026

✅ Drift Bot (ClawMetry): no drift detected

Uh oh!

github-actions Bot commented Sep 14, 2026 • edited Loading Uh oh! There was an error while loading. Please reload this page.

Uh oh!

Visual diff

Uh oh!

vivekchand commented Sep 14, 2026

Coordinator review

Blocking

Non-blocking (list under Remaining or follow up)

Gates checked

Uh oh!

8090-software-factory Bot commented Sep 14, 2026

✅ Drift Bot (ClawMetry): no drift detected

Uh oh!

vivekchand commented Sep 14, 2026

Uh oh!

8090-software-factory Bot commented Sep 14, 2026

✅ Drift Bot (ClawMetry): no drift detected

Uh oh!

vivekchand commented Sep 14, 2026

Uh oh!

Uh oh!

Reviewers

Assignees

Labels

Projects

Milestone

Development

Uh oh!

2 participants

vivekchand commented Sep 14, 2026 •

edited

Loading

Review fixes (`79c7121`)

github-actions Bot commented Sep 14, 2026 •

edited

Loading
