Stabilo

Stabilo stabilizes video frames and tracked object trajectories against a chosen reference frame, using robust homography or affine registration with optional exclusion masks for dynamic regions. It is the registration engine behind Geo-trax 🚀 and is tuned with Stabilo-Optimize 🎯.

🎬 An accelerated preview of Stabilo's capabilities. Watch the full 14-second 4K demo on YouTube.

Why Stabilo

• 🎯 Anchored, not smoothed: every frame and every tracked box is aligned to one chosen reference frame, so coordinates stay comparable across the whole video, not just between neighbouring frames.
• 🎭 Masks that ignore moving objects: exclude vehicles, pedestrians, or any dynamic region from registration, using five mask geometries (boxes, oriented boxes, four-point boxes, polygons, circles).
• 🧠 Classical and learned features in one API: 6 classical detectors (ORB, SIFT, RootSIFT, BRISK, KAZE, AKAZE) and 5 learned ones (XFeat, DISK, DeDoDe, KeyNet, LoFTR), paired with classical (BF, FLANN) or learned (LightGlue) matchers, see Feature Detectors and Matchers, all swappable with a single flag.
• ⚡ Two acceleration paths: OpenCV CUDA for the classical pipeline (--gpu) and any PyTorch device for the learned models (--device cuda|mps); see Configuration.
• 📦 Library and CLI: stabilo video and stabilo tracks need no code; the Stabilizer class embeds into your own pipeline in a handful of lines.
• 🔬 Battle-tested: powers the georeferenced trajectory extraction in Geo-trax, benchmarked ground-truth-free by Stabilo-Optimize.

Installation

It is recommended to create and activate a Python virtual environment (Python >= 3.11 and <= 3.13) first:

python3.11 -m venv .venv
source .venv/bin/activate  # On Windows: .venv\Scripts\activate

Alternatives: conda or uv

Miniconda:

conda create -n stabilo python=3.11 -y
conda activate stabilo

uv (fastest; use uv pip install below):

uv venv --python 3.11
source .venv/bin/activate  # On Windows: .venv\Scripts\activate

Install from PyPI:

pip install stabilo

This installs everything, including the learning-based detectors and matchers (kornia + torch). The first time a learned detector or matcher (xfeat, disk, dedode, keynet, loftr, lightglue) is used, its pretrained weights are downloaded into torch's cache directory (~/.cache/torch/hub/checkpoints on Linux/macOS, %USERPROFILE%\.cache\torch\hub\checkpoints on Windows; override with the TORCH_HOME env var) and reused from there on every later run, offline.

Install from local source (for development)

git clone https://github.com/rfonod/stabilo.git
cd stabilo && pip install -e '.[dev]'

Drop -e for a non-editable install, and [dev] if you do not need pytest, ruff, and matplotlib.

Quick Start

data/video.mp4 is a short drone clip bundled for immediate testing, along with per-frame vehicle boxes in data/video.txt. See data/README.md for the reference outputs.

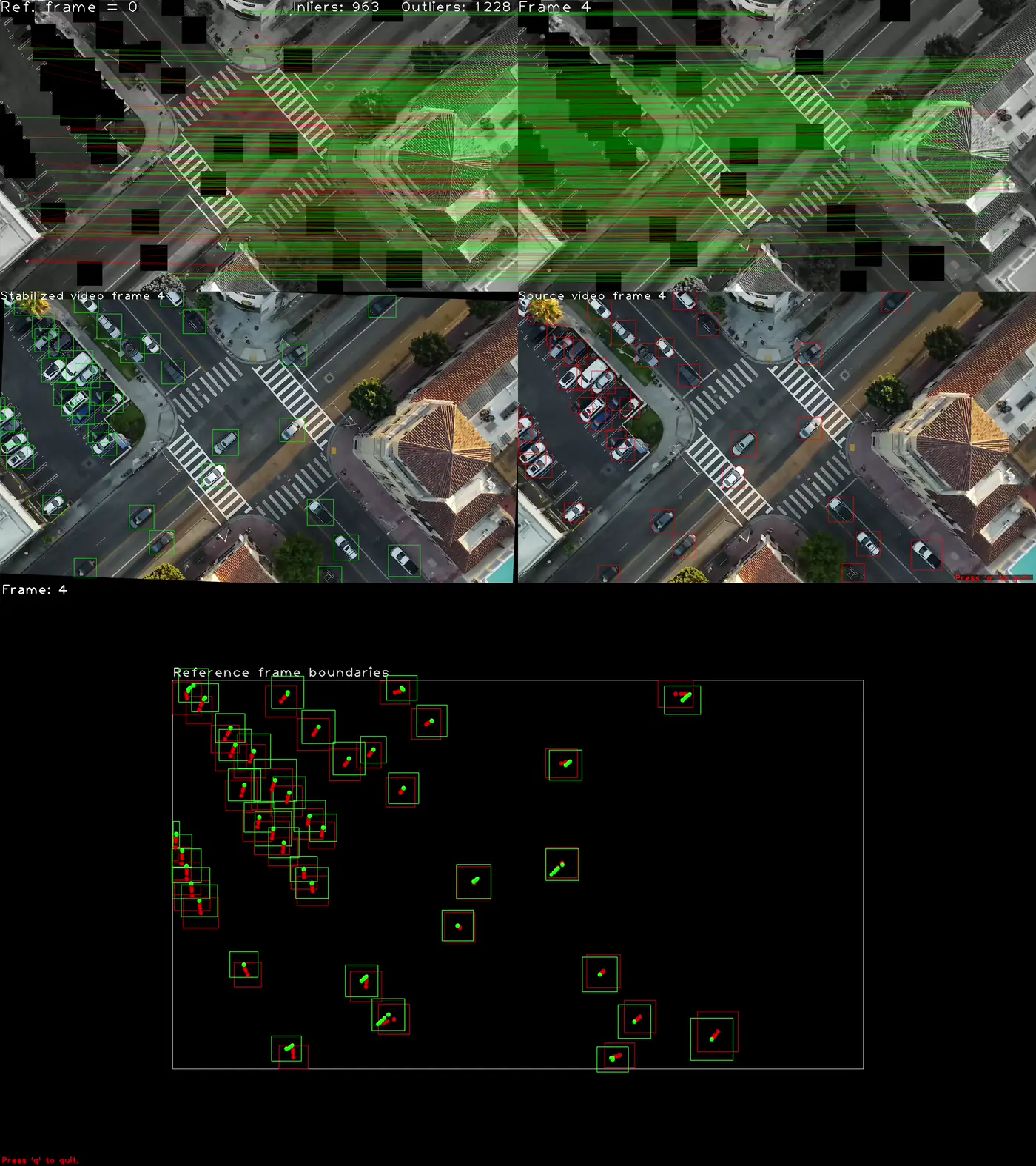

# Stabilize the video against frame 0, saving the result and a side-by-side visualization
stabilo video data/video.mp4 --save --save-viz --output data/out/

# Stabilize the vehicle trajectories, using the same boxes as exclusion masks
stabilo tracks data/video.mp4 --save --save-viz --output data/out/

Both write into the git-ignored data/out/, so you can diff your results against the reference files committed in data/ without overwriting them. Run stabilo -h, stabilo video -h, or stabilo tracks -h for the full option list.

Feature Detectors and Matchers

Stabilo ships classical OpenCV detectors and learning-based detectors/matchers from kornia as core functionality. The learning-based options download pretrained weights on first use (see Installation) and benefit from a GPU (--device cuda or --device mps).

detector_name	Type	Descriptor	Compatible matchers	Speed (CPU)	Rotation invariant	Memory	Acceleration
orb (default)	classical, binary	256-bit	bf, flann	very fast	✅	low	OpenCV CUDA (--gpu)
sift	classical, float	128-d	bf, flann	medium	✅	low	—
rsift	classical, float	128-d (RootSIFT)	bf, flann	medium	✅	low	—
brisk	classical, binary	512-bit	bf, flann	fast	✅	low	—
kaze	classical, float	64-d	bf, flann	slow	✅	low	—
akaze	classical, binary	486-bit	bf, flann	fast	✅	low	—
xfeat	learned, sparse	64-d float	bf, flann	fast	❌	low	torch (--device)
disk	learned, sparse	128-d float	bf, flann, lightglue	medium	❌	high	torch (--device)
dedode	learned, sparse	256-d float	bf, flann, lightglue	slow	❌	high	torch (--device)
keynet	learned det. + HardNet desc.	128-d float	bf, flann, lightglue	medium	✅	high	torch (--device)
loftr	learned, detector-free	dense matching	built-in (matcher ignored)	slow	❌	very high	torch (--device)

Three matchers are available: bf (brute force) and flann work with every detector, while the learned lightglue pairs with disk, dedode, and keynet. loftr is detector-free: it matches an image pair directly, so matcher_name and filter_type are ignored. Full details in docs/usage.md.

Important

Two caveats apply to the learning-based detectors. They are worth understanding before you pick one.

• Rotation. xfeat, disk, dedode, and loftr are upright models: matching collapses once the current frame is rotated more than roughly 30° from the reference frame. Footage with large in-plane rotation (an orbiting or yawing drone, for example) needs a classical detector or keynet, which estimates a keypoint orientation. This is a property of the pretrained models, not of stabilo.
• Memory. They are far hungrier than the classical detectors, and cost grows with the processed frame size. At the default --downsample-ratio 0.5, a 4K frame is still 2 MP, which can exhaust system memory; loftr is the worst offender because its cost grows quadratically with the pixel count. Lower --downsample-ratio for large inputs. Stabilo warns when the processed frame size looks risky, but does not cap it. See Choosing a downsample ratio.

📋 Full Feature Overview

• Video stabilization: warp every frame onto a chosen anchor frame (stabilo video ... -rf 100) with a projective or affine model (--transformation-type affine). See Library Usage.
• Trajectory stabilization: transform per-frame detections or tracks into the reference coordinate system (stabilo tracks ... --boxes-enc xywha), reading and writing yolo, pascal, coco, xywha, or four encodings.
• Exclusion masks: suppress keypoints on dynamic objects, in five geometries fed by seven input encodings (--mask-enc yolo|pascal|coco|xywha|four|polygon|circle), with an adjustable safety margin (--mask-margin-ratio 0.15). Disable with --no-mask. See Masking behaviour.
• Classical detectors: ORB, SIFT, RootSIFT, BRISK, KAZE, AKAZE (--detector-name rsift), with BF or FLANN matching (--matcher-name flann) and cross-check, Lowe's ratio, or distance filtering (--filter-type ratio).
• Learning-based detectors: XFeat, DISK, DeDoDe, KeyNet, and the detector-free LoFTR via kornia (--detector-name disk), optionally paired with the learned LightGlue matcher (--matcher-name lightglue). Pretrained weights download once into torch's cache and are reused offline. Mind the rotation and memory caveats above; pair them with a lower --downsample-ratio.
• Robust estimation: MAGSAC++ by default, plus DEGENSAC, GC-RANSAC, LO-RANSAC, PROSAC, RHO, LMEDS, RANSAC (--ransac-method 36), with tunable threshold, iterations, and confidence (--ransac-epipolar-threshold 1.5). See RANSAC methods.
• Pre-processing: CLAHE contrast enhancement (--clahe) and detection-time downsampling for speed (--downsample-ratio 0.25), with keypoints rescaled back to full resolution.
• Acceleration: OpenCV CUDA for the classical pipeline (--gpu, see docs/cuda.md) and CUDA/MPS/CPU for the learned models (--device mps).
• Visualization: live or recorded side-by-side rendering of matches, inliers, masks, and box trajectories (--viz, --save-viz, --no-lines, --tail-length 60). See Visualisation mode.
• Benchmarking: benchmark=True falls back to the identity matrix and silences warnings for clean batch sweeps; Stabilo-Optimize 🎯 wraps this into a ground-truth-free evaluation.
• Threshold analysis: scripts/find_threshold_models.py fits the max_features to detector-threshold models used by BRISK, KAZE, and AKAZE, so detectors can be compared at equal keypoint budgets.

🚀 Planned Enhancements

• Bi-directional Matching: Implementing bi-directional matching to enhance the robustness of keypoint matching.
• Additional Feature Detectors: Adding support for more feature detectors and matchers to provide users with a wider range of options for stabilization.

🔗 Related Projects

Stabilo integrates with and complements several specialized tools:

• Geo-trax 🚀 — End-to-end framework for extracting georeferenced vehicle trajectories from drone imagery. Uses Stabilo as its core stabilization engine to align video frames and vehicle tracks to a common reference frame.

• Stabilo-Optimize 🎯 — Benchmarking and hyperparameter optimization framework for Stabilo. Evaluates stabilization performance through ground truth-free assessment using random perturbations. Used to fine-tune Stabilo parameters.

• HBB2OBB 📦 — Converts horizontal bounding boxes to oriented bounding boxes using SAM segmentation models. Can be used alongside Stabilo when object orientation is needed for downstream analysis.

Configuration

Every tunable parameter lives in one self-contained YAML file, stabilo/cfg/default.yaml, grouped by stage: feature detection, matching and filtering, transformation estimation, exclusion masks, pre-processing, hardware acceleration, detector-specific settings, and diagnostics. The shipped defaults are tuned for high-altitude bird's-eye-view drone imagery.

The same keys are accepted as Stabilizer(**kwargs) arguments, as CLI flags, and as entries in a custom YAML file:

stabilo video data/video.mp4 --save -o data/out/ --detector-name disk --matcher-name lightglue
stabilo video data/video.mp4 --save -o data/out/ --custom-config custom.yaml

Precedence is explicit CLI flags > custom config file > built-in defaults: a value in --custom-config fills in anything you didn't pass on the command line, but an explicit CLI flag always wins.

Two independent, mutually exclusive acceleration knobs are worth calling out:

Option	Applies to	Notes
gpu / --gpu	classical detectors	OpenCV CUDA for detection, matching, and warping. Needs a CUDA-enabled OpenCV build (docs/cuda.md); currently orb only. RANSAC always runs on CPU.
device / --device	learning-based detectors/matchers	PyTorch device (auto, cpu, cuda, mps). auto picks cuda > mps > cpu. Ignored by the classical detectors.

⚙️ Inspect, copy, and customize the config

Manage the bundled configuration with the stabilo config command:

stabilo config show                 # print the default configuration
stabilo config copy                 # write an editable copy to ./custom.yaml
stabilo config copy -o ~/myproject  # write it somewhere else

Copy it, edit it, then pass it with --custom-config:

stabilo config copy
# edit custom.yaml ...
stabilo video data/video.mp4 --save -o data/out/ --custom-config custom.yaml

A full description of every key, with valid ranges, is in docs/usage.md.

Library Usage

from stabilo import Stabilizer

stabilizer = Stabilizer()                            # see Configuration for kwargs

stabilizer.set_ref_frame(ref_frame, ref_mask)        # anchor frame (+ optional exclusion mask)
stabilizer.stabilize(cur_frame, cur_mask)            # register any other frame against it

stabilized_frame = stabilizer.warp_cur_frame()       # the warped frame
stabilized_boxes = stabilizer.transform_cur_boxes()  # the transformed boxes
matrix = stabilizer.get_cur_trans_matrix()           # current -> reference transform

Masks and boxes accept five formats: xywh (axis-aligned), xywha (oriented), four (four corner points), polygon, and circle.

🧩 More examples: oriented boxes, polygons, and circles

import numpy as np

# Oriented bounding boxes (OBBs): [x_center, y_center, width, height, angle_degrees]
obb_boxes = np.array([
    [100, 150, 50, 30, 45],
    [200, 200, 60, 40, 90],
])
stabilizer.set_ref_frame(ref_frame, obb_boxes, box_format='xywha')
stabilizer.stabilize(cur_frame, cur_boxes, box_format='xywha')

# Convert the result to another format on the way out
transformed = stabilizer.transform_cur_boxes(out_box_format='four')

# Polygon masks: flattened [x1, y1, ..., xN, yN] rows, or (N, 2) point arrays
polygon_masks = np.array([
    [60, 60, 120, 60, 120, 120, 60, 120],
    [200, 200, 260, 210, 240, 270, 190, 260],
])
stabilizer.set_ref_frame(ref_frame, polygon_masks, box_format='polygon')

# Circular masks: [x_center, y_center, radius]
circle_masks = np.array([
    [120, 120, 25],
    [360, 240, 40],
])
stabilizer.stabilize(cur_frame, circle_masks, box_format='circle')

# Transform an arbitrary pixel coordinate into reference-frame coordinates
ref_point = stabilizer.get_cur_trans_matrix() @ np.array([x, y, 1])

polygon and circle are masking-only; they cannot be transformed back out. Full format specifications are in docs/usage.md.

When a CLI command runs, stabilo performs a best-effort check for a newer release on PyPI and prints a one-line notice if one is available. Set STABILO_DISABLE_UPDATE_CHECK=1 to disable it.

Documentation

• docs/usage.md: detailed usage guide covering the workflow, mask formats, every configuration key, the detector and matcher reference, RANSAC methods, visualization, benchmarking, and the CLI.
• docs/cuda.md: building OpenCV with CUDA and enabling --gpu.
• scripts/README.md: the threshold-analysis research tool.

Citing This Work

If you use Stabilo in your research, software, or product, please cite the following resources appropriately:

1. Preferred Citation: Please cite the associated article for any use of the Stabilo package, including research, applications, and derivative work:

   @article{fonod2025advanced,
     title = {Advanced computer vision for extracting georeferenced vehicle trajectories from drone imagery},
     author = {Fonod, Robert and Cho, Haechan and Yeo, Hwasoo and Geroliminis, Nikolas},
     journal = {Transportation Research Part C: Emerging Technologies},
     volume = {178},
     pages = {105205},
     year = {2025},
     publisher = {Elsevier},
     doi = {10.1016/j.trc.2025.105205},
     url = {https://doi.org/10.1016/j.trc.2025.105205}
   }

2. Repository Citation: If you reference, modify, or build upon the Stabilo software itself, please also cite the corresponding Zenodo release:

   @software{fonod2026stabilo,
     author = {Fonod, Robert},
     license = {MIT},
     month = jul,
     title = {Stabilo: A Comprehensive Python Library for Video and Trajectory Stabilization with User-Defined Masks},
     url = {https://github.com/rfonod/stabilo},
     doi = {10.5281/zenodo.12117092},
     version = {1.4.0},
     year = {2026}
   }

Contributing

Contributions from the community are welcome! If you encounter any issues or have suggestions for improvements, please open a GitHub Issue or submit a pull request.

License

This project is distributed under the MIT License. See the LICENSE file for more details.
