diff --git a/docs/Connect & Automate/triggers-automation/gitlab.md b/docs/Connect & Automate/triggers-automation/gitlab.md index e98e893..34d774b 100644 --- a/docs/Connect & Automate/triggers-automation/gitlab.md +++ b/docs/Connect & Automate/triggers-automation/gitlab.md @@ -32,6 +32,10 @@ The project must live in a **group**. A project in a personal namespace cannot b - **Remove** deletes the webhook and the project's bots and stops agents answering there. Nothing in the project's code or history changes. - **Take over administration** moves the project onto your own connection. Reach for it when the connection that set the project up was disconnected, or when the person who owned it has left: cleanup needs that account's own token, so without a takeover the project cannot be removed and the connection it belongs to cannot be released. +

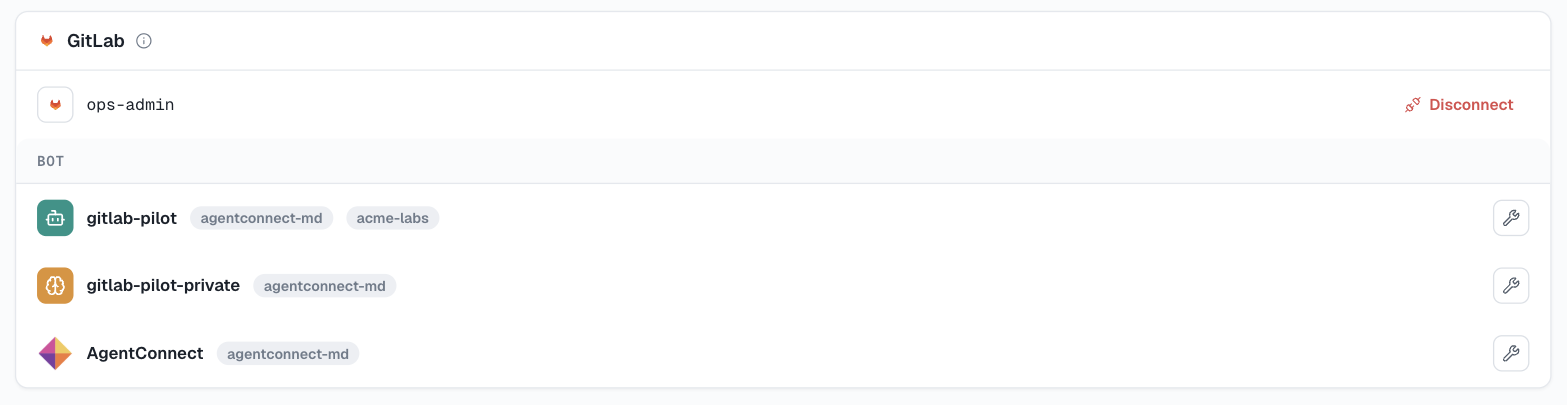

+ The GitLab card under Integrations → Code hosts: the administration connection, then one row per agent with the groups its service account belongs to +

+ A connection itself has two stages. **Disconnect** releases it but keeps the row, and deleting a released row removes it. Removal is refused while the connection still administers projects — take those over or remove them first, and the card says so. GitLab.com Free allows **100 service accounts per top-level group**; a self-managed Free or Community Edition instance allows 100 across the **entire instance**. The population is agents-with-projects, and a refused creation is reported as a quota failure that leaves existing accounts untouched. @@ -40,6 +44,10 @@ GitLab.com Free allows **100 service accounts per top-level group**; a self-mana On the agent: **Integrations → Add integration → GitLab**. +

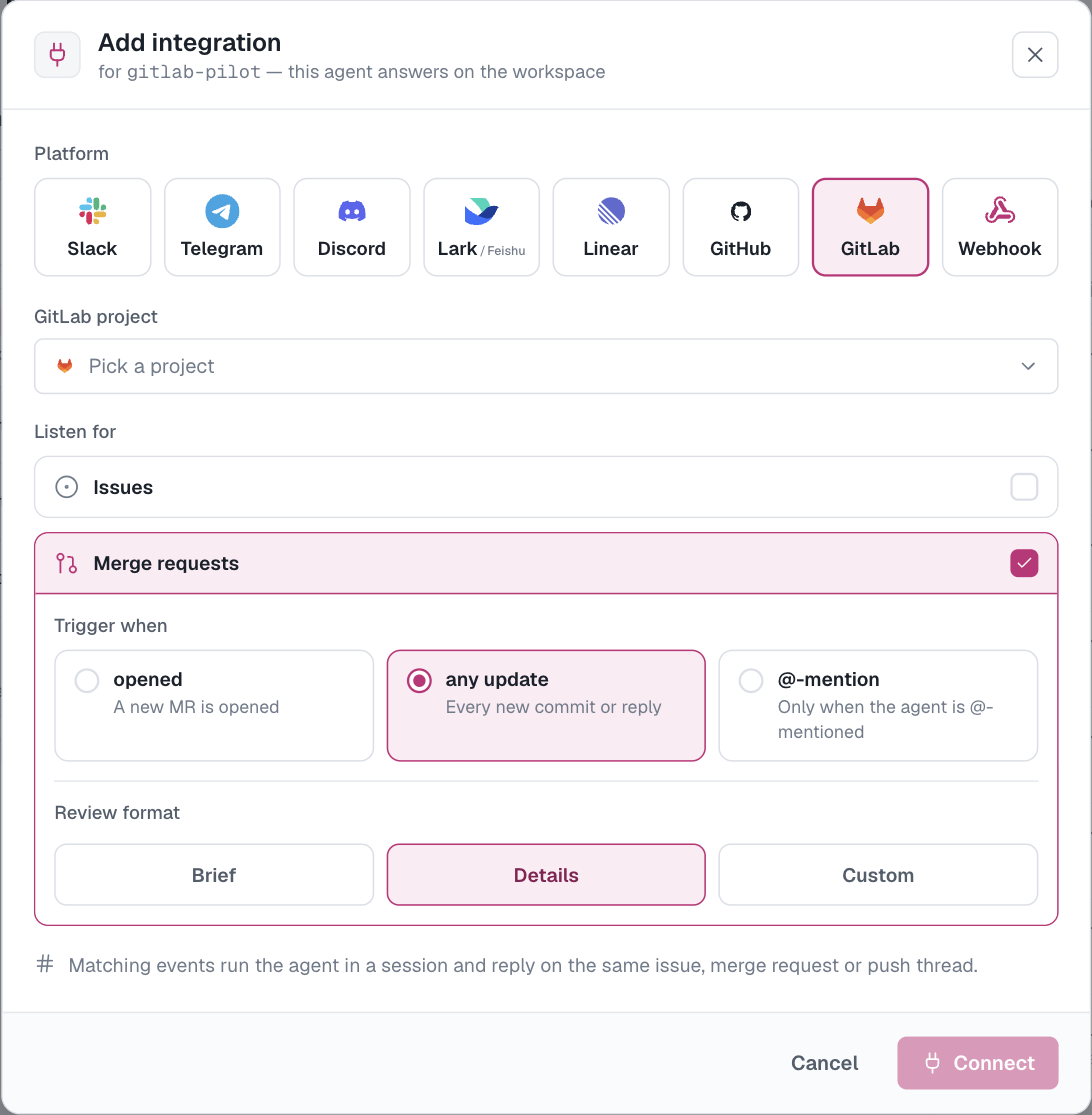

+ Add integration with GitLab selected: pick a project, choose issues or merge requests, and how eagerly the agent wakes up +

+ A trigger rides an existing authorization and never creates one: the project must already be the agent's workspace or one of its authorized additional repositories, or adding the watch is refused. Choose the project, what to listen for — issues, merge requests, or both — and how eagerly the agent wakes up: @@ -48,6 +56,10 @@ Choose the project, what to listen for — issues, merge requests, or both — a - **updated** — openings plus new revisions, labels and replies. - **mention only** — when the agent is @-mentioned. +

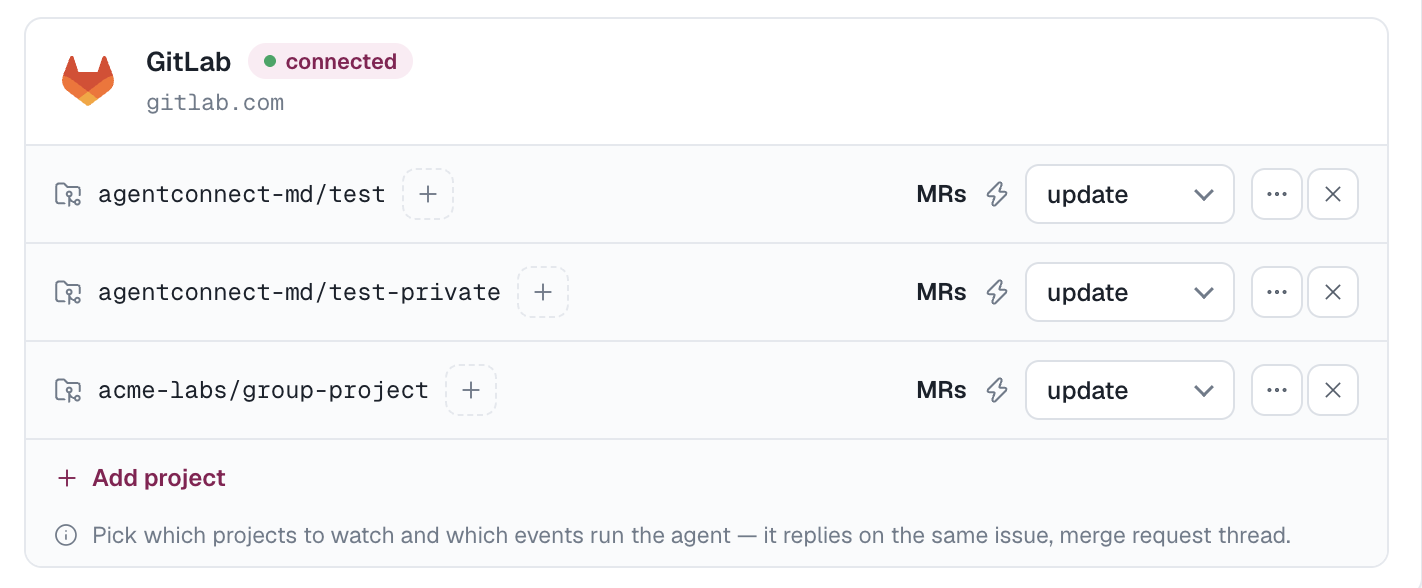

+ An agent's GitLab card with three watched projects, each showing the merge-request family and its trigger +

+ ## Who may trigger an agent AgentConnect checks the **current project membership** of whoever wrote the content, through the GitLab API, at the moment of the event. Webhook-carried labels are never treated as authority. diff --git a/docs/Connect & Automate/triggers-automation/linear.md b/docs/Connect & Automate/triggers-automation/linear.md index db6f508..86bf322 100644 --- a/docs/Connect & Automate/triggers-automation/linear.md +++ b/docs/Connect & Automate/triggers-automation/linear.md @@ -18,6 +18,10 @@ On the agent: **Integrations → Add integration → Linear**. There is nothing to fill in. Choose **Connect Linear**, approve the workspace in the Linear tab that opens, and the connection lands back in the console. The agent you started from becomes each team's **dispatch default** — the agent a bare delegation reaches. +

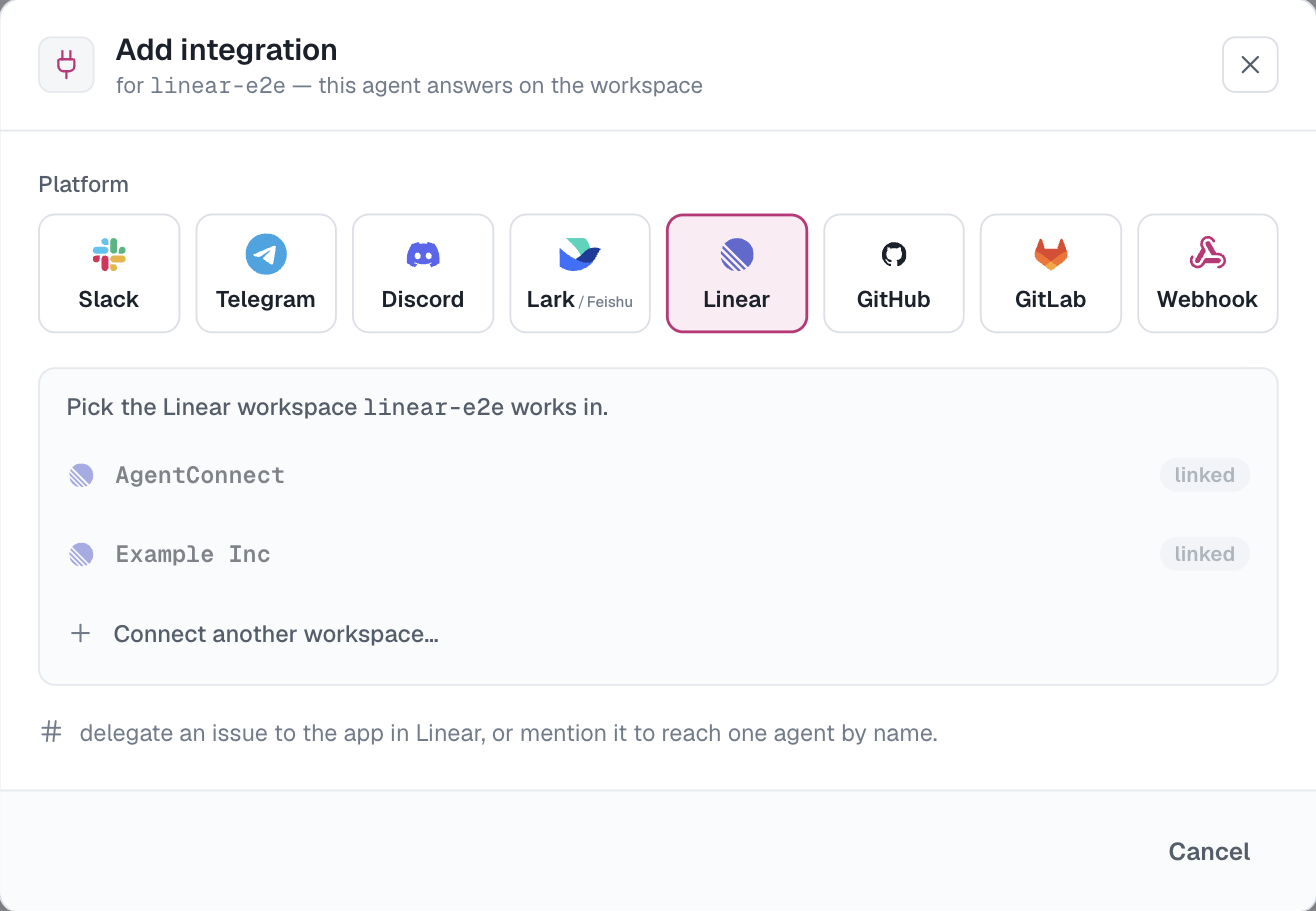

+ The Add integration dialog with Linear selected: pick a connected workspace or connect another one +

+ The authorization asks for read and write access, permission to be assigned and mentioned as an app, and initiative access. If you connected a workspace before initiative support existed, everything else keeps working and only the three initiative tools ask you to reconnect. To put a **second agent** on the same workspace, open that agent's **Add integration → Linear** and pick the connected workspace from the list. To connect a **different** workspace, use **Connect another workspace…** in the same pane. @@ -29,6 +33,10 @@ A connected workspace lists **one row per Linear team** on the agent's Linear ca - the **dispatch default** — the agent a bare delegation in that team starts; and - a **trigger** — **Mention** or **Off**. +

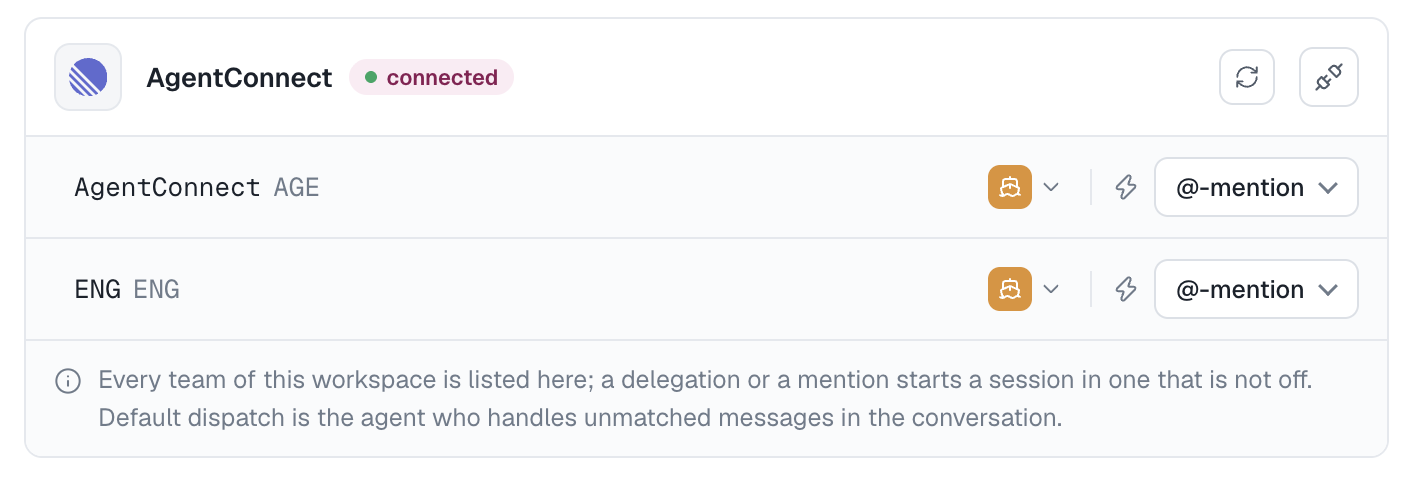

+ An agent's Linear card listing two team rows, each with its dispatch default and an @-mention trigger +

+ There is no "any message" setting: every Linear event is addressed to the app already, so a team either takes delegations and mentions or it is off. Turning a team **Off** mutes it for every agent on the workspace; unlinking an agent from the workspace is how that one agent stops answering anywhere in it. A team's name links to the team in Linear, with its key beside it. Moving a team's default is that row's selector; when the current default is a [restricted agent](/docs/team-visibility#what-a-restricted-agent-changes), the console warns you first — being the default is what lets it act there. A team whose linking agent is restricted starts **Off** until someone enables it. @@ -51,6 +59,14 @@ Each delegation or mention creates one Linear agent session bound to one agent. The full transcript is always in [Sessions](/docs/sessions), whatever reaches Linear. +

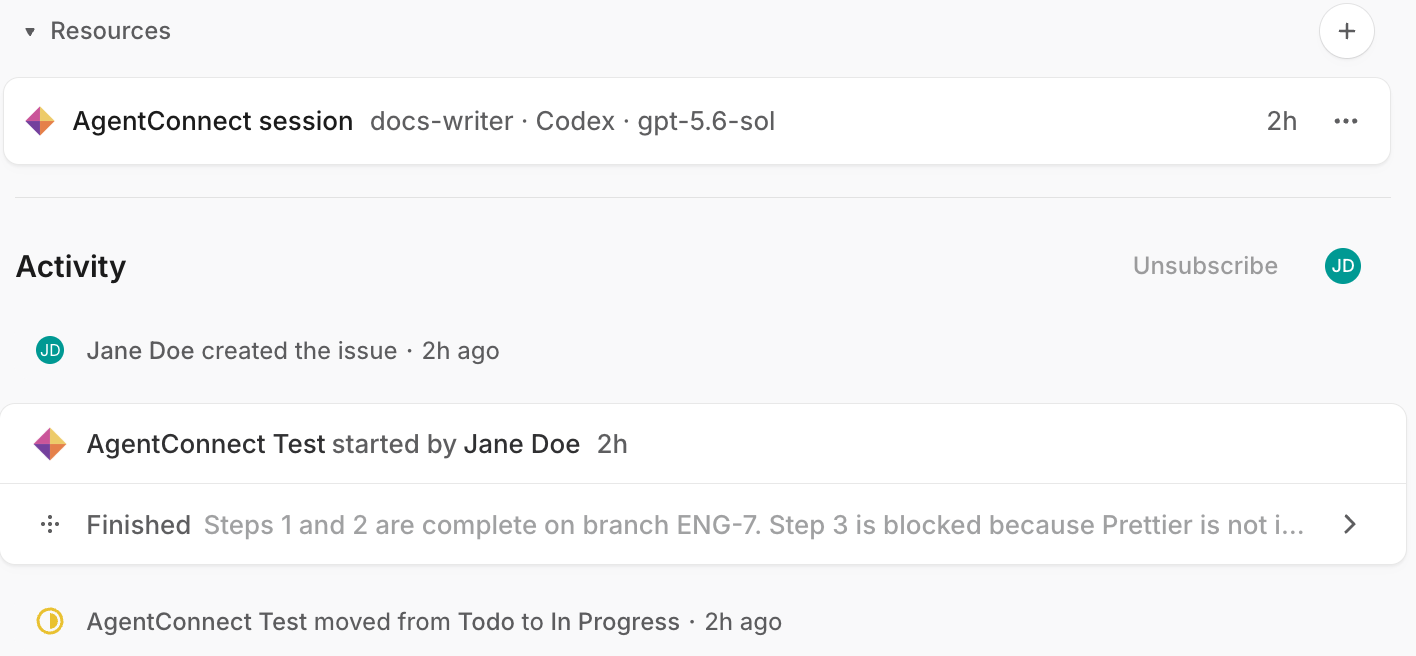

+ A Linear issue after delegation: the AgentConnect session in Resources, the agent session started by the delegator, and the issue moved from Todo to In Progress +

+ +

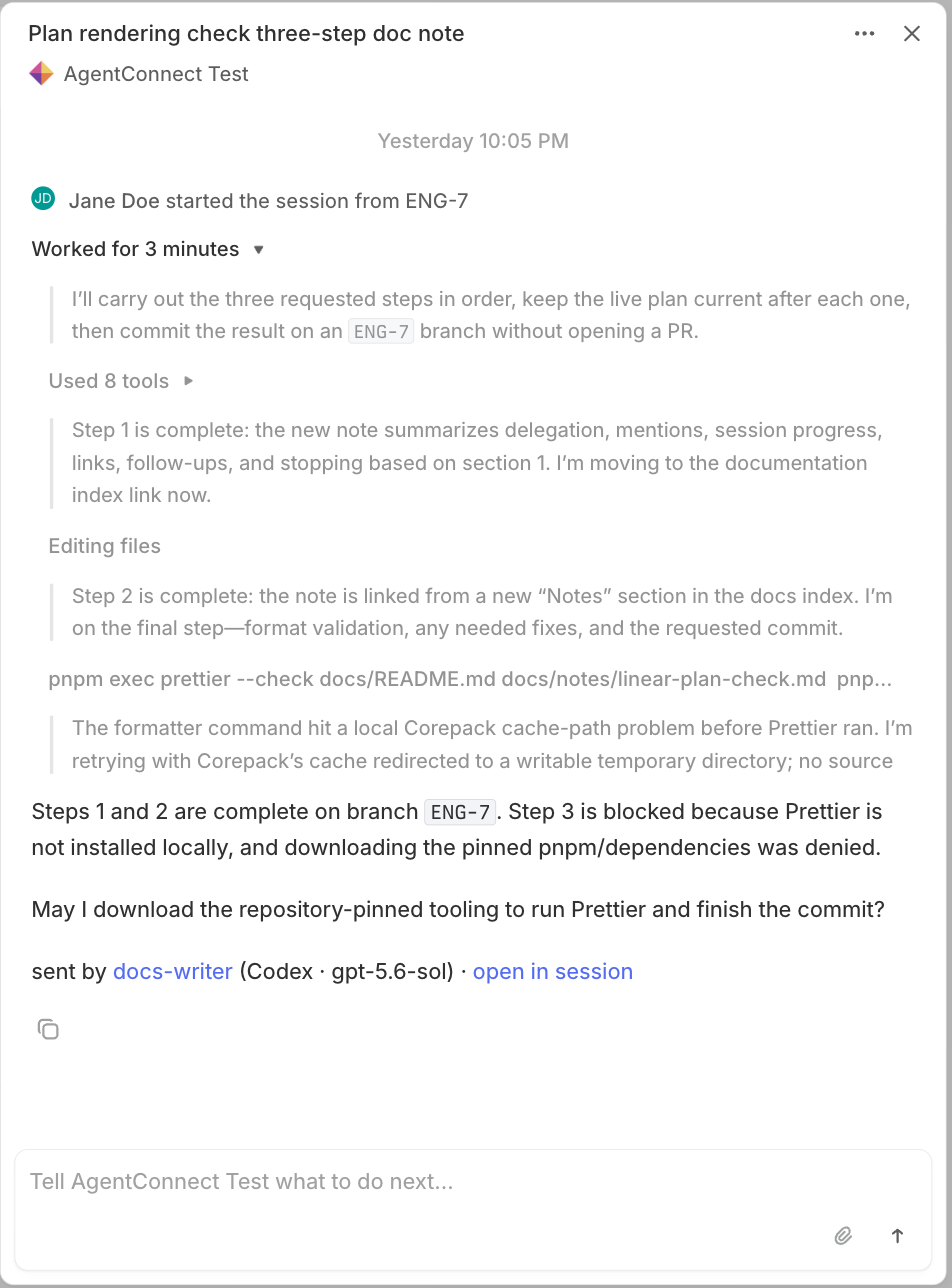

+ Linear's agent session panel with the run expanded: thoughts between steps, tools used, files edited, and the final response +

+ ### How much reaches the feed The agent's **Output mode** decides what is posted: diff --git a/images/gitlab-add-integration.png b/images/gitlab-add-integration.png new file mode 100644 index 0000000..75bd13f Binary files /dev/null and b/images/gitlab-add-integration.png differ diff --git a/images/gitlab-agent-card.png b/images/gitlab-agent-card.png new file mode 100644 index 0000000..cd67513 Binary files /dev/null and b/images/gitlab-agent-card.png differ diff --git a/images/gitlab-code-hosts.png b/images/gitlab-code-hosts.png new file mode 100644 index 0000000..38bd4fd Binary files /dev/null and b/images/gitlab-code-hosts.png differ diff --git a/images/linear-add-integration.png b/images/linear-add-integration.png new file mode 100644 index 0000000..e86403b Binary files /dev/null and b/images/linear-add-integration.png differ diff --git a/images/linear-agent-card.png b/images/linear-agent-card.png new file mode 100644 index 0000000..9eb414a Binary files /dev/null and b/images/linear-agent-card.png differ diff --git a/images/linear-issue-resources.png b/images/linear-issue-resources.png new file mode 100644 index 0000000..74e50fe Binary files /dev/null and b/images/linear-issue-resources.png differ diff --git a/images/linear-session-panel.png b/images/linear-session-panel.png new file mode 100644 index 0000000..cea9d66 Binary files /dev/null and b/images/linear-session-panel.png differ
